Viewcast Osprey 450e Rev. A Video Capture Card 94-00263-02
SKU:
7GC1511
Availability:
In Stock
Free shipping
$905.00
Secure checkout with:
Brand:
Osprey
Overview
REVIEWS

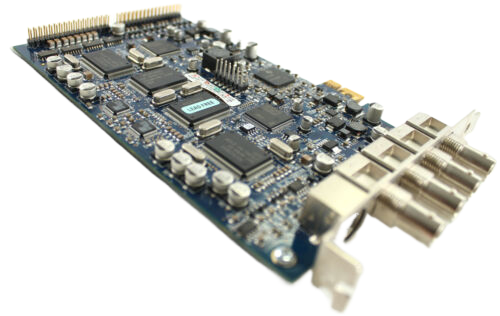

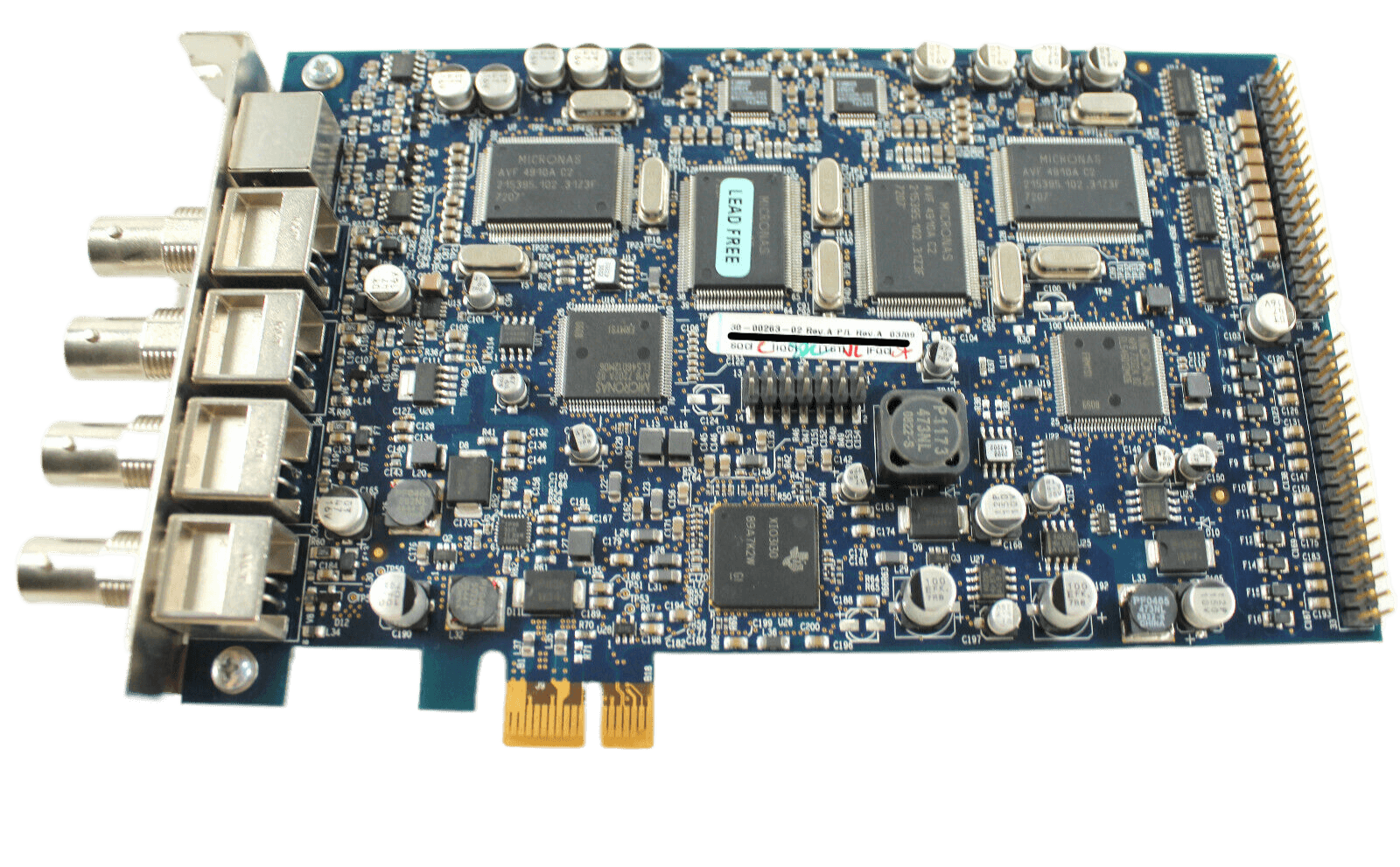

The Osprey 450e is a four-channel audio/video capture card designed for broadcasters, government entities, digital signage integrators, and global OEM system integrators. This PCI Express® capture card can input composite video and balanced and unbalanced audio. The Osprey 450e can process four channels of full-motion (30 fps) video and audio from four NTSC or PAL analog sources. Multiple cards may be used in a single system chassis. The Osprey 450e is compatible with the Osprey SDK for development of media applications supporting Direct
Show. The capture card has optional support for S-Video and component video and balanced stereo audio input. This input requires the Osprey 450e A/V option (Part Number 95-00459), Osprey 450e Balanced Audio Panel (Part Number 95-00462) and/or Component Video Panel (Part Number 95-00463). The Osprey 450e supports Windows operating systems. Also available is the Osprey 450e/440 Breakout Panel (Part Number 95-00460) to bring out the composite and unbalanced stereo audio to a 1RU panel. This product is not field upgradeable to SimulStream.
Driver Support: Microsoft Direct
Show API Inputs:
Video: 4 composite (BNC x 4) (additional BNC x 12 optional) 4 Y/C (BNC x 8) (optional) 4 component (BNC x 12) (optional)
Audio: 4 unbalanced stereo (RCA x 8) 4 balanced (BNC x 3) (optional)
Video Format: NTSC/PAL
Connectivity: PCIe(x 1)
Slots: x 1, x 4, x 8, or x 16
Pre-Processing: Closed-caption extraction/rendering Logo/bitmap overlay Scaling, cropping, de-interlacing and inverse telecine Loss of video automatic test pattern generation with text overlay option
Dimensions: Full-height / half-length board 6.60 ” L x 4.38 ”H ( 16.77 cm L x 11.12 cm H)
Hardware Warranty: 1 year limited hardware warranty
System Requirements: Video capture requires intense bandwidth across the system bus, CPU, and memory. Use of DDR3 and CI express version 2.0 motherboard components are highly recommended. Multi-core processsors are recommended to run video applications.
