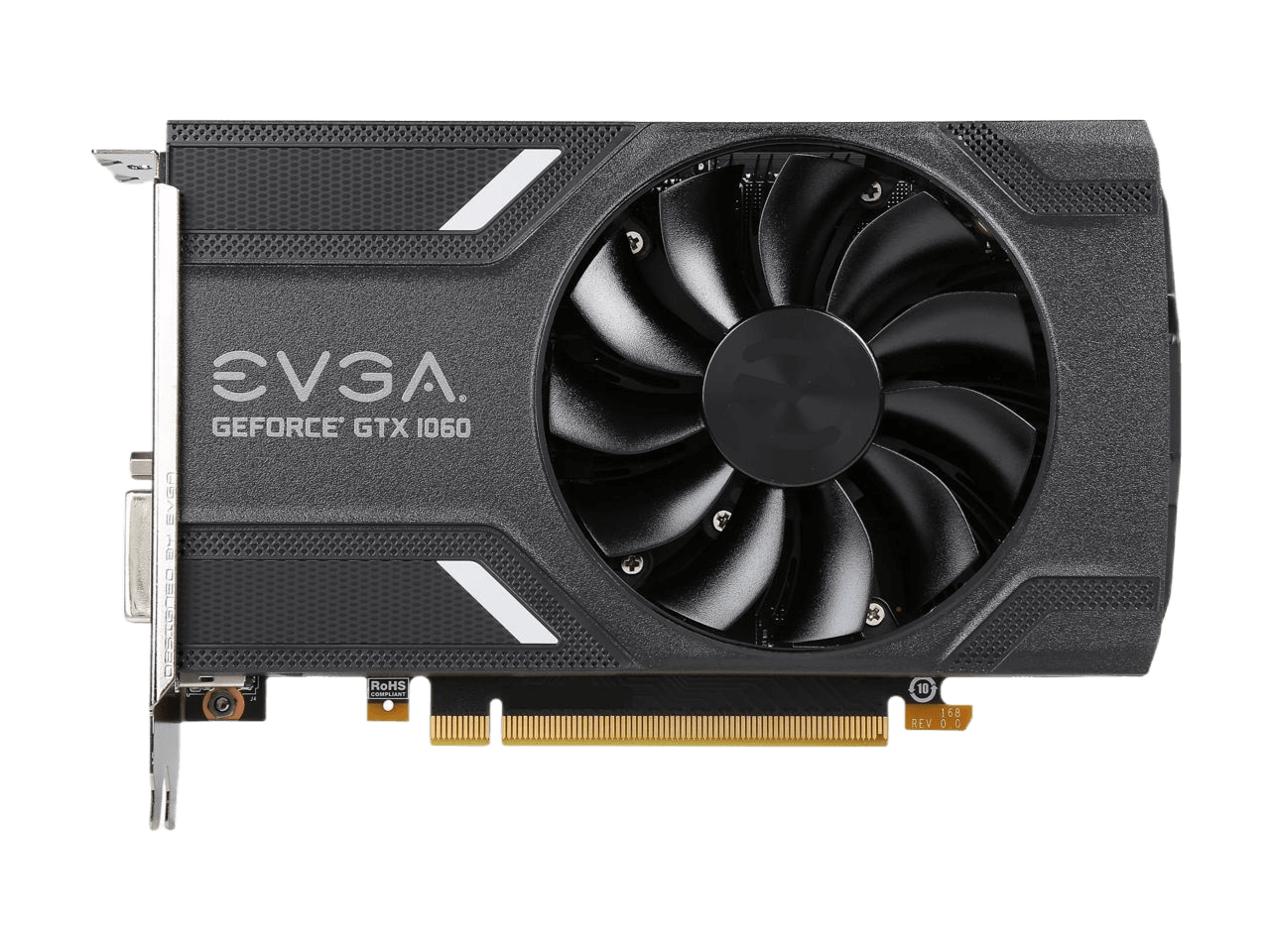

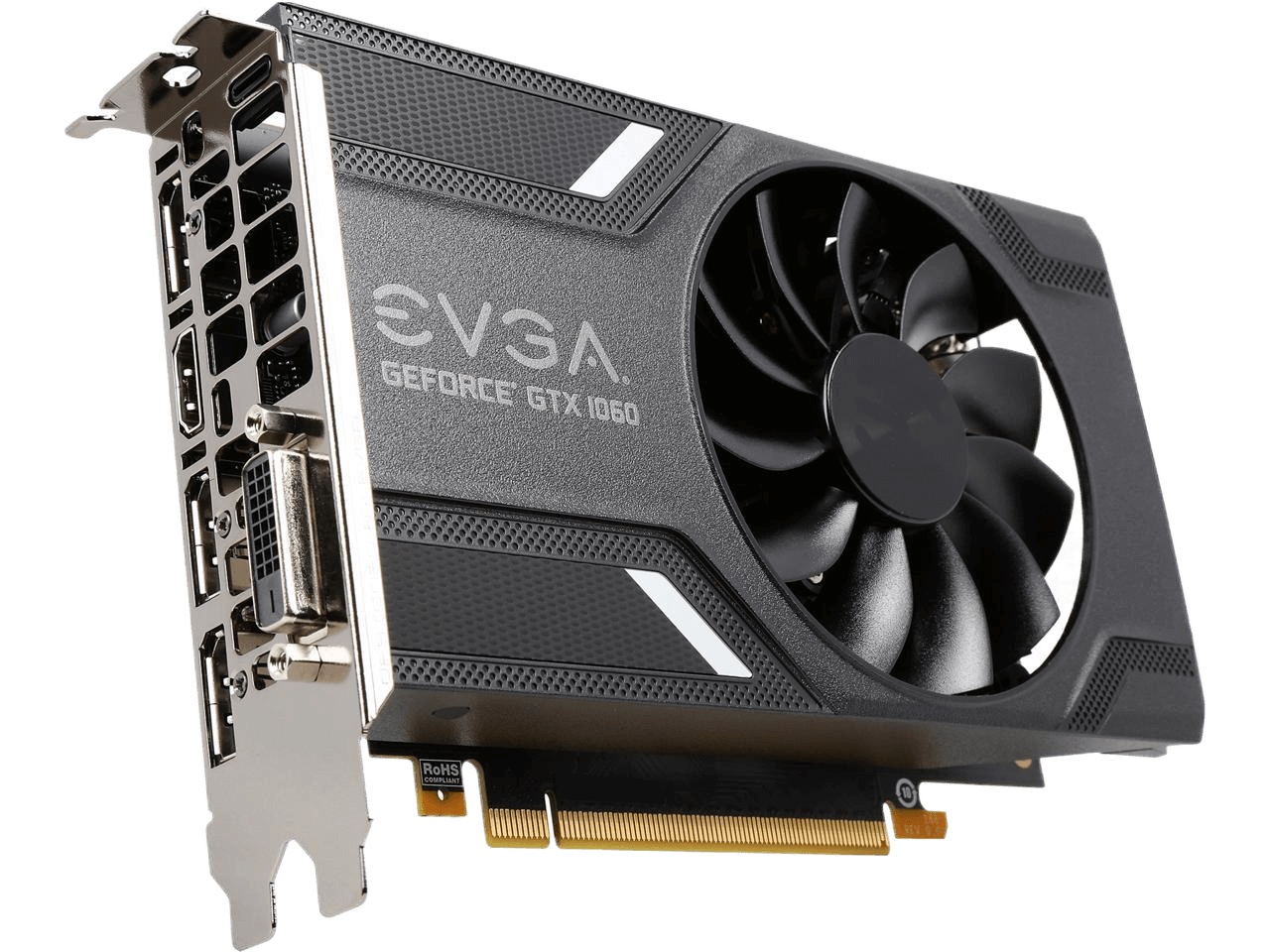

EVGA GeForce GTX 1060 GAMING ACX 2.0 (Single Fan) 3GB GDDR5 DX12 OSD Support (PXOC) Graphics Card 03G-P4-6160-KR
SKU:
7GC1822
Availability:
In Stock
Free shipping
$325.00
Secure checkout with:
Brand:
EVGA
Overview
SPECS
REVIEWS
| Brand | EVGA |
|---|---|
| Model | 03G-P4-6160-KR |
| Interface | PCI Express 3.0 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce GTX 10 Series |
| GPU | GeForce GTX 1060 |
| Core Clock | 1506 MHz |
| Boost Clock | 1708 MHz |
| CUDA Cores | 1152 |
| Effective Memory Clock | 8008 MHz |
|---|---|
| Memory Size | 3GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 |
|---|---|
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| DVI | 1 x Dual-Link DVI-D |
| Max Resolution | 7680 x 4320 |
|---|---|
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | ACX 2.0 Single Fan |
| Operating Systems Supported | Windows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit |
| Thermal Design Power | 120W |
| System Requirements | Minimum of a 400W power supply An available 6-pin PCI-E power connector Total Power Draw: 120 Watts |
| Power Connector | 6-Pin |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Features | NVIDIA GameStream Technology NVIDIA GSYNC Ready OpenGL 4.5 Support Simultaneous Multi-Projection VR Ready NVIDIA Ansel NVIDIA GPU Boost 3.0 Microsoft DirectX 12 Vulkan API PCI Express 3.0 Max Digital Resolution - 7680 x 4320 HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI Built for EVGA Precision XOC |
|---|
| Max GPU Length | 173 mm |
|---|---|
| Card Dimensions (L x H) | 6.80" x 4.38" |
| Slot Width | Dual Slot |
Model
Series:
GTX 10 Series
