  • 4x5
  • Active Electromagnetic Sensor
  • Serial/USB Interface
  • Backlit

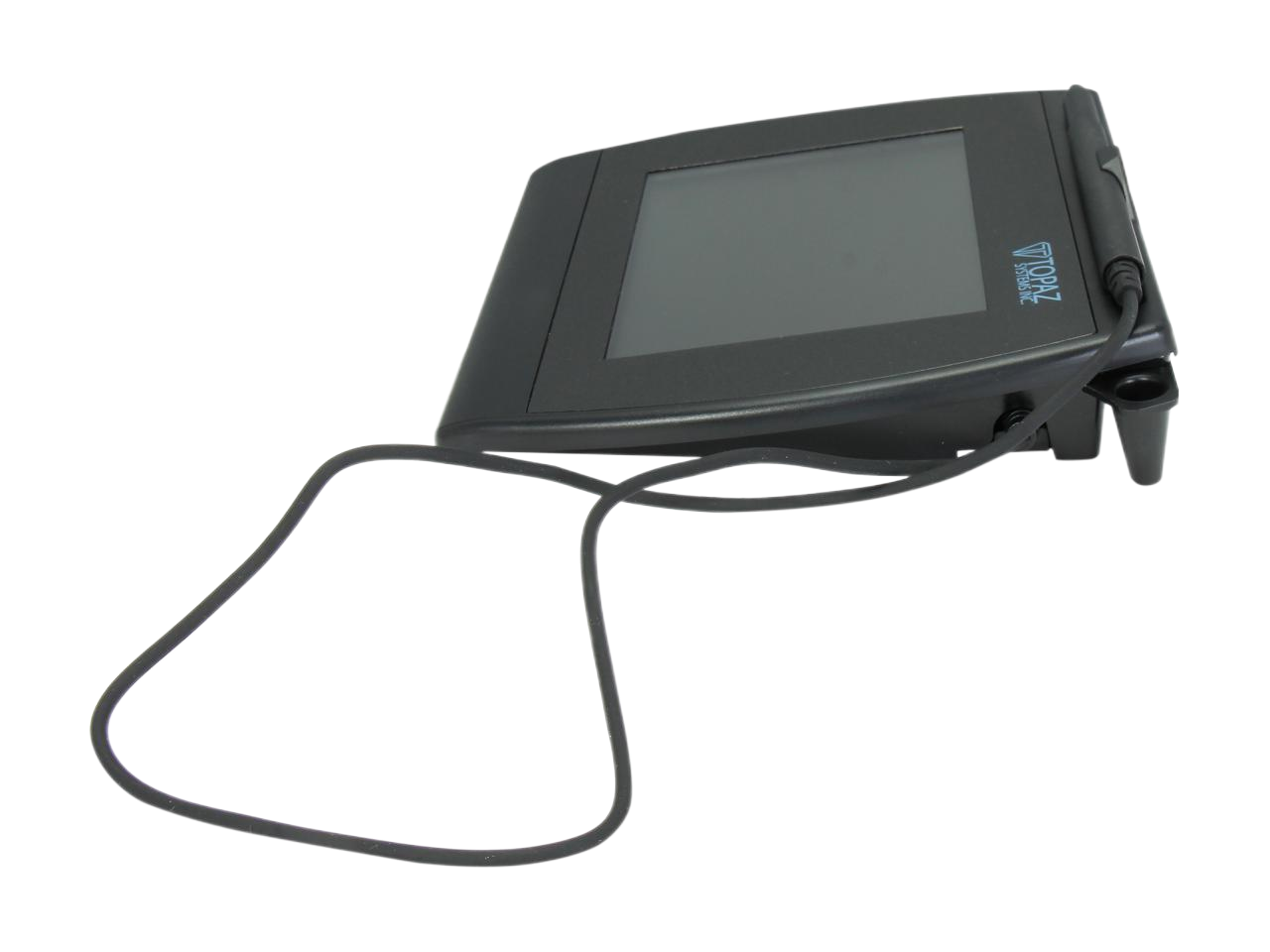

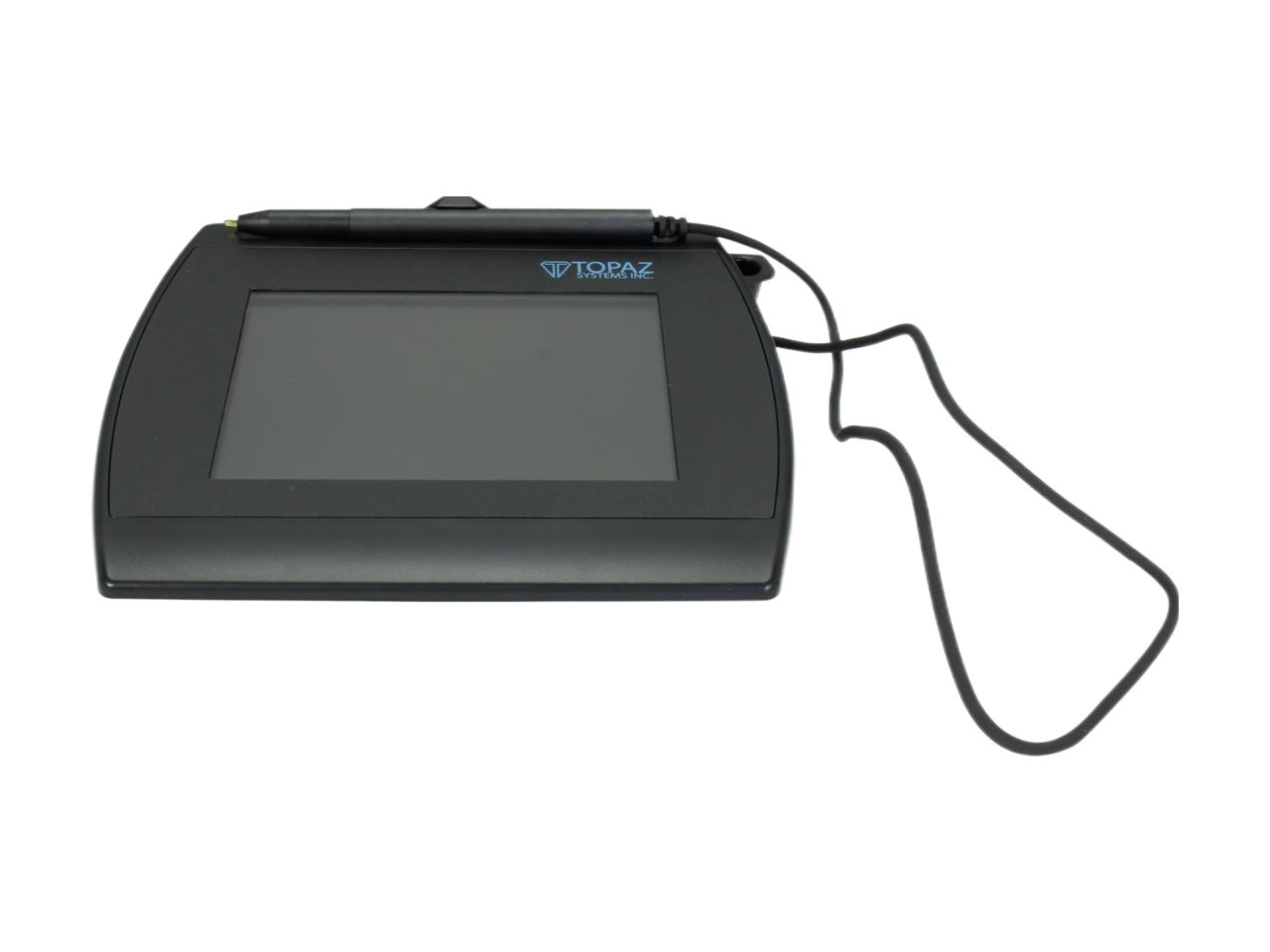

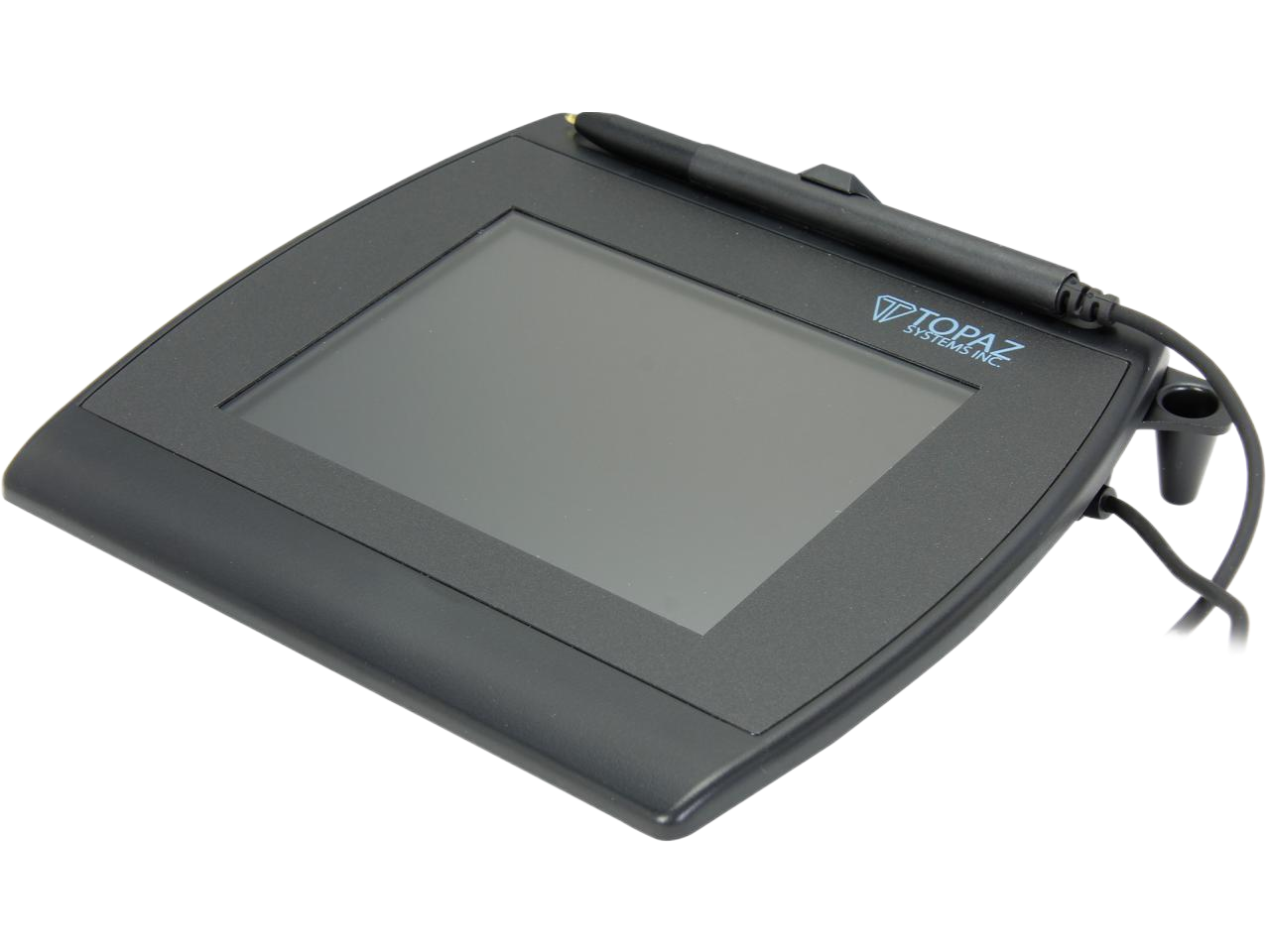

  • SignatureGem LCD 4 x 5 includes all the high-quality electronic signature capture features of Topaz signature pads with the added feature of a backlit LCD interactive display, allowing users to see "electronic ink" under the pen tip as they sign as well as navigate and display text and graphics. The large signing area and rugged tempered glass signing surface make this a versatile pad for the most demanding applications. Model T-LBK766-BHSB-R Sensor Type Active Electromagnetic Pen Type Active Energized Dimensions 7.25 x 6.1 x 1.56" (184 x 155 x 40mm) Signing Area 4.6 x 3.4" (17 x 86mm) Data Conversion Rate 377 points per second Resolution 410 true points per inch Support Updates are provided free of charge Authentication Capability Forensic-quality.

    Brand Topaz
    Series SignatureGem Interactive LCD Series
    Model SG LCD 4X5 HID-USB BackLit
    Part Number T-LBK766-BHSB-R
    Interfaces Dual Serial/USB
    Sensor Type Active Electromagnetic
    Pen Type Active Stylus
    Backlit Option Yes
    Signing Area Size 4.6 inches x 3.4 inches
    Resolution 410 Ppi

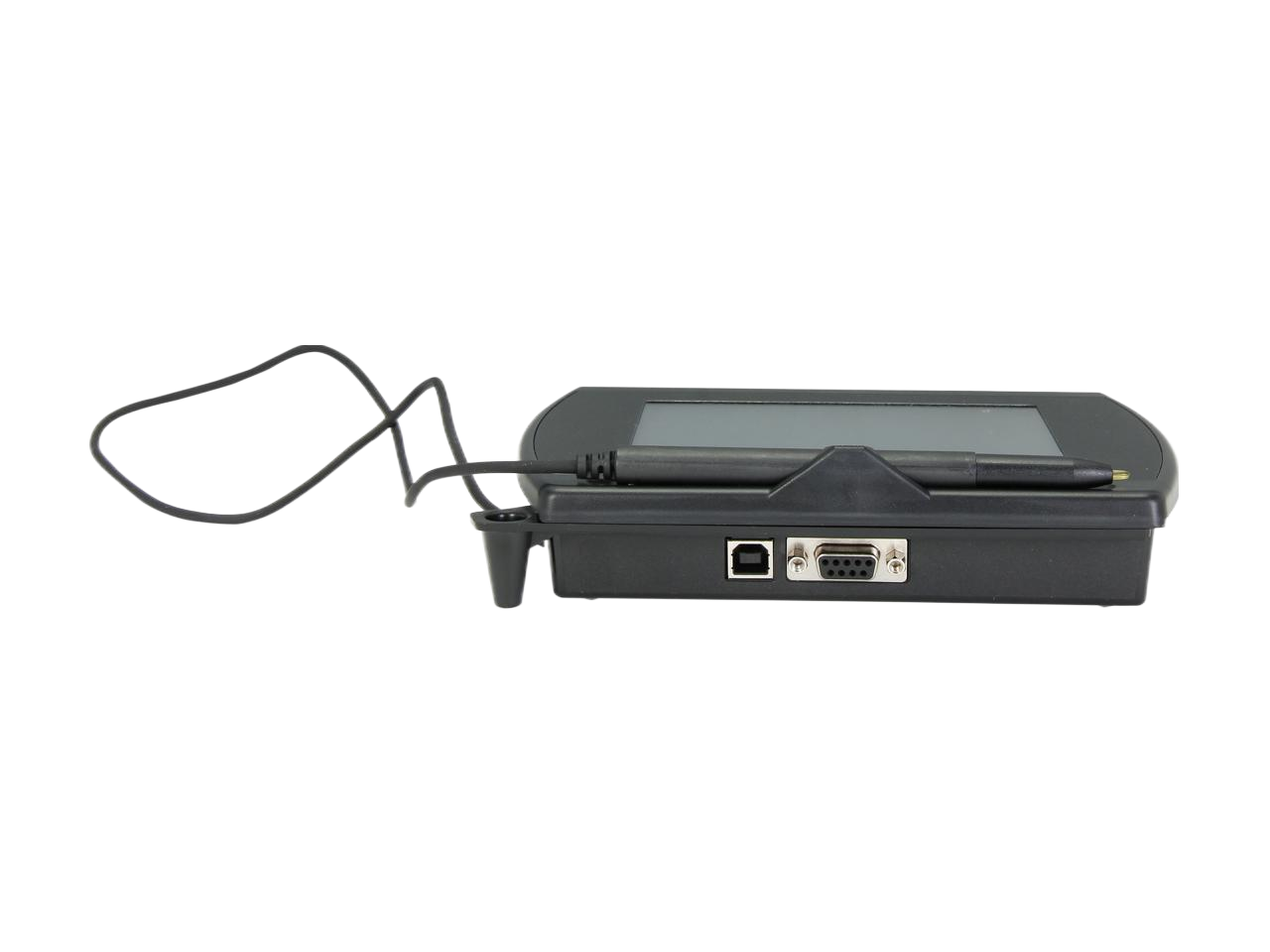

    Connectivity 4 pin USB Type AX1

    9 pin D-Sub (DB-9)
    Dimensions & Weight
    Dimensions 7.20" x 1.60" x 6.10"
    Features The Topaz Model T-L766 is a complete and versatile pen-input system for the capture of signatures used in countertop, desktop, or portable applications.

    The advantage of a Topaz LCD tablet is the ability to capture a digital signature with the ease and familiarity of ink-on-paper by use of "electronic ink" displayed under the pen tip as a user signs.

    The LCD can also be used to display text and graphics from the host computer and pen-tap "hot spots" allows users to navigate between multiple screens and forms, inputting information or checking preferred options.

    The large signing area and small size of the LCD 4x5 make it a great tool for capturing signatures in any environment where a large screen for graphics AR text are desired.

    The active electromagnetic pen is designed for a long life of over 30-million tip activation cycles, is tethered to the tablet to prevent misplacement, and when not in use can be kept in attached storage module.

    Active H-Area: 5 in
    Active V-Area: 3 in, 4 in

    Cable Form Factor: Integrated
    Bundled Software
    Bundled Software Adobe Acrobat , Microsoft Excel , SigPlus Pro Development Tools , Topaz SigAnalyze , Topaz SigCompare , Topaz SignMeIn , Topaz SigPlus Adjust , Topaz SigTool Imager , Topaz SigValid
