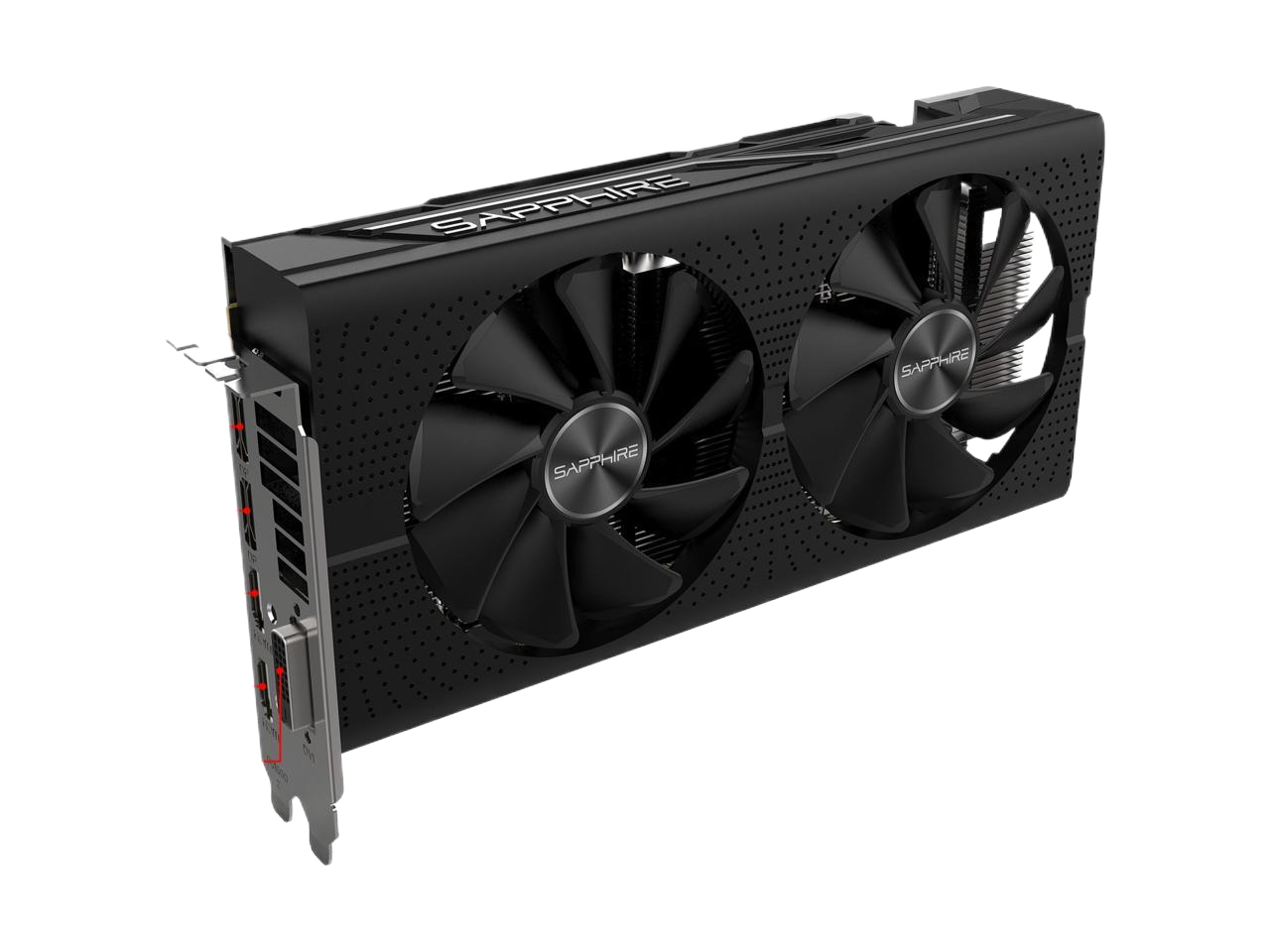

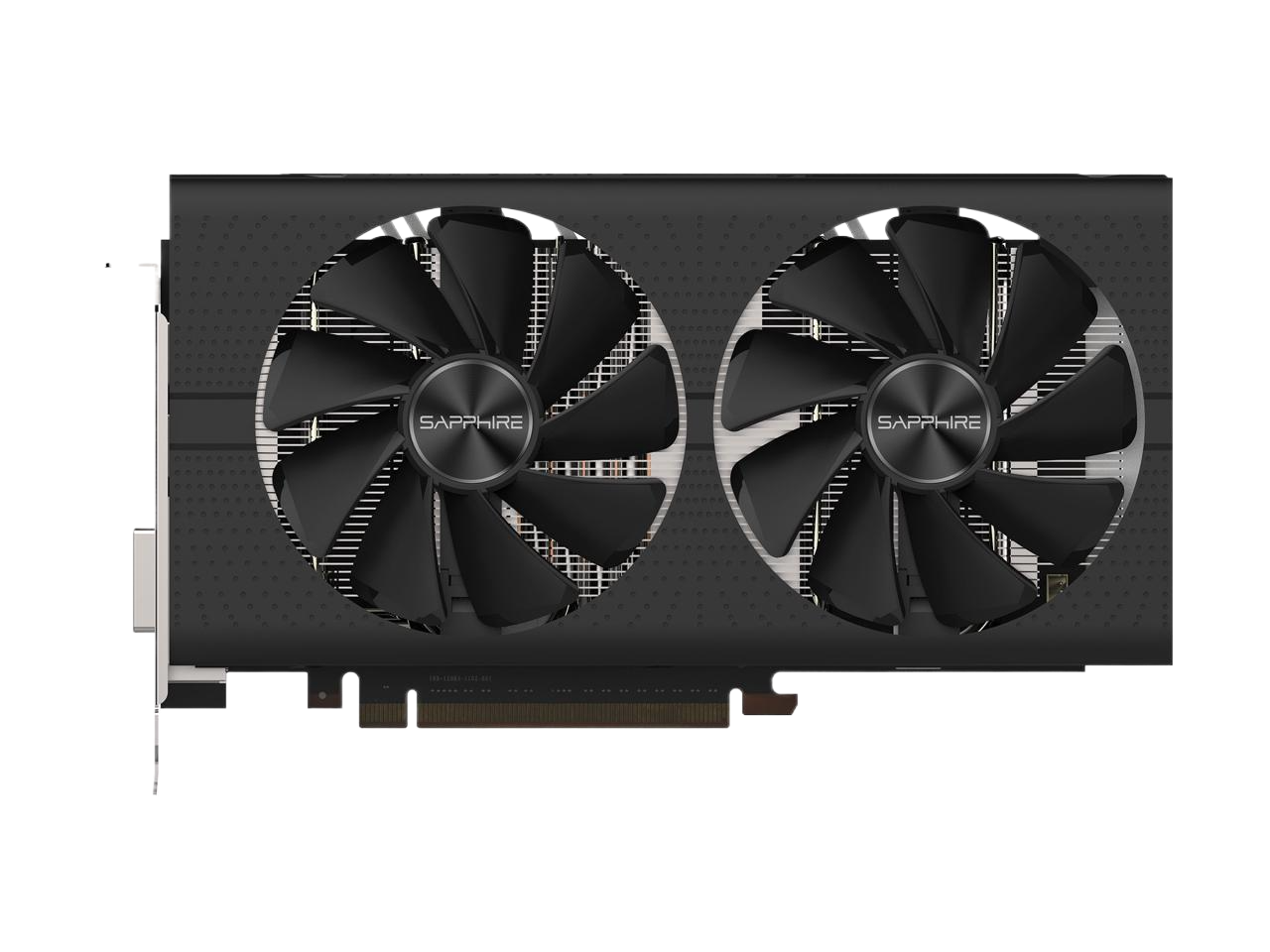

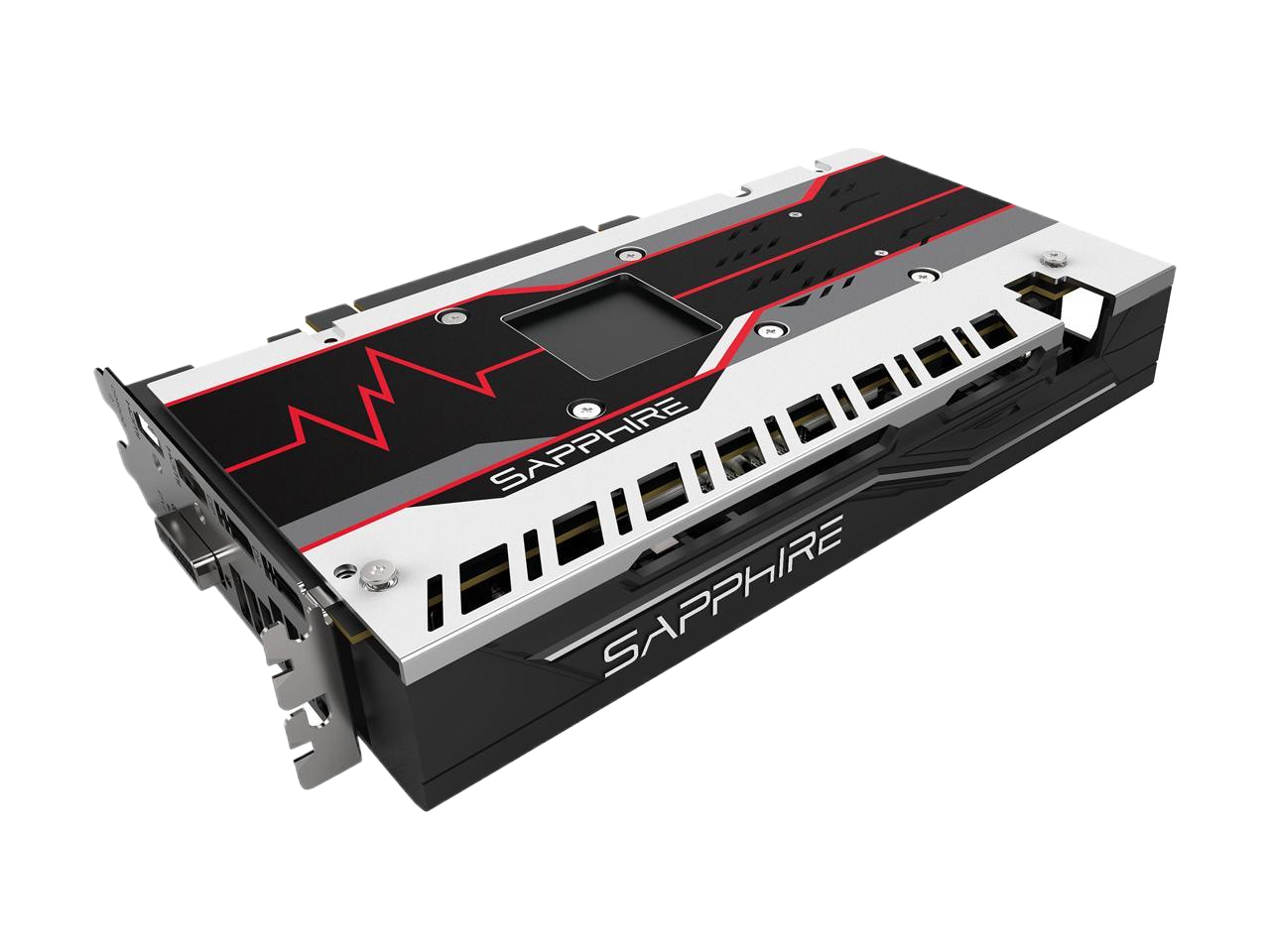

Sapphire PULSE Radeon RX 580 8GB GDDR5 PCI-E Dual HDMI / DVI-D / Dual DP OC w/ Backplate (UEFI) (11265-05-20T)
SKU:
7GC0085
Availability:
In Stock
Free shipping
$580.00
Secure checkout with:
Brand:
SAPPHIRE
Overview
REVIEWS
| Brand | SAPPHIRE |
|---|---|
| Series | PULSE |
| Model | 100411P8GOCL |
| Interface | PCI Express 3.0 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 500 Series |
| GPU | Radeon RX 580 |
| Boost Clock | 1366 MHz |
| Stream Processors | 2304 Stream Processors |
| Effective Memory Clock | Up to 2000 MHz, Effective 8000 Mbps |
|---|---|
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 |
|---|---|
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 5 |
|---|---|
| HDMI | 2 x HDMI |
| DisplayPort | 2 x DisplayPort 1.4 |
| DVI | 1 x DL-DVI-D |
| Max Resolution | DisplayPort 1.4: 5120 x 2880 @ 60 Hz HDMI: 4096 x 2160 @ 60 Hz DL-DVI-D: 2560 x 1600 @ 60 Hz |
|---|---|
| Eyefinity Support | Yes |
| CrossFireX Support | Yes |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Operating Systems Supported | Windows 10, Windows 7, 64-bit operating system required |
| Thermal Design Power | 185W |
| System Requirements | PCI Express compliant motherboard with one x16 graphics slot. 500W (or greater) power supply with minimum one PCIE 8-pin power connector is required. Minimum 4GB of system memory. Recommended 8GB. See amd.com/VR ready for more information. |
| Power Connector | 8-Pin |
| Dual-Link DVI Supported | Yes |
| Features | AMD LiquidVR Technology (Radeon VR Ready Premium) HDR Ready Vulkan Optimized Radeon Freesync 2 Ready Next Gen FinFET 14 Technology 4th Generation GCN Architecture OpenCL Support HDMI 4K60 / Display Port 1.4 AMD CrossFire technology (bridgeless) - up to 2 GPUs Radeon XConnect technology Compatible with AMD and Intel Platforms Sapphire Dual-X Cooling Technology Intelligent Fan Control III Precision Fan Control Fuse Protection |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 230 mm |
| Card Dimensions (L x H) | 9.06" x 4.92" |
| Slot Width | Dual Slot |
