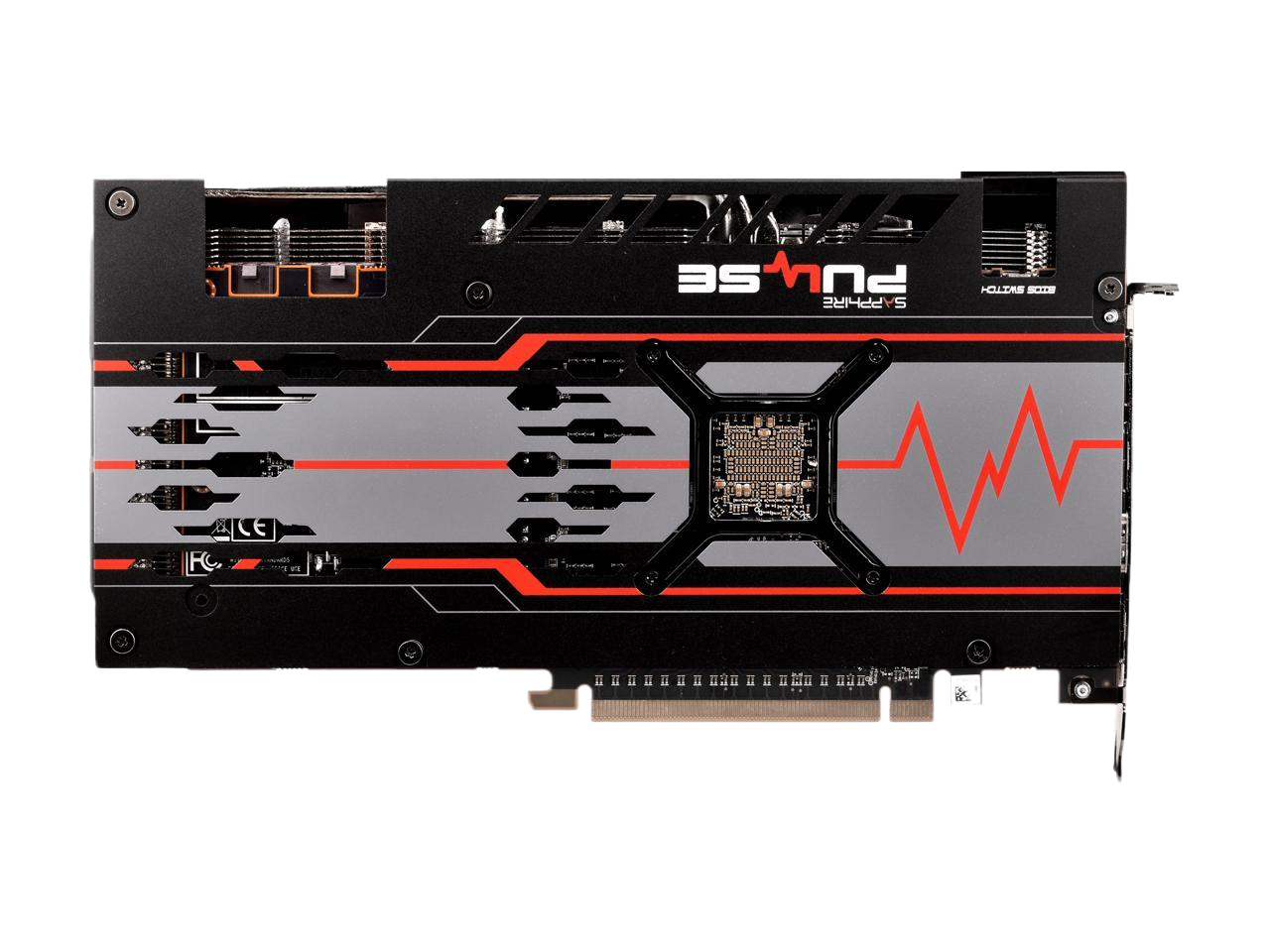

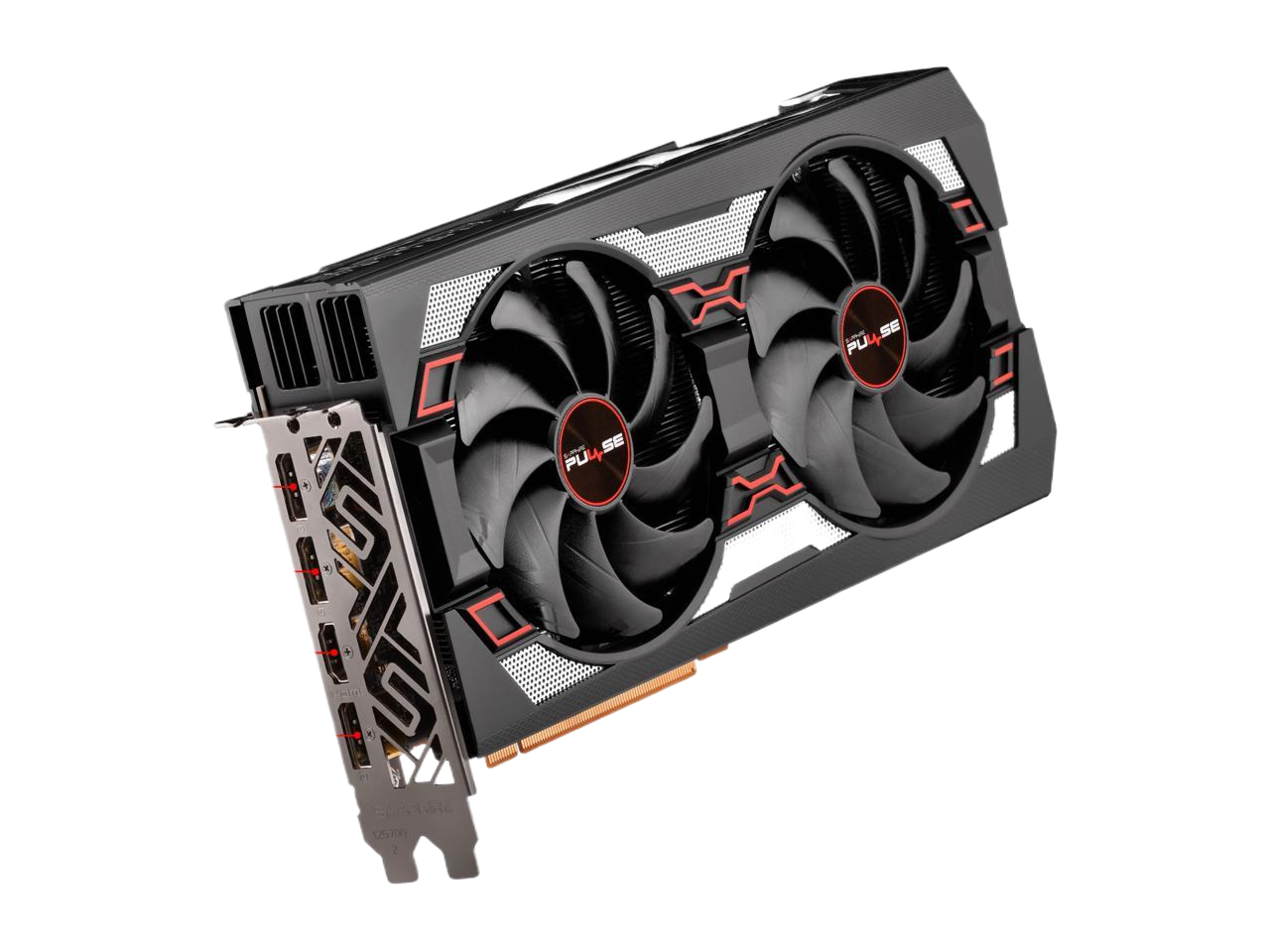

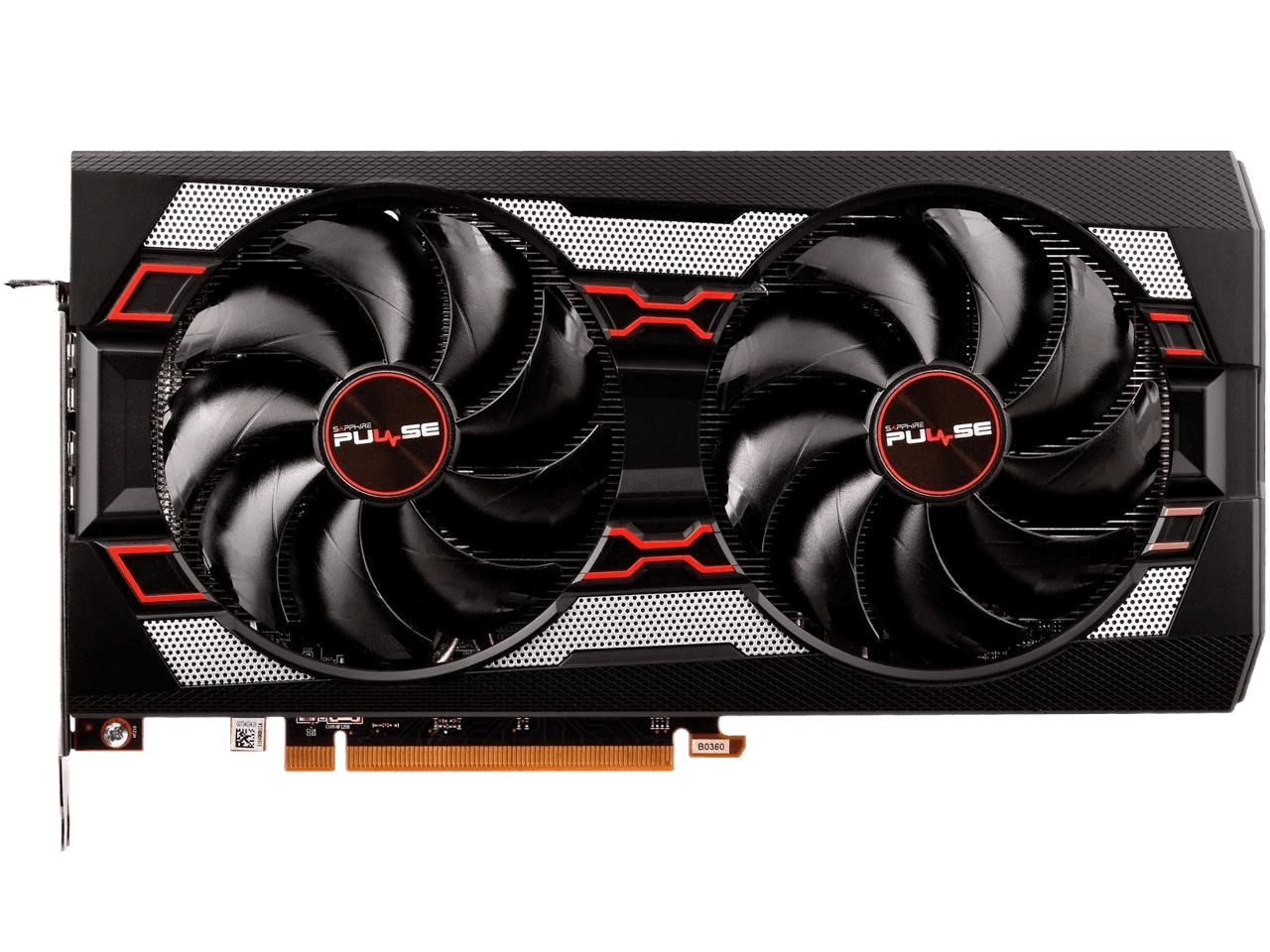

SAPPHIRE PULSE Radeon RX 5600 XT 6GB GDDR6 PCI Express 4.0 ATX Video Card 100419P6GL
SKU:
7GC1760
Availability:
In Stock
Free shipping
$569.00
Secure checkout with:
Brand:
SAPPHIRE
Overview
| Brand | SAPPHIRE |
|---|---|
| Series | PULSE |
| Model | 100419P6GL |
| Interface | PCI Express 4.0 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 5600 Series |
| GPU | Radeon RX 5600 XT |
| Boost Clock | 1750 MHz |
| Stream Processors | 2304 Stream Processors |
| Effective Memory Clock | 14 Gbps |
|---|---|
| Memory Size | 6GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI |
| DisplayPort | 3 x DisplayPort 1.4 |
| Max Resolution | HDMI: 4096x2160@60Hz DisplayPort1.4: 5120x2880@60Hz |
|---|---|
| Cooler | Double Fans |
| Operating Systems Supported | Linux, Windows 10, Windows 7 64-bit operating system required |
| Thermal Design Power | 160W |
| System Requirements | Recommended 500-Watt Power Supply (Minimum 450 Watt Power Supply). 1 x 8-pin Power Connector. PCI Express based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 4GB of system memory. 8GB recommended. |
| Recommended PSU Wattage | 500W |
| Features | Sapphire Features: Power Design Free Flow TriXX Supported TriXX Boost Intelligent Fan Control Precision Fan Control Robust VRM Cooling Robust Memory Cooling Dual-X Cooling Technology Tough Metal Backplate PCB Layers Two-Ball Bearing Fan Quick Connect Fuse Protection Dual BIOS AMD Features: RDNA Architecture 2nd Gen 7nm GPU GDDR6 Memory Power Efficiency PCI Express 4.0 Support Video Streaming up to 8K Display Port 1.4 (HBR3) / DSC Radeon Software Radeon Boost Radeon Image Sharpening Radeon Anti-Lag AMD FidelityFx Async Compute Radeon Rays Audio + True Audio Next Radeon FreeSync 2 HDR |
|---|
| Form Factor | ATX |
|---|---|
| Max GPU Length | 254 mm |
| Card Dimensions (L x H) | 10.00" x 5.31" |
| Slot Width | 2.3 slot |
