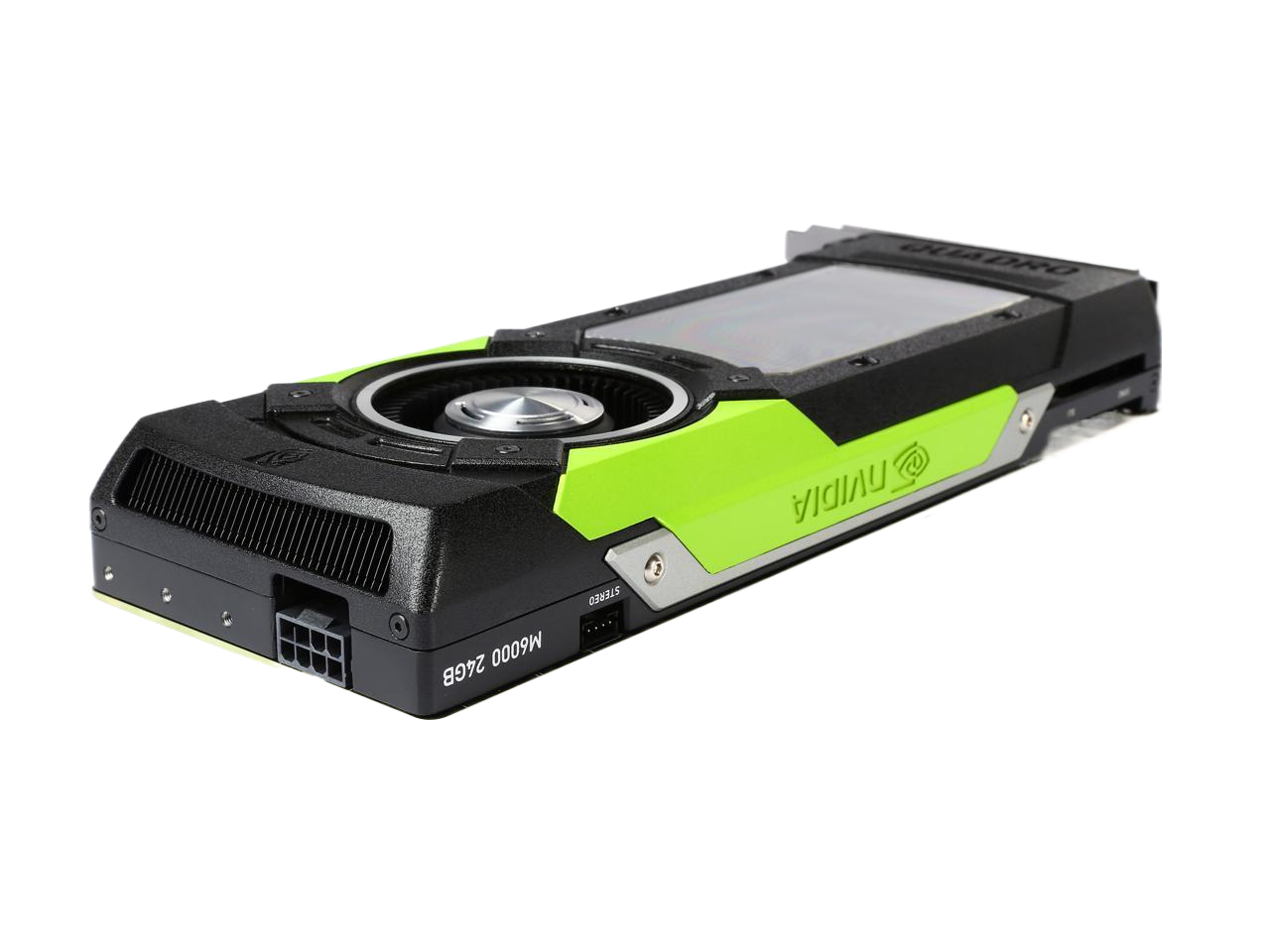

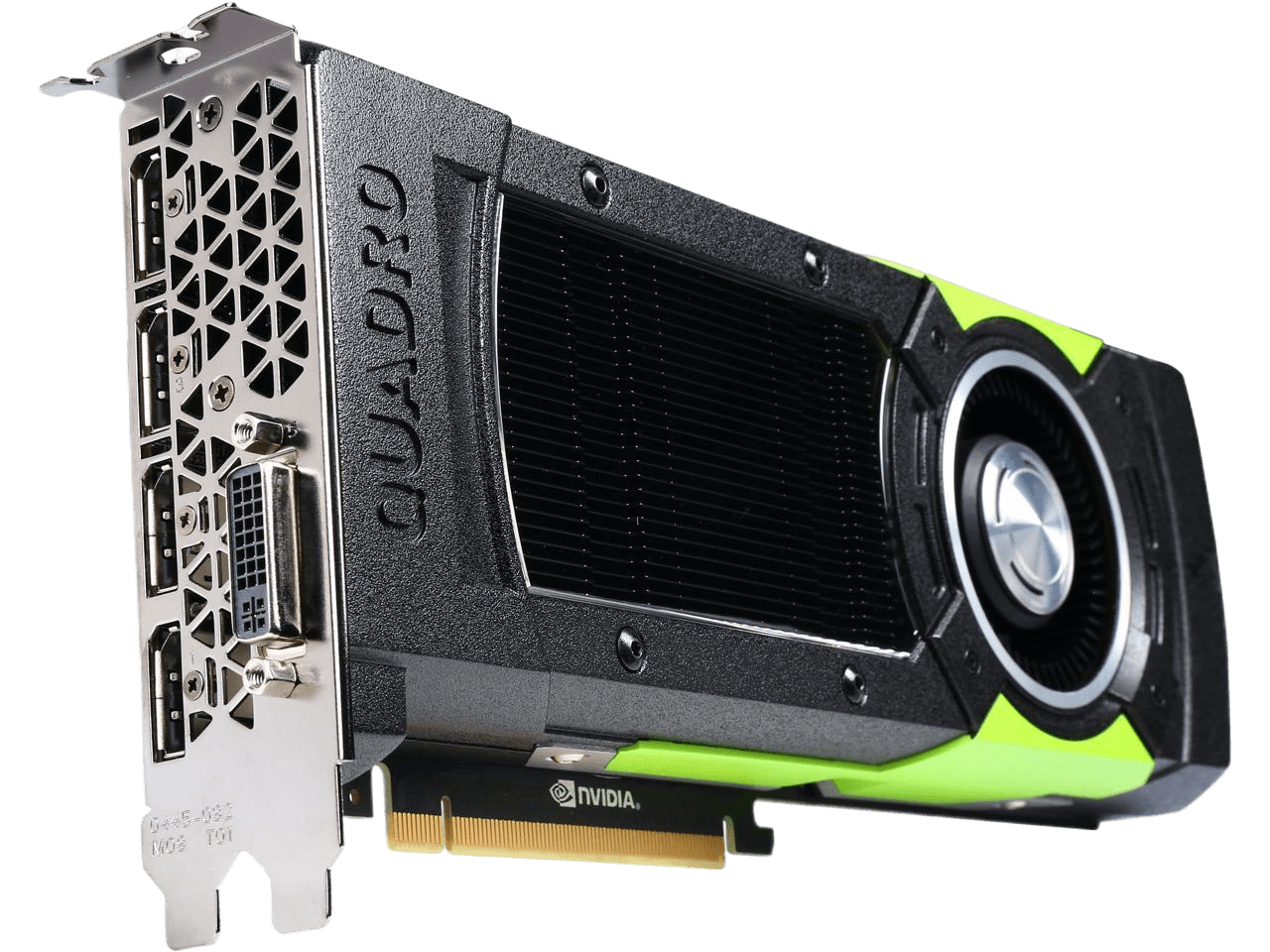

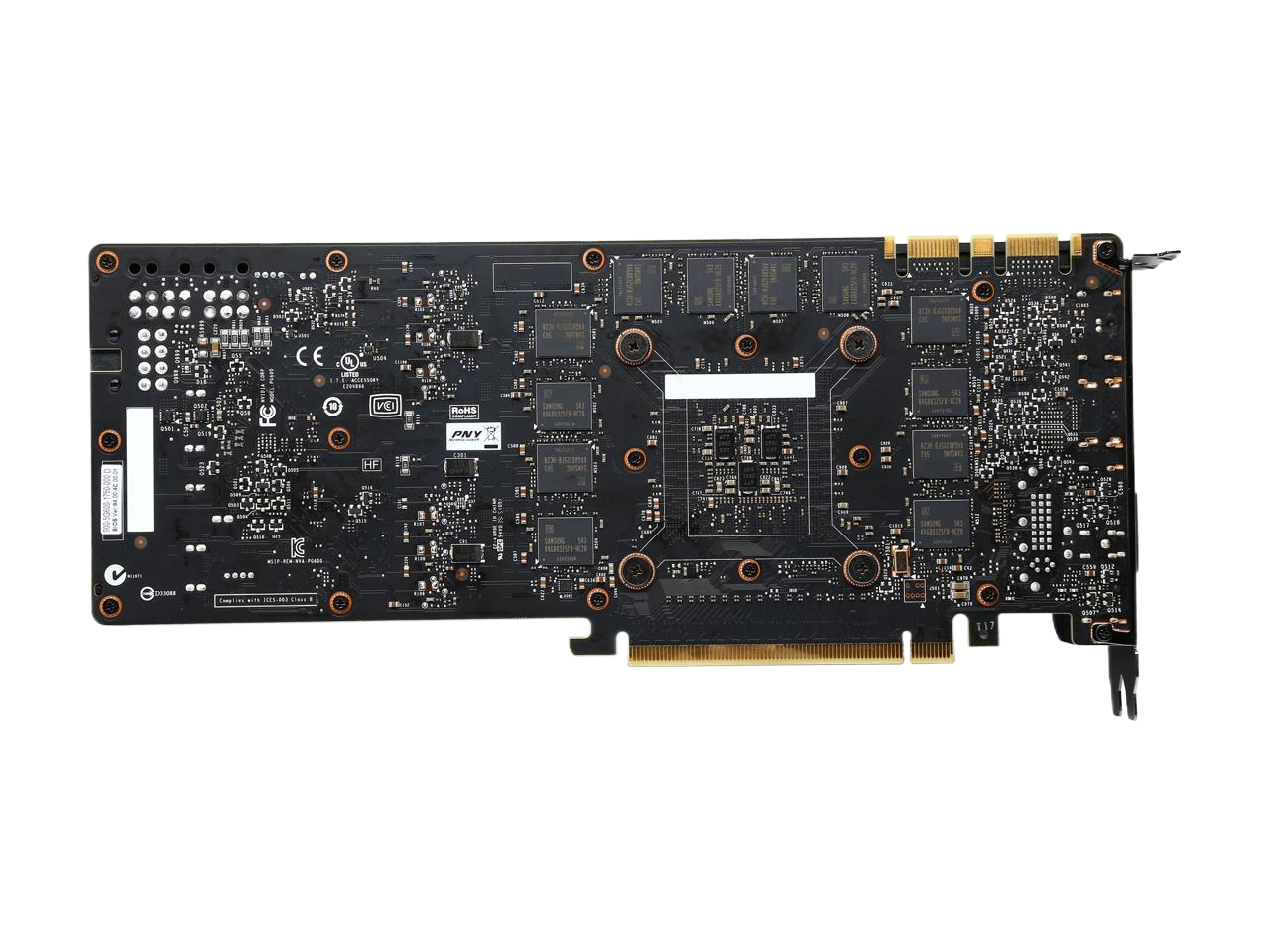

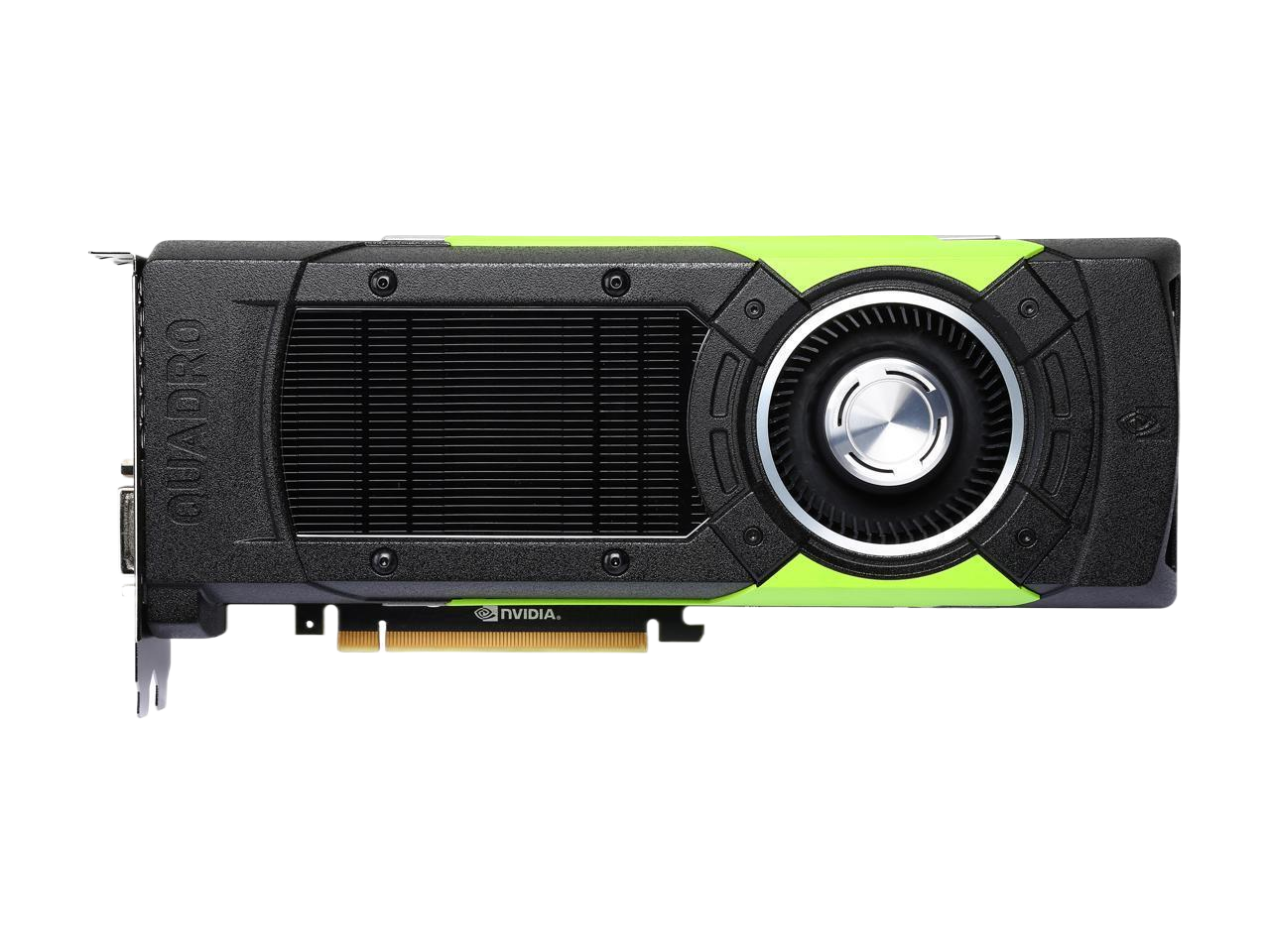

PNY Quadro M6000 24GB 384-bit GDDR5 PCI Express 3.0x16 Dual Slot Workstation Video Card VCQM6000-24GB-PB
SKU:
7GC0556
Availability:
In Stock
Free shipping
$789.00
Secure checkout with:
Brand:
PNY
Overview
REVIEWS
| Brand | PNY |
|---|---|
| Model | VCQM6000-24GB-PB |
| Interface | PCI Express 3.0 x16 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU | Quadro M6000 |
| CUDA Cores | 3072 |
| Memory Size | 24GB |
|---|---|
| Memory Interface | 384-bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 12 |
|---|---|
| OpenGL | OpenGL 4.5 |

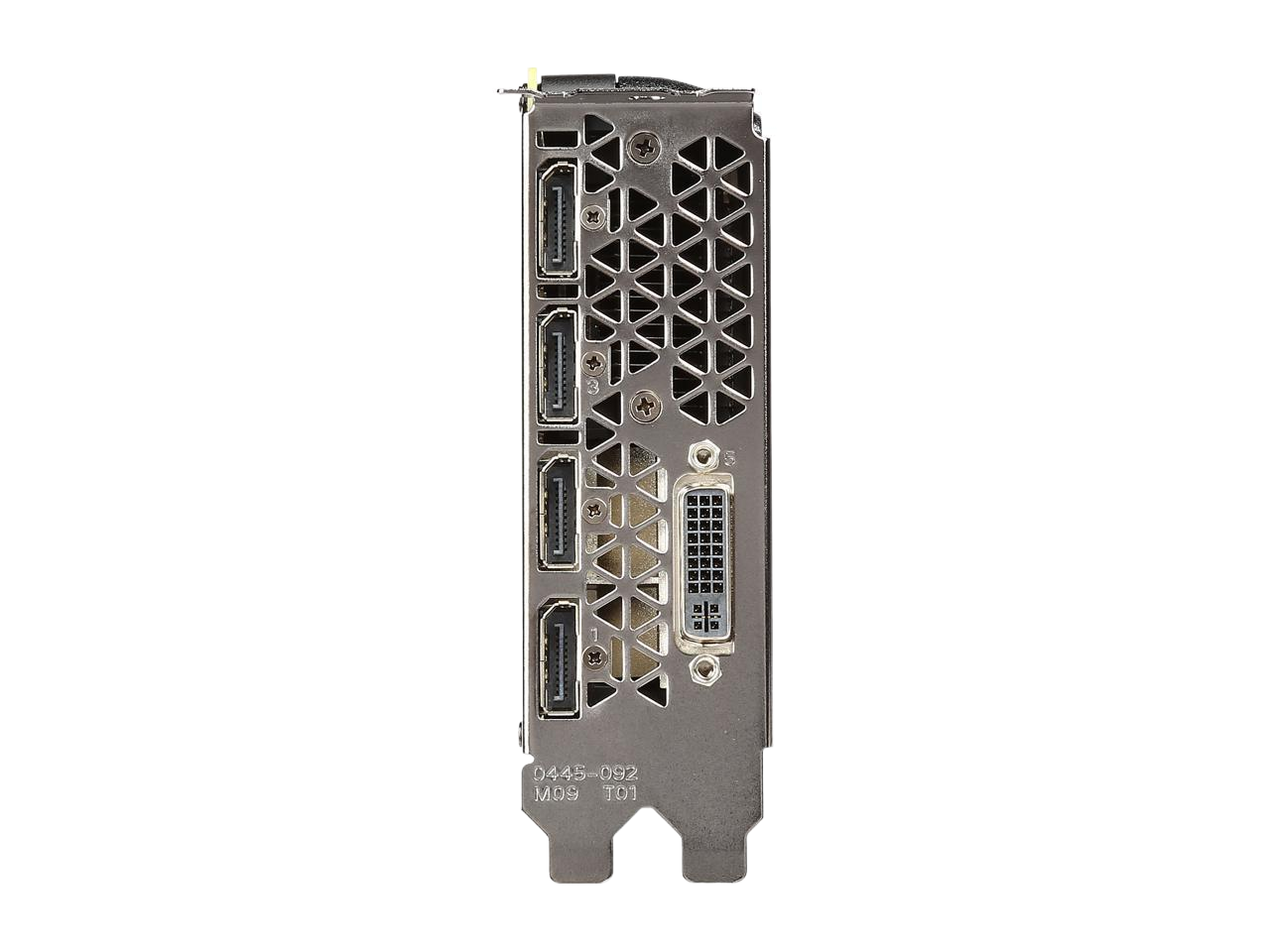

| DisplayPort | 4 x DP 1.2 |
|---|---|
| DVI | 1 x DL DVI-D |
| Digital Resolution | 4096 x 2160 |
|---|---|
| Analog Resolution | 2048 x 1536@85Hz |
| Max Displays Per Board | 4 |
| 3D Vision Pro | For Windows & Linux |
| Cooler | Ultra-quiet active fansink |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Operating Systems Supported | Microsoft Windows 10, 8.1, 8, 7, Linux, or Solaris |
| System Requirements | Maximum Power Consumption: 250W PCIe x16 Gen 3 (preferred) expansion slot 2GB or more of system memory, 8GB recommended 200MB of available disk space for full driver installation Blu-ray or DVD-ROM drive Internet connection (if preferred for driver installation) DisplayPort, DVI, or VGA compatible display(s) |
| Features | 3D Graphics Architecture - Scalable geometry architecture - Hardware tessellation engine - NVIDIA GigaThread engine with dual copy engines - Shader Model 5.0 (OpenGL 4.5 and DirectX 12) - Up to 16K x 16K texture and render processing - Transparent multisampling and super sampling - 16x angle independent anisotropic filtering Parallel Computing Capabilities - SMX architecture (streaming multi-processor design that delivers greater processing and efficiency) - HyperQ (allows multiple CPU cores to simultaneously utilize a single M6000 GPU to execute independent compute kernels) - Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU) - API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran - NVIDIA Parallel Data Cache hierarchy (per SM L1 and unified L2 caches) - Error-Correction Code (ECC) memory on graphics memory - 96KB of RAM (dedicated shard memory per SM) Advanced Display Features - 30-bit color (10-bit per each red, green and blue channel) - Support for any combination of four connected displays - DisplayPort 1.2 (supporting resolutions such as 4096 x 2160 at 60Hz) - DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz) - DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz) - Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz) - DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables optionally available (resolution support based on dongle specifications) DisplayPort and HDMI Digital Audio - Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC - Data rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz - Word sizes of 16-bit, 20-bit, and 24-bit |
|---|
| Dimensions (L x H) | 10.50" x 4.40" |
|---|
