Osprey 825e Specifications:

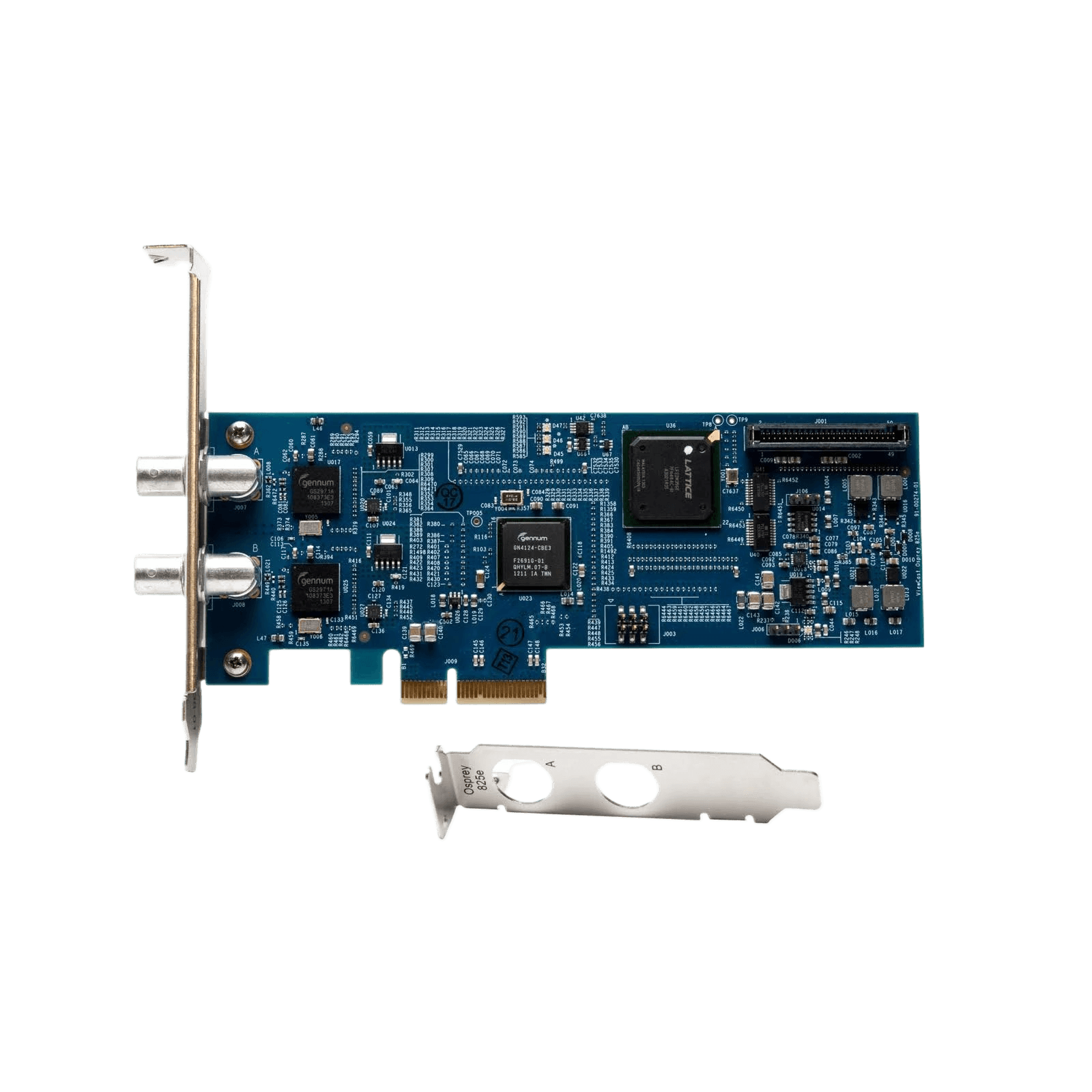

Includes low-profile bracket (see "Side View" picture above)

Description: Two channel SDI HD/SD DVB-ASI

Format:

PCI Express (x4):

Slots: x4, x8, or x16

PCIe 1.1

Video Pre-Processing:

VBI/VANC closed-caption extraction/on-screen rendering

Logo/bitmap overlay

Scaling, cropping, de-interlacing and inverse telecine

ProcAmp control

Vector Scope and Lumi Scope

Video Input:

3G SMPTE 424M x2

HD SMPTE 292M x2

SD SMPTE 259M x2

DVB-ASI x2

Video Connector: SDI (BNC x 2)

Video Modes:

1080i 50, 59.94, 60

1080p 23.98, 24, 25, 29.97, 30

720p 23.98, 24, 25, 29.97, 50, 59.94, 60

720 x 480 29.97, 30/i (NTSC)

720 x 576 25/i (PAL)

720 x 576 25, 50/p

3G SDI: 1080p 50, 59.94, 60

Audio Output:

Optional: 2 x stereo balanced XLR*

Optional: 2 x stereo balanced XLR or AES/EBU or SPDIF*

Driver Support: Microsoft DirectShow API, Linux

Dimensions: 6.60" L x 2.71" H (16.76 x 6.88 cm)

Weight: Approx. 70 g

Power Consumption: 6.3 W

Temperature Range:

Operating: 0° to 40° C

Non-Operating: -40° to +75° C

Relative Humidity:

Operating: Between 5 % and 80 % (non-condensing)

Non-Operating: 95 % RH (non-condensing); gradient 30% per hour

Altitude Range:

Operating: 0 to 3,048 meters (10,000 feet)

Non-Operating: 0 to 15,240 meters (50,000 feet)

System recommendations: High-quality video capture requires a PCIe bus with direct access to the CPU
