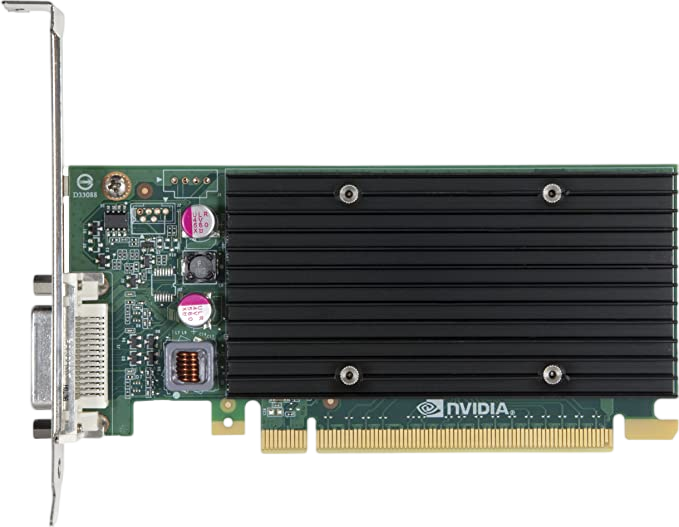

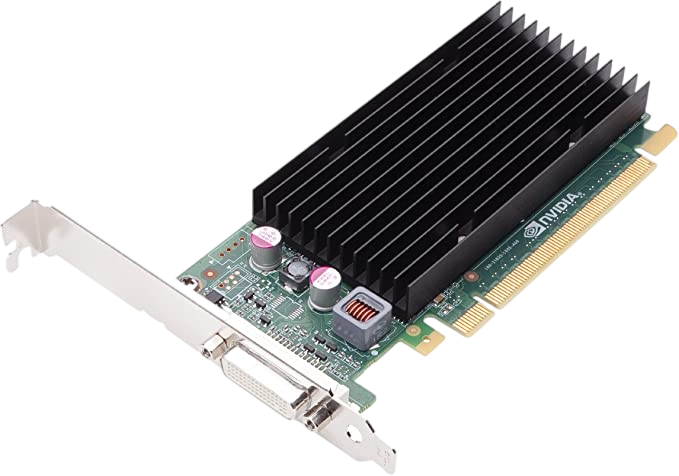

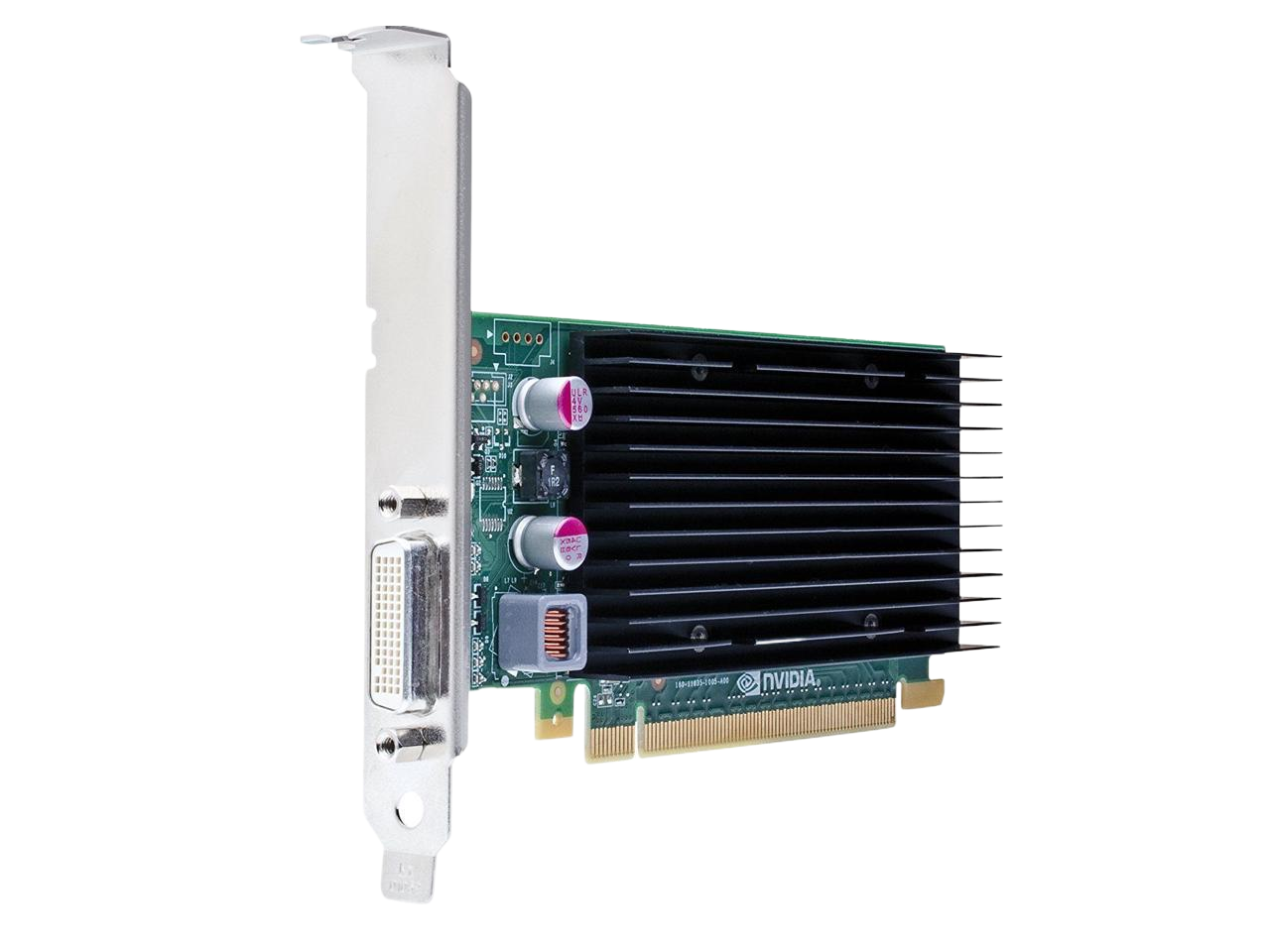

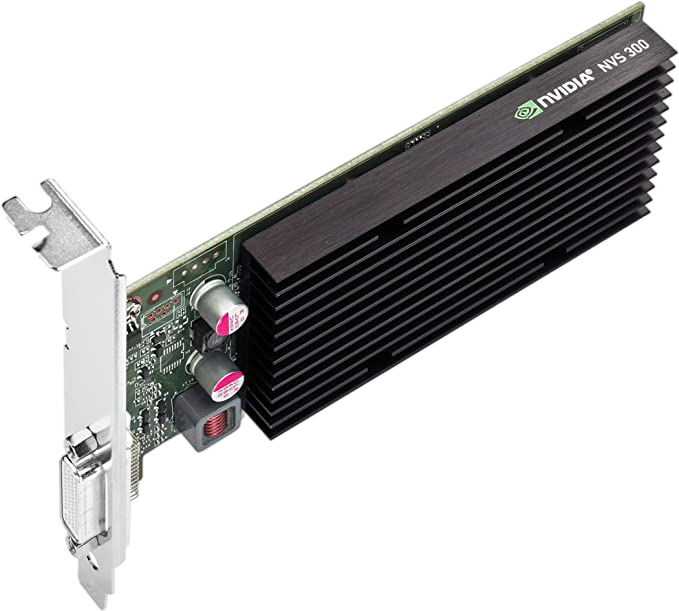

Product Description PNY Quadro NVS 300 512MB DDR3 DMS-59 PCI-Express x1 Low Profile Video Card From the Manufacturer Overview NVIDIA® NVS 300 by PNY x1 for DVI and VGA The Standard for Multi-Display Business Graphics The NVIDIA NVS 300 by PNY for x1 PCIe high resolution, multi-display business graphics solution, designed for small and standard form factor systems, delivers reliable hardware and software for a stable business environment. Tested on leading business applications, this configuration of the NVIDIA NVS 300 includes a DMS-59 to dual DVI-SL adapter capable of driving two DVI compatible displays up to resolutions of 1920 x 1200 at 60Hz.

By attaching the supplied DVI to VGA adapters to this cable VGA displays can also be accommodated up to resolutions of 2048 x 1536 at 85Hz. With NVIDIA Mosaic Mode and NVIEW technologies built in, you can span and efficiently manage your entire Windows desktop across multiple displays. NVIDIA power management technology reduces overall system energy costs. It intelligently adapts the total power utilization of the graphics subsystem based on the applications being run by the end user. This power optimized design helps reduce Total Cost of Ownership (TCO) and increase reliability. PNY provides unsurpassed service and commitment to its professional graphics customers offering: 3 year warranty, pre and post-sales support, dedicated Quadro Field Application engineers and direct tech support hot lines. In addition,

Product Details Frame Buffer Memory 512 MB DDR3

Memory Interface 64-bit

Memory Bandwidth 12.6 GB/s CUDA parallel processing cores 16

Max Power Consumption 17.5 W

Energy Star Compliant Yes

Physical Dimensions SFF 2.713" H x 5.70" L

Single Slot Low Profile

Form Factor Yes

Number of Displays Supported 2 Display

Connectors DMS-59 to DVI-SL (2)

Maximum DVI Resolution 1920 x 1200 at 60Hz VGA Connectors Two DVI to VGA adapters

Maximum VGA Resolution 2048 x 1536 at 85Hz PCIe

High Definition Audio Support Yes

HDCP Support Yes

Graphics APIs OpenGL 3.3, DirectX 10.1,

Shader Model 4.1 Compute APIs CUDA,

DirectCompute and OpenCL

NVIEW Enabled Yes

Mosaic Mode Enabled Yes

PNY Part # VCNVS300X1-PB

Features and Benefits Fast 512 MB DDR3 graphics memory Delivers high throughput to simultaneously play stunning HD video on each connected display. Intelligent Power Management NVIDIA Power Management technology reduces overall system energy costs.
