Manufacturer Nvidia

Model number GRID K520

MPN 900-12055-0020-000

SKU GRID K520

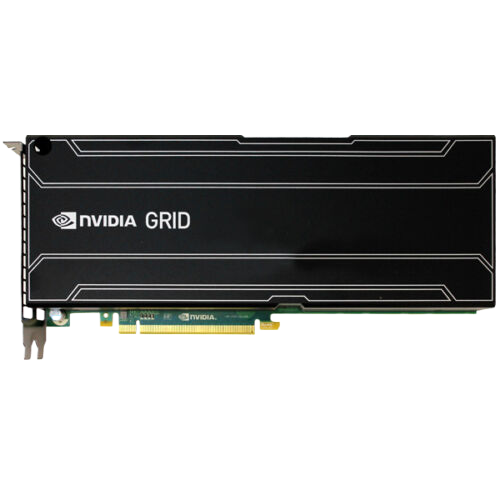

GRID K520 combines two graphics processors to increase performance. It features 1536 shading units, 128 texture mapping units and 32 ROPs per

GPU NVIDIA has placed 8, 192 MB GDDR5 memory on the card. NVIDIA Kepler architecture-based GRID boards deliver the highest-density and highest-performance solutions available for cloud gaming platforms.

Specifications:

Type High-Performance Gaming

Number of GPUs 2x GK104 GPUs

Cuda Cores 3072

Processor cores 1532 per GPU

Core clock 800Mhz

Interface PCI Express  Gen3 x16

Form factor

Dual-Slot ATX

Board Length 10.5 ”

Board Height 4.4

Max power 225 W

Power connectors 1x 8-pin PCI Express 1x 6-pin PCI Express

Memory size 8 GB GDDR5 (4 GB/GPU)

Memory Bus 256 bit x2

Bandwidth 192 GB/s x2

Cooling Passive Cooling (Normal Airflow intake from bracket)

Cables 6-pin power cable & 8-pin power cable
