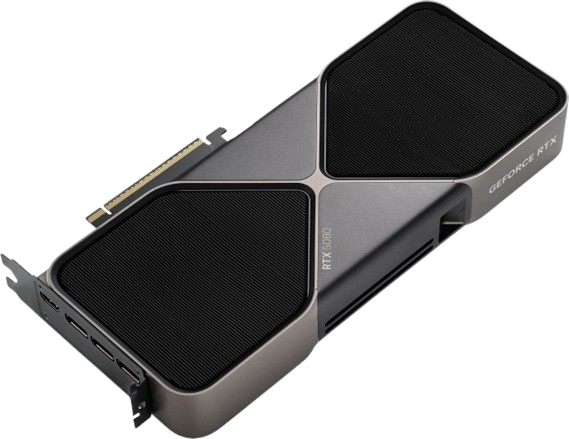

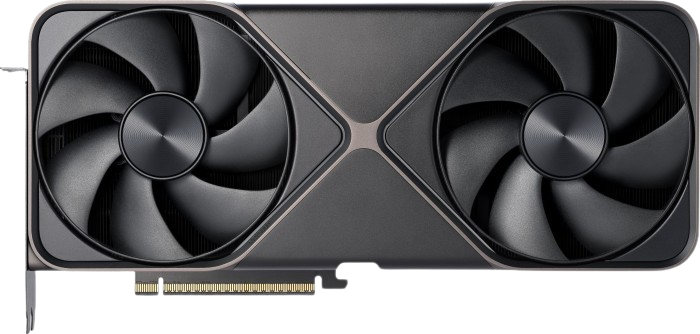

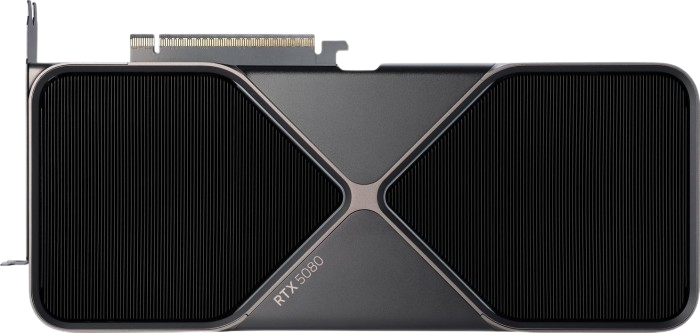

NVIDIA GeForce RTX 5080 Founders Edition 16GB GDDR7 Gun Metal Graphics Card
SKU:
7GC1991
Availability:
In Stock
Free shipping
$2,499.00
Secure checkout with:
Brand:
NVIDIA
Overview
SPECS
| Technical data of the graphics processor: | NVIDIA CUDA processing units | 10752 |
| shader cores | Blackwell | |
| tensor computing units (AI) |
5th Generation 1801 AI-TOPS |
|
| ray tracing processing units |
4th generation 171 TFLOPS |
|
| boost clock speed (GHz) | 2.62 | |
| base clock speed (GHz) | 2.3 | |
| Technical data of the storage: | standard memory configuration | 16 GB GDDR7 |
| width of the memory interface | 256 bit | |
| Supported technologies: | NVIDIA architecture | Blackwell |
| ray tracing | Yes | |
| DLSS |
DLSS 4 Super High Resolution DLAA Ray Reconstruction Frame Creation Multiframe Generation |
|
| NVIDIA Reflex |
Reflex 2 Low Latency Mode Frame Warp (coming soon) |
|
| NVIDIA Broadcast | Yes | |
| PCI Express Gen 5 | Yes | |
| Resizable BAR | Yes | |
| NVIDIA app | Yes | |
| NVIDIA Ansel | Yes | |
| NVIDIA FreeStyle | Yes | |
| NVIDIA ShadowPlay | Yes | |
| NVIDIA Highlights | Yes | |
| NVIDIA G-SYNC ® | Yes | |
| Game Ready Drivers | Yes | |
| NVIDIA Studio Drivers | Yes | |
| NVIDIA Omniverse | Yes | |
| RTX Remix | Yes | |
| Microsoft DirectX ® 12 Ultimate | Yes | |
| NVIDIA GPU Boost ™ | Yes | |
| NVIDIA NVLink ™ (SLI-Ready) | No | |
| Vulkan 1.4, OpenGL 4.6 | Yes | |
| NVIDIA Encoder (NVENC) | 2x Ninth Generation | |
| NVIDIA Decoder (NVDEC) | 2x Sixth Generation | |
| AV1 coding | Yes | |
| AV1 decoding | Yes | |
| CUDA capability | 12.8 | |
| VR Ready | Yes | |
| Supported display options: | Maximum digital resolution (1) | 4K at 480 Hz or 8K at 165 Hz with DSC |
| standard monitor connections | 3x DisplayPort (2) , 1x HDMI (3) | |
| multi-display capable | up to 4 (4) | |
| HDCP | 2.3 | |
| Dimensions of the card: | length | 304 mm |
| Width | 137 mm | |
| slot | 2 slots | |
| SFF-Ready GeForce graphics card for enthusiasts |
Founders Edition Yes Varies depending on manufacturer |
|
| Temperature and performance data: | Max. temperature of the graphics card (in °C) | 88 |
| Total graphics performance (W) | 360 | |
| Required system power (W) (5) | 850 | |
| Additional power supply connections |
3x 8-pin PCIe cable (adapter included) OR 1x 5th generation PCIe cable with 450W or more |
Model
Series:
RTX 50 Series
Part number:
900-1G144-2545-000
Interface
Interface:
PCI Express 5.0
Chipset
Boost Clock:
2.62 GHz
Memory
Memory Interface:
256bit
Memory Type:
GDDR7
3D API
DirectX:
DirectX 12 Ultimate
OpenGL:
OpenGL 4.6 support
Ports
HDMI:
1 x HDMI 2.1
DisplayPort:
3 x DisplayPort 2.1
Details
Cooler:
Fan
