  • 4GB GDDR5
  • PCI Express 3.0 x16
  • Brand Matrox
    Series C680
    Model C680-E4GBF
    Interface PCI Express 3.0 x16
    Chipset Manufacturer AMD
    Memory Size 4GB
    Memory Type GDDR5
    3D API
    DirectX DirectX 12
    OpenGL OpenGL 4.4

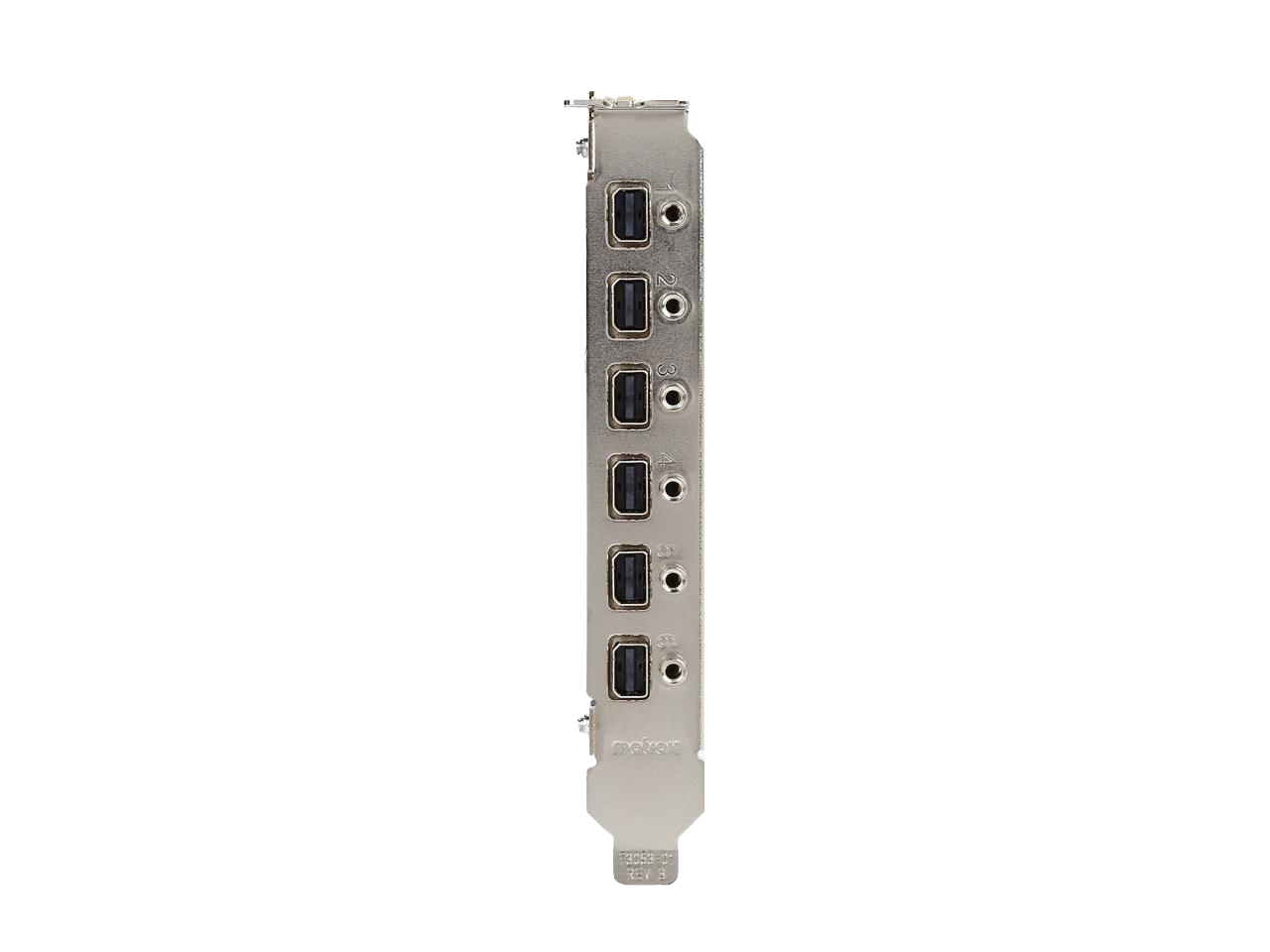

    DisplayPort 6 x Mini DisplayPort 1.2 (secure)
    Digital Resolution 4096 x 2160
    Max Displays Per Board 6
    Cooler With Fan
    Dual-Link DVI Supported Yes
    HDCP Ready Yes
    Operating Systems Supported Windows 10 32-bit
    Windows 10 64-bit
    Windows 8.1 32-bit
    Windows 8.1 64-bit
    Windows 7 32-bit
    Windows 7 64-bit
    Windows Embedded Standard 7 32-bit
    Windows Embedded Standard 7 64-bit
    Windows Server 2012 R2 64-bit
    Windows Server 2008 R2 64-bit
    System Requirements Single available PCIe x16 lane
    2GB of system memory
    Internet access for software installation
    Compatible operating system
    Features Drive up to six displays or projectors

    Supports a maximum resolution of 4096 x 2160 per output

    Experience smooth video playback and graphics performance with 4GB of memory

    Minimize power consumption with an energy efficient board design

    Expand your desktop space with multi-board support to drive up to 12 displays from a single computer

    Framelock two Matrox C680 cards together and synchronize the refresh rate across all monitors to reduce tearing

    Simplify cabling by daisy-chaining DisplayPort 1.2 MST-capable displays

    Customize your setup with the easy-to-use Matrox PowerDesk multi-display configuration and desktop management software

    Configure displays independently from one another or select stretched desktop mode to create as a single ultra-large desktop across multiple displays

    Clone content to show the same information on all displays

    Select any combination of portrait or landscape and set the orientation that works best for you

    Simplify A/V installations with advanced EDID Management

    Prevent loose cabling with secure Mini DisplayPort connectors

    Adjust the number of overlapping pixels with Edge Overlap to create a seamless, unified image on up to six edge blending projectors

    Facilitate enterprise-wide deployments by installing Matrox PowerDesk & drivers across many systems without any user interaction

    Pair C680 with Matrox Mura IPX Series for 4K capture and IP encode & decode

    Manage video wall layouts, sources and more with the MuraControl for Windows software (sold separately) or the MuraControl for iPad app

    Supports Microsoft DirectX 12, OpenGL 4.4, and OpenCL 1.2 to run the latest professional applications

    Protect your investment with Matrox long product life-cycles

    Supports Mura Control for Windows and Mura Control for iPad
    Form Factor & Dimensions
    Form Factor Full Height / Half Length
    Dimensions (L x H) 6.60" x 4.05"
