MANUFACTURER: HP / NVIDIA

PART NUMBER: 913196-002

ENGINE ARCHITECTURE: PASCAL
CUDA CORES: 2560
BOOST CLOCK: 1733 MHZ
GPU CLOCK: 1607 MHZ
MEMORY CONFIGURATION: 16GB
MEMORY INTERFACE: GDDR5X
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 288 GB/S
MEMORY CLOCK: 1127 MHZ ( EFFECTIVE: 9016 MHZ )
BUS SUPPORT: PCI-E 3.0
PHYSICAL BUS INTERFACE: PCI-E 3.0 X16
SUPPORTED TECHNOLOGIES: SHADER MODEL 5.1, OPENGL 4.5, DIRECTX 12.0, VULKAN 1.0, CUDA CORE TECHNOLOGY, DIRECTCOMPUTE, OPENCL, NVIDIA GPUDIRECT SUPPORT, QUADRO SYNC II COMPATIBILITY, NVIDIA NVIEW DESKTOP, MANAGEMENT SOFTWARE COMPATIBILITY, HDCP 2.2 SUPPORT, NVIDIA MOSAIC
MAXIMUM DP 1.4 RESOLUTION: 7680 x 4320 AT 30HZMAXIMUM DVI-D DL RESOLUTION: 2560 x 1600 AT 60HZMULTI MONITOR: YESHDCP: 2.2

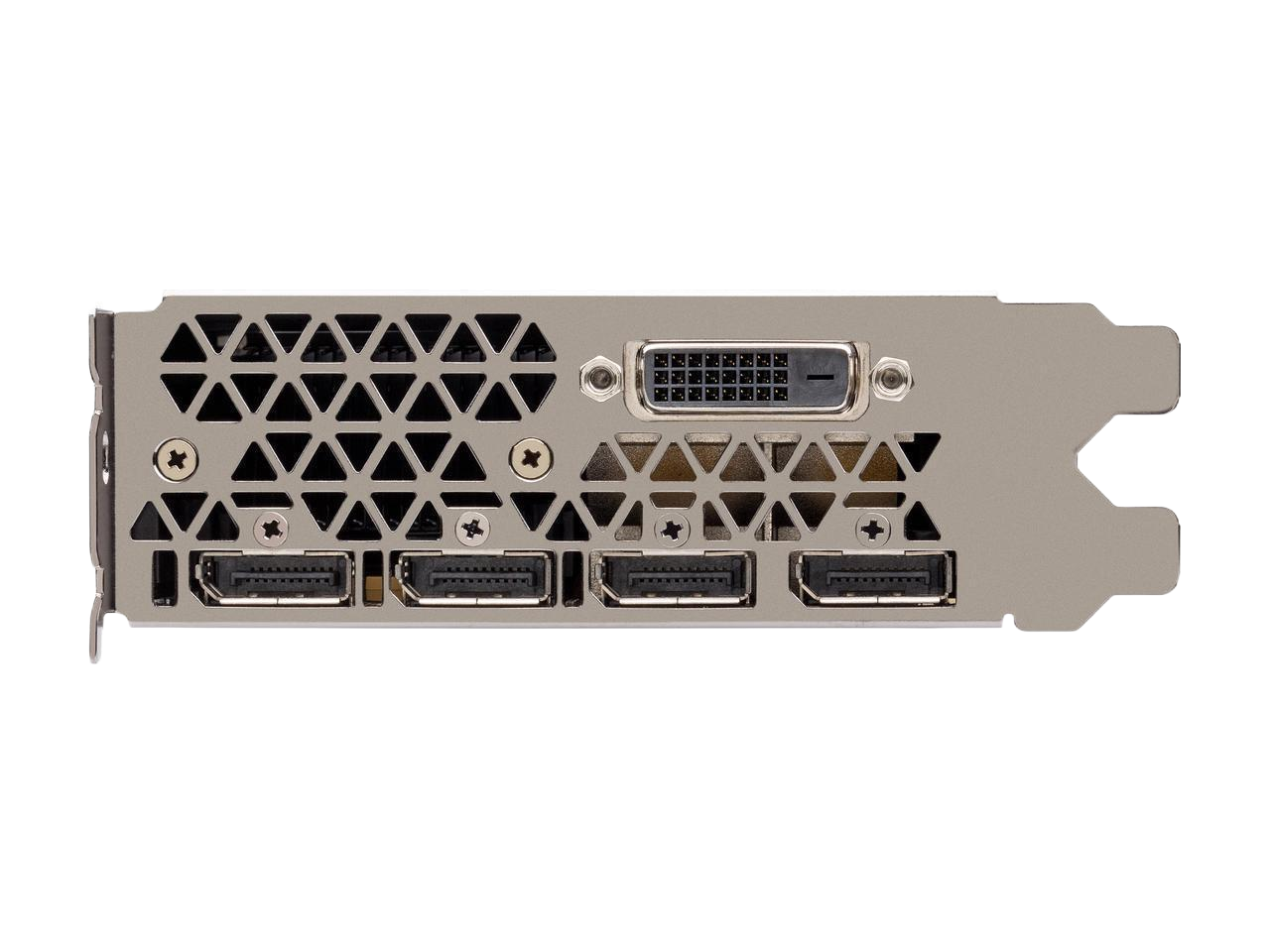

DISPLAY CONNECTORS: ( 1 ) ONE DUAL LINK DVI-D ( 4 ) FOUR DISPLAYPORTS DPADDITIONAL CONNECTORS: ( 2 ) TWO SLI INTERFACES ( SLI1 / SLI2 ) ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
MAX POWER CONSUMPTION ( W ): 180W

POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR
Cooling: ONE ACTIVE FANSINK
