SKU:
7GC1699
Availability:
In Stock
$718.00
x
Secure checkout with:
visa mastercard amex discover shoppay Apple Pay Google Pay Meta Pay PayPal Express After Pay
Brand:
EVGA
  • ATX12V / EPS12V
  • Full Modular
  • 80 PLUS TITANIUM Certified
  • 115 - 240 V 50/60 Hz
  • +3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
  • Brand EVGA
    Model 220-T2-1600-X1
    Details
    Type ATX12V / EPS12V
    Maximum Power 1600 W
    Fans 140mm Double Ball Bearing
    Main Connector 24Pin
    +12V Rails Single
    PCI-Express Connector  9 x 8pin (6+2), 5 x 6pin
    SATA Power Connector  16
    SLI SLI Ready
    CrossFire CrossFire Ready
    Modular Full Modular
    Energy-Efficient 80 PLUS TITANIUM Certified
    Over Voltage Protection Yes
    Overload Protection Yes
    Input Voltage 115 - 240 V
    Input Frequency Range 50/60 Hz
    Input Current 17-10A
    Output +3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
    MTBF >100,000 Hours
    Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
    Compliance with ErP Lot 6 2013 Requirement
    Max PSU Length 220 mm
    Connectors 24 Pin ATX: 1x
    EPS (CPU): 2x 8pin (4+4)
    PCIE: 9x 8pin (6+2), 5x 6pin
    SATA: 16x
    Four-Pin Peripheral: 6x
    FloppyP: 2x
    Features
    Features Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
    Highest quality Japanese brand capacitors ensure longterm
    reliability
    Fully Modular to reduce clutter and improve airflow
    NVIDIA SLI & AMD Crossfire Ready
    Double Ball Bearing fan for exceptional reliability and quiet operation
    Heavyduty
    protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
    Protection), and SCP (Short Circuit Protection)
    ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
    80 PLUS Titanium certified, with 94% (115VAC) / 96% (220VAC~240VAC) efficiency or higher under typical loads
    Dimension & Weight

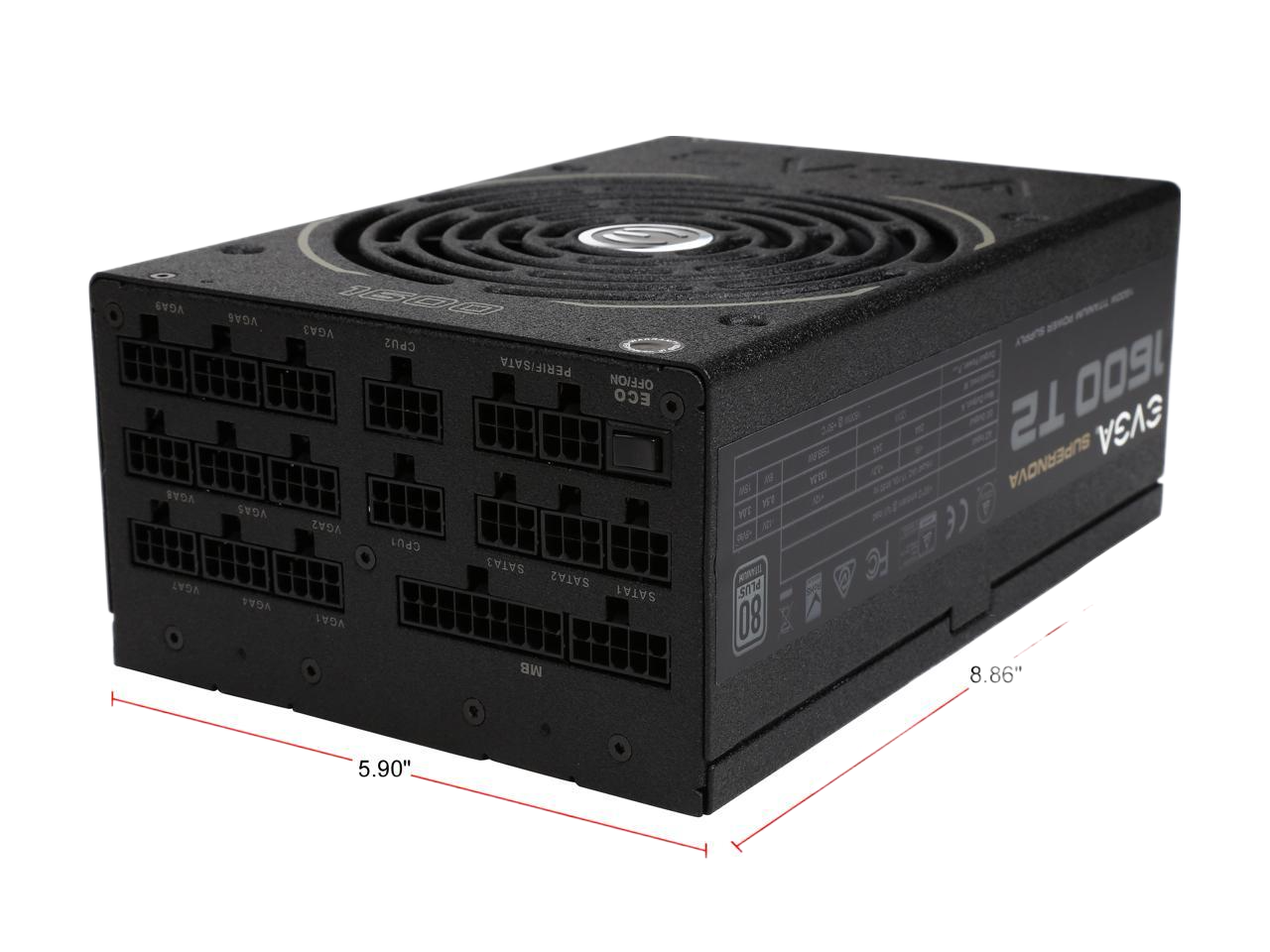

    Dimensions 3.35" x 5.90" x 8.86"
    Weight 8.00 lbs.
