SKU:
7GC1692
Availability:
Out of Stock
Free shipping
Sold out
Secure checkout with:
Brand:
EVGA
  • ATX12V / EPS12V
  • Full Modular
  • 80 PLUS GOLD Certified
  • 115 - 240 V 50/60 Hz
  • +3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
  • Brand EVGA
    Model 120-G2-1600-X1
    Details
    Type ATX12V / EPS12V
    Maximum Power 1600 W
    Fans 140mm Double Ball Bearing
    Main Connector 24Pin
    +12V Rails Single
    PCI-Express Connector 9x 8pin (6+2), 5x 6pin
    SATA Power Connector 16
    SLI SLI Ready
    Modular Full Modular
    Efficiency 90%
    Energy-Efficient 80 PLUS GOLD Certified
    Over Voltage Protection  Yes
    Overload Protection Yes
    Input Voltage 115 - 240 V
    Input Frequency Range 50/60 Hz
    Input Current 17-10A
    Output +3.3V@24A, +5V@24A, +12V@133.3A, +5VSB@3A, -12V@0.5A
    MTBF >100,000 Hours
    Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS
    Compliance with ErP Lot 6 2013 Requirement
    Max PSU Length 220 mm

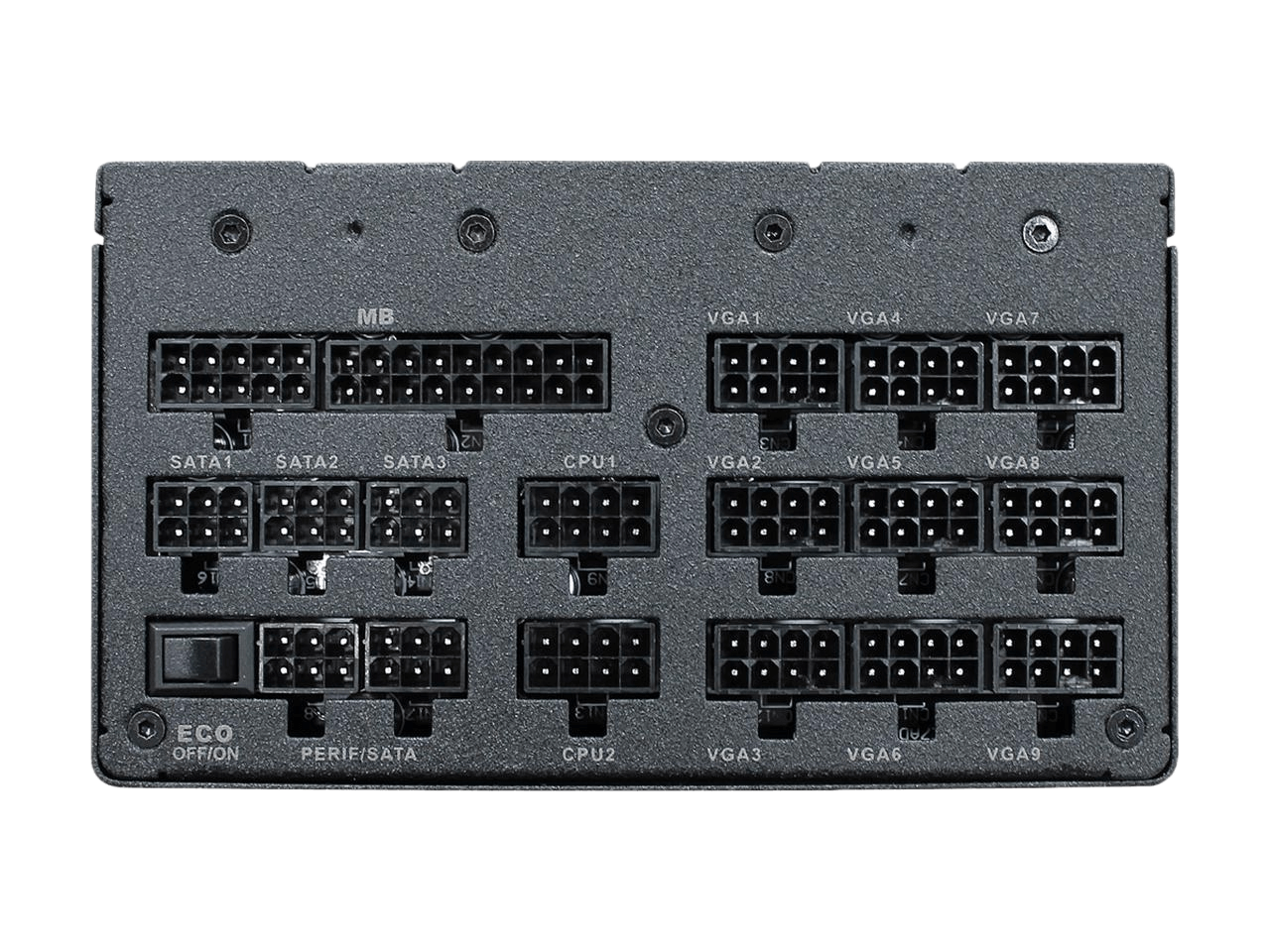

    Connectors 1 x 24 Pin ATX
    EPS (CPU): 2 x 8pin (4+4)
    PCIE: 9 x 8pin (6+2), 5 x 6pin
    16 x SATA
    6 x Four-Pin Peripheral
    2 x Floppy
    Features
    Features Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support

    80 PLUS Gold certified, with up to 90% efficiency under typical loads

    Highest quality Japanese brand capacitors ensure long-term reliability

    Fully Modular to reduce clutter and improve airflow

    NVIDIA SLI Ready

    Double Ball Bearing fan for exceptional reliability and quiet operation

    Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power
    Protection), and SCP (Short Circuit Protection)
    Dimension & Weight
    Dimensions 3.34" x 5.90" x 8.66" (H x W x L)
    Weight 8.00lbs
    Details
    Modular Yes
