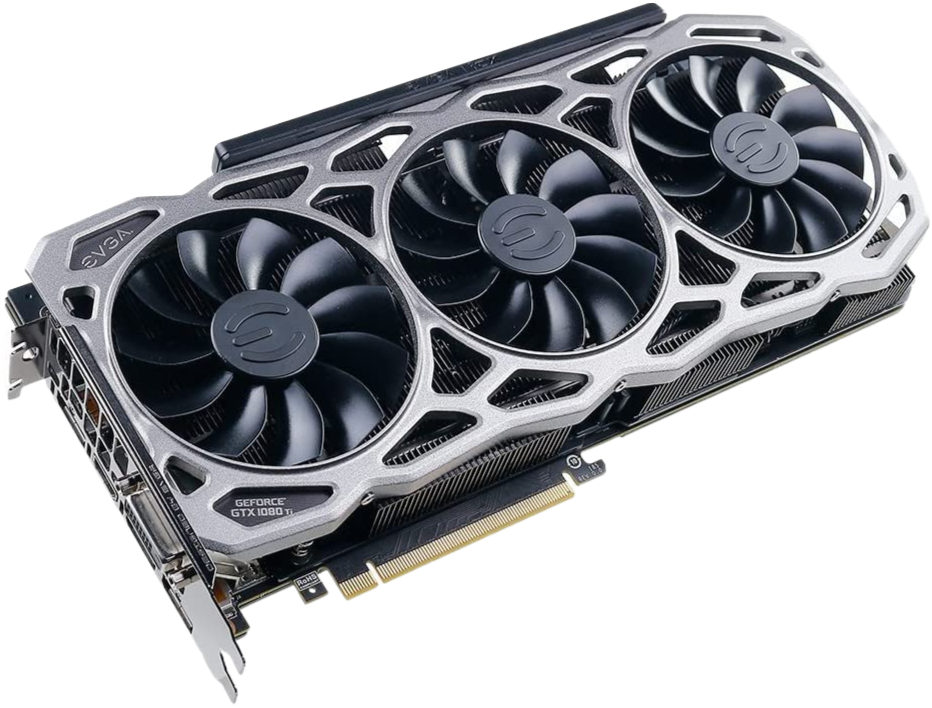

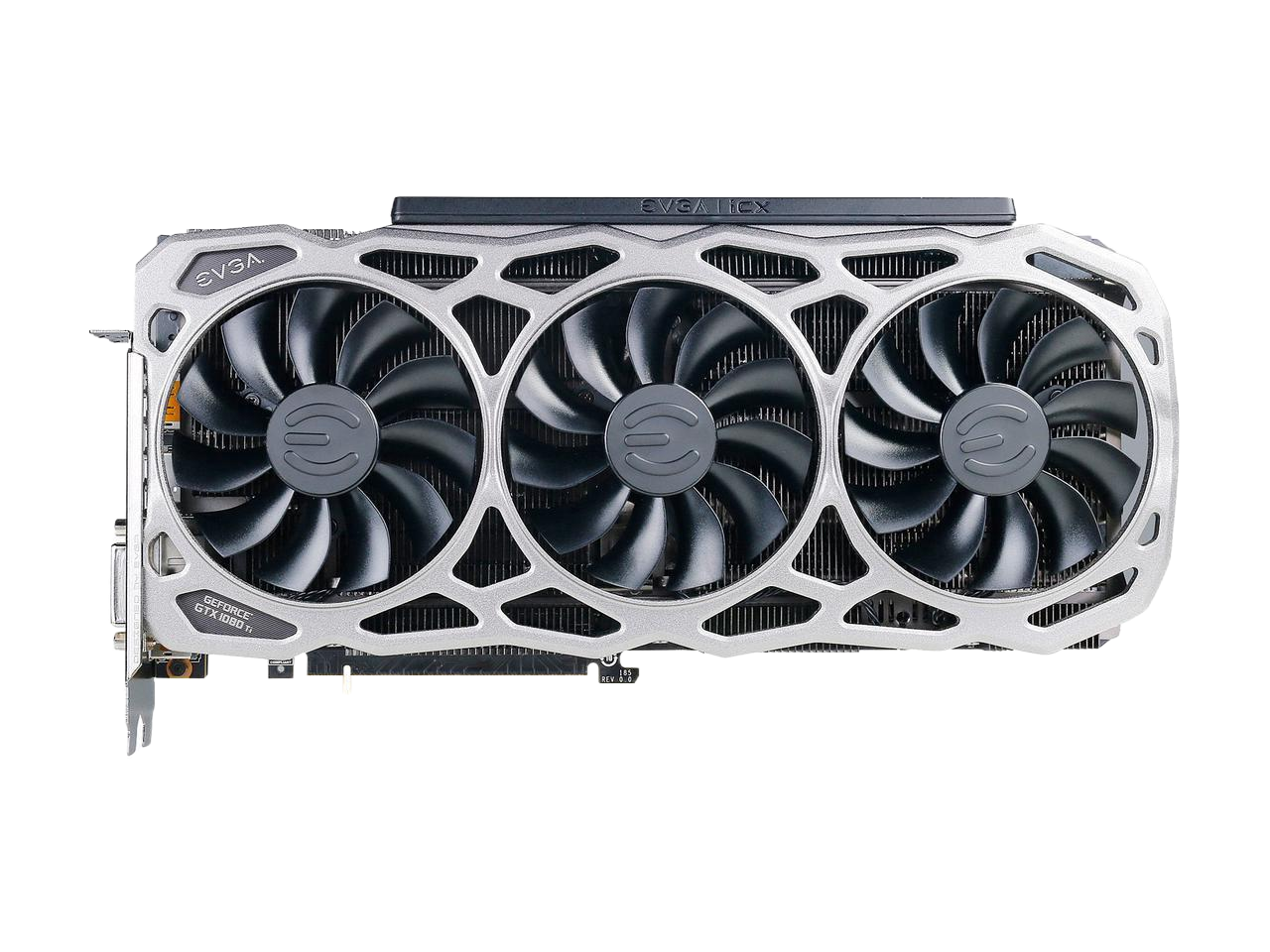

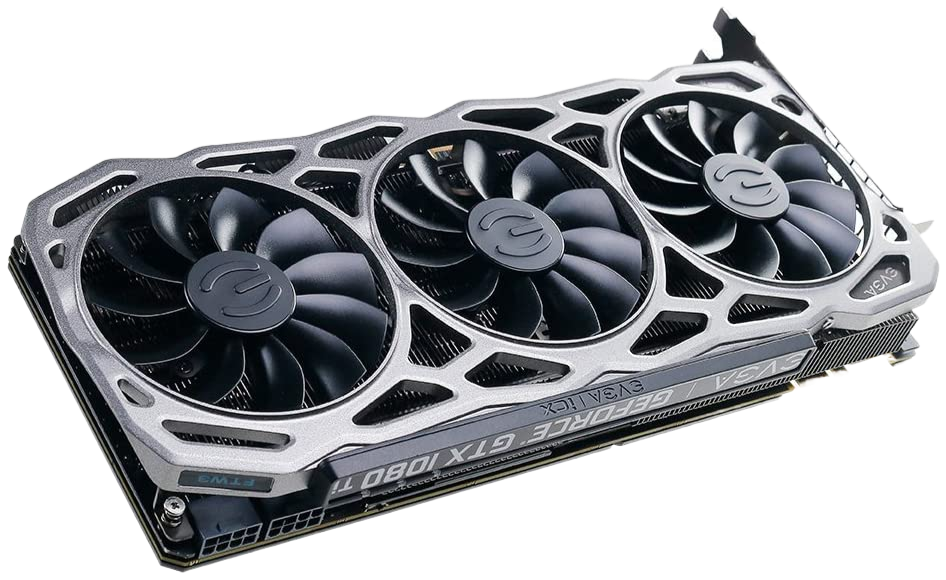

EVGA GeForce GTX 1080 Ti FTW3 GAMING 11GB GDDR5X iCX Technology - 9 Thermal Sensors & RGB LED Video Graphics Card 11G-P4-6696-KR
SKU:
7GC0474
Availability:
In Stock
Free shipping
$749.00
Secure checkout with:
Brand:
EVGA
Overview
SPECS
| Brand | EVGA |
|---|---|
| Model | 11G-P4-6696-KR |
| Interface | PCI Express 3.0 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce GTX 10 Series |
| GPU | GeForce GTX 1080 Ti |
| Core Clock | 1569 MHz |
| Boost Clock | 1683 MHz |
| CUDA Cores | 3584 |
| Effective Memory Clock | 11016 MHz |
|---|---|
| Memory Size | 11GB |
| Memory Interface | 352-Bit |
| Memory Type | GDDR5X |
| DirectX | DirectX 12 |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|

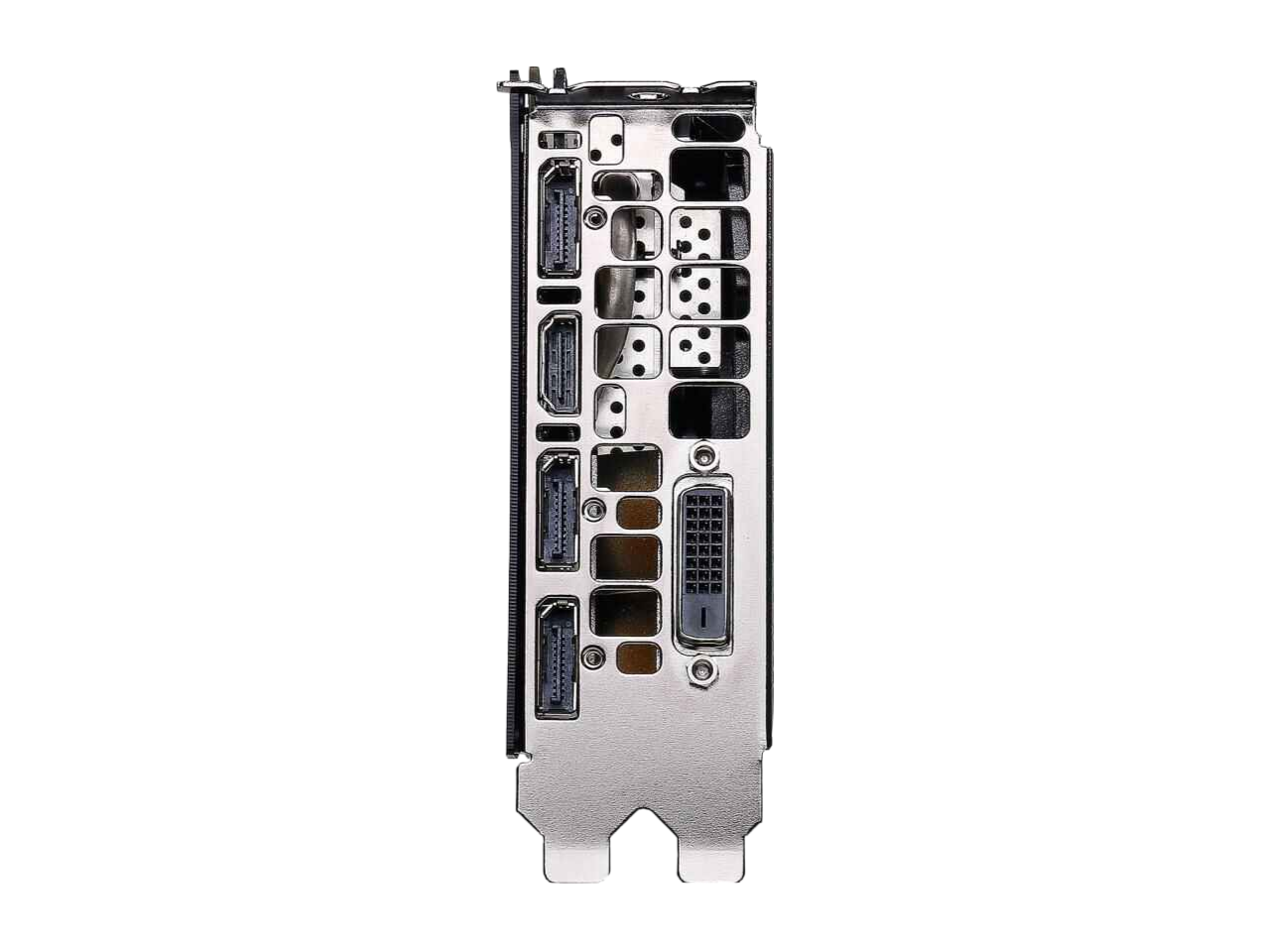

| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| DVI | 1 x Dual-Link DVI-D |
| Max Resolution | 7680 x 4320 |
|---|---|
| SLI Support | SLI Ready |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Operating Systems Supported | Windows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit |
| Thermal Design Power | 250W |
| System Requirements | 600 Watts or greater power supply. PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot. |
| Power Connector | 2 x 8-Pin or 6+2-Pin |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Features | Simultaneous Multi-Projection VR Ready NVIDIA Ansel NVIDIA SLI w/ HB Bridge Support NVIDIA G-SYNC NVIDIA GameStream NVIDIA GPU Boost 3.0 Microsoft DirectX 12 API Vulkan API OpenGL 4.6 Support Max Digital Resolution - 7680x4320 HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI Built for EVGA Precision XOC Asynchronous Fans 9 additional temp sensors to monitor Memory and VRM GPU / Memory / PWM Thermal Status Indicator LEDs New vented heatsink fin design and pin fins for optimized airflow Safety fuse to protect components from damage due to improper installation or other component failures Redesigned cooling with L-shaped contact fins to improve contact surface area for better heat dissipation EVGA iCX Technology |
|---|
| Max GPU Length | 300 mm |
|---|---|
| Card Dimensions (L x H) | 11.80" x 5.62" |
| Slot Width | Dual Slot |
Model
Series:
GTX 10 Series
