SKU:
7GC0096
Availability:
In Stock
$749.00
x
Brand:
EVGA
  • 11GB 352-Bit GDDR5X
  • Core Clock 1480 MHz
  • Boost Clock 1582 MHz
  • 1 x Dual-Link DVI-D 1 x HDMI 2.0b 3 x DisplayPort 1.4
  • 3584 CUDA Cores
  • PCI Express 3.0
  • Brand EVGA
    Model 11G-P4-6694-KR
    Interface
    Interface PCI Express 3.0
    Chipset
    Chipset Manufacturer NVIDIA
    GPU Series NVIDIA GeForce GTX 10 Series
    GPU GeForce GTX 1080 Ti
    Core Clock 1480 MHz
    Boost Clock 1582 MHz
    CUDA Cores 3584
    Memory
    Effective Memory Clock 11016 MHz
    Memory Size 11GB
    Memory Interface 352-Bit
    Memory Type GDDR5X
    3D API
    DirectX DirectX 12
    OpenGL OpenGL 4.6

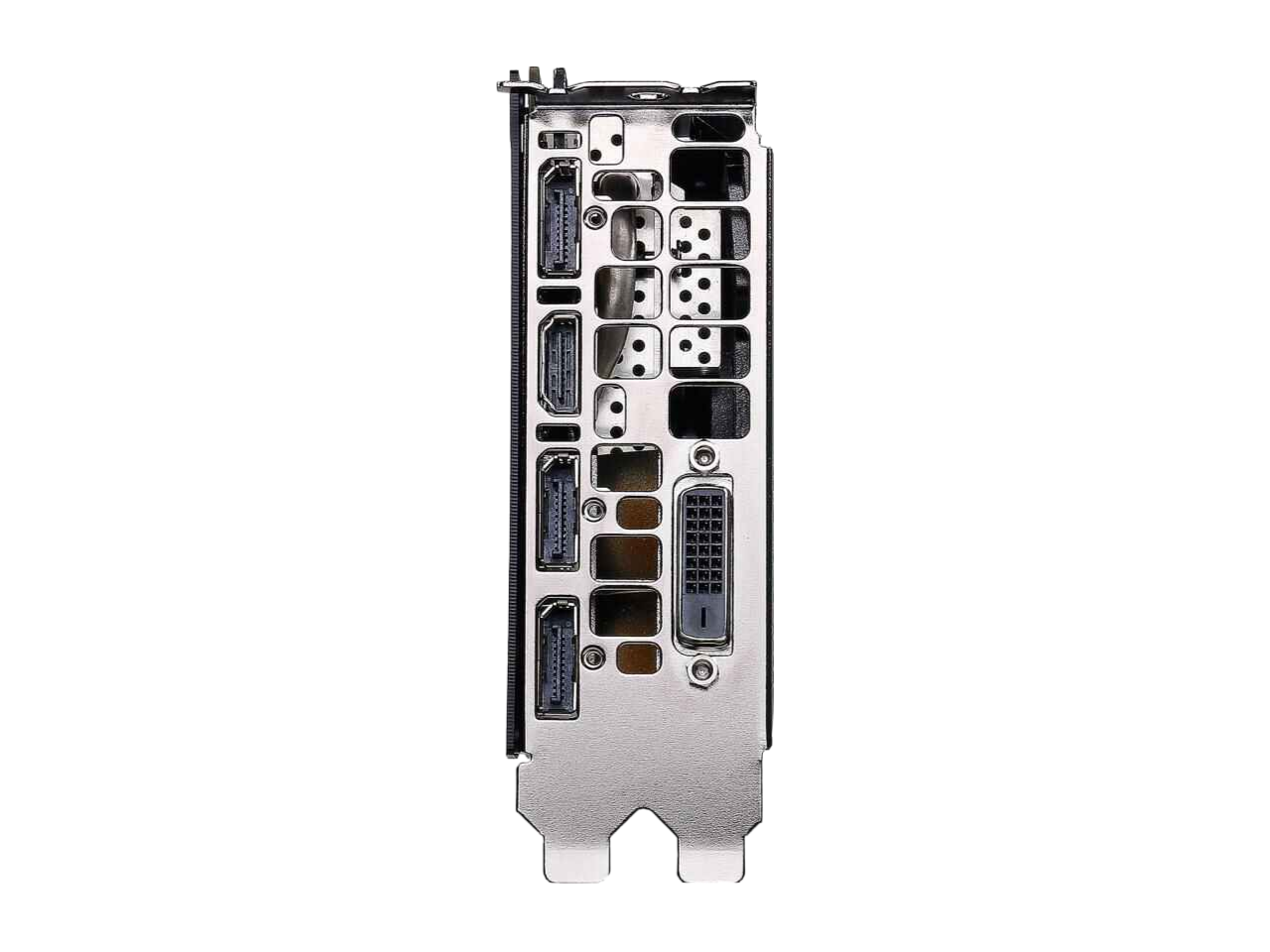

    Ports
    Multi-Monitor Support 4
    HDMI 1 x HDMI 2.0b
    DisplayPort 3 x DisplayPort 1.4
    DVI 1 x Dual-Link DVI-D
    Details
    Max Resolution 7680 x 4320
    SLI Support SLI Ready
    Virtual Reality Ready Yes
    Cooler Triple Fans
    Operating Systems Supported Windows 10 32/64-bit, Windows 8 32/64-bit, Windows 7 32/64-bit
    Thermal Design Power 250W
    System Requirements 600W or greater power supply.
    PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
    Total Power Draw: 280W.
    Power Connector Two available 8-pin or 6+2-pin PCI-E power dongles
    Dual-Link DVI Supported Yes
    HDCP Ready Yes
    Features
    Features Dual BIOS Support

    Simultaneous Multi-Projection

    VR Ready

    NVIDIA Ansel

    NVIDIA SLI w/ HB Bridge Support

    NVIDIA G-SYNC

    NVIDIA GameStream

    NVIDIA GPU Boost 3.0

    Microsoft DirectX 12 API

    OpenGL 4.6 Support

    Max Digital Resolution - 7680x4320

    HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI

    Built for EVGA Precision XOC

    Asynchronous Fans

    9 additional temp sensors to monitor Memory and VRM

    GPU / Memory / PWM Thermal Status Indicator LEDs

    New vented heatsink fin design and pin fins for optimized airflow

    Safety fuse to protect components from damage due to improper installation or other component failures

    Redesigned cooling with L-shaped contact fins to improve contact surface area for better heat dissipation

    EVGA iCX Technology
    Form Factor & Dimensions
    Max GPU Length 300 mm
    Card Dimensions (L x H) 11.80" x 5.62"
    Slot Width Dual Slot

    Model

    Series:
    GTX 10 Series

    Customer Reviews

    Based on 3 reviews
    67%
    (2)
    33%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    K
    Kim Winter
    Best video card

    EVGA Reliable. Been using EVGA since the 200 series and so far it has been an awesome experience.
    I'm happy with my purchase.
    Just only thins I was expected to have aluminum top on the card, but instead it was plastic painted as metal, but it sturdy enough and the backplate goes metal type.

    J
    Joshua T.
    Excellent as expected from EVGA

    The performance is good and nice design and best cooling with ICX tech I can play all games on 2560x1440p - 144 refresh rate Gsync over 100 fps almost games with out of box gpu clock is 1949 mhz and mem 5508 mhz I can reach temp full load at 49-50 c with custom fan and power 61% its relay nice card.

    P
    Pita
    99% Satisfied

    I haven't encountered any problems so far, and the gpu is far better than my old one.

    Write a review
    ( )
