|Interface||PCI Express 3.0|
|GPU Series||NVIDIA GeForce GTX 10 Series|
|GPU||GeForce GTX 1080|
|Core Clock||1721 MHz|
|Boost Clock||1860 MHz|
|Effective Memory Clock||10010 MHz|

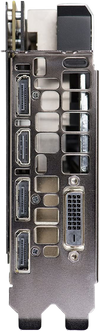

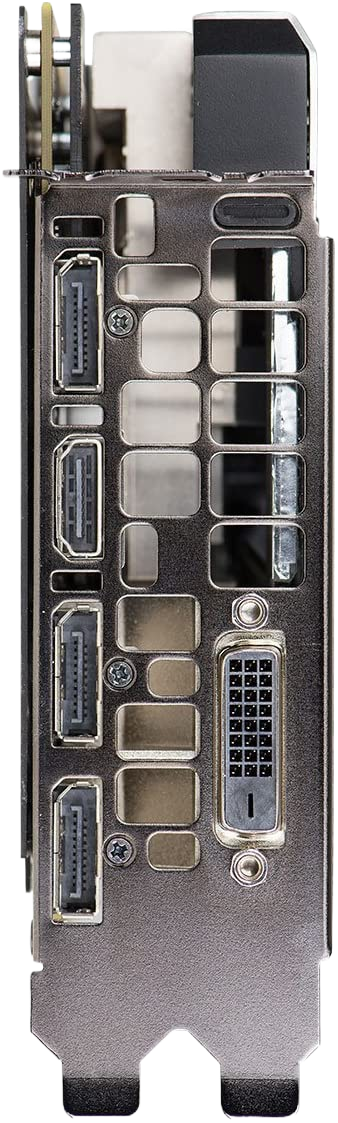

|HDMI||1 x HDMI 2.0b|
|DisplayPort||3 x DisplayPort 1.4|
|DVI||1 x Dual-Link DVI-D|
|Max Resolution||7680 x 4320|
|SLI Support||SLI Ready|
|Virtual Reality Ready||Yes|
|Operating Systems Supported||Windows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit|
|Thermal Design Power||180W|
|System Requirements||Minimum of a 500W power supply
Total Power Draw: 215 Watts
|Power Connector||2 x 8-Pin|
|Dual-Link DVI Supported||Yes|
|Features||EVGA Double BIOS
NVIDIA SLI w/ HB Bridge Support
NVIDIA GPU Boost 3.0
Microsoft DirectX 12
OpenGL 4.5 Support
HDMI 2.0b, DisplayPort 1.4 and DualLink DVI
Built for EVGA Precision XOC
10 Phase Power Design
Adjustable RGB LED
9 additional temp sensors to monitor Memory and VRM
GPU / Memory / PWM Thermal Status Indicator LEDs
New vented heatsink fin design and pin fins for optimized airflow
Safety fuse to protect components from damage due to improper installation or other component failures
Redesigned cooling with Lshaped contact fins to improve contact surface area for better heat dissipation
EVGA iCX Technology
|Max GPU Length||267 mm|
|Card Dimensions (L x H)||10.50" x 5.07"|
|Slot Width||Dual Slot|
Runs games at 1440p flawlessly at 60fps+. Ran the Witcher 3 max settings w/Hairworks off at 60fps with no stuttering.
Stays cool. Never goes over 65C while running on ultra settings.
For the price and performance this device is highly recomended for those gamer enthusiast.
it has a little noise, but it goes when temp goes up. excellent build quality, it looks and feels expensive. clearly built to last.
its a performance beast especially if you're coming from a budget gpu.
-Fans are silent, never seen it go over 76 Celsius running benchmarks on 100% fan profile
-The white LED's are a nice day touch, they are soft and not obnoxiously bright. They go great in my UV lit case.
-Solid construction all throughout.
-Only requires one 8-pin.
I use this card to play games mostly and it does a wonderful job of that. all though ive mostly been stuck on terraria lately wich it bearly notices. But non of that matters just find a good compromise for the price and don't pay through the nose for gaming
