|GPU Series||NVIDIA GeForce GTX 10 Series|
|GPU||GeForce GTX 1070|
|Core Clock||1594 MHz|
|Boost Clock||1784 MHz|
|Effective Memory Clock||8008 MHz|

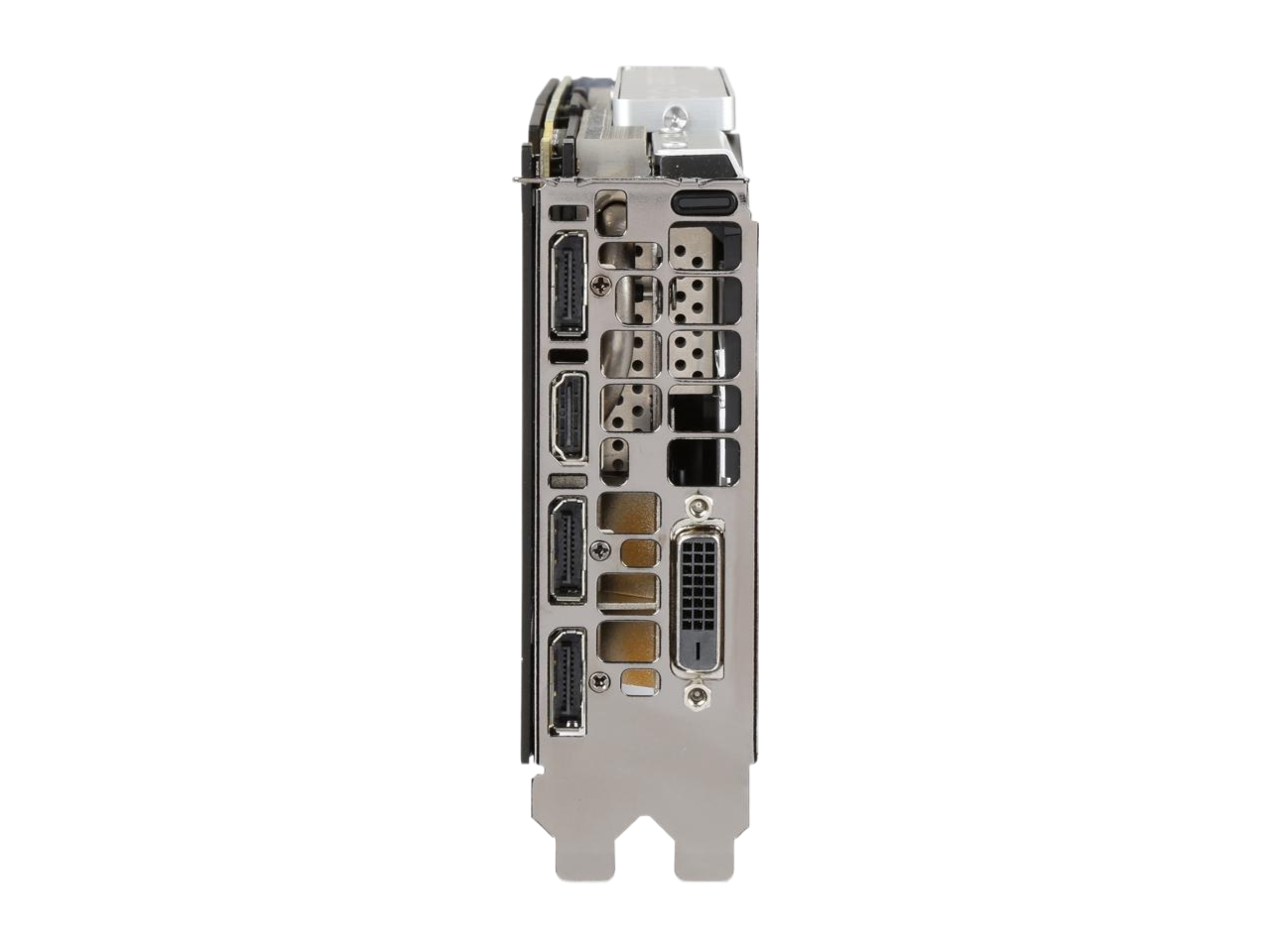

|HDMI||1 x HDMI 2.0b|
|DisplayPort||3 x DisplayPort 1.4|
|DVI||1 x Dual-Link DVI-D|
|Max Resolution||7680 x 4320|
|SLI Support||SLI Ready|
|Virtual Reality Ready||Yes|
|Operating Systems Supported||Windows 10 32/64bit, Windows 8 32/64bit, Windows 7 32/64bit|
|Thermal Design Power||150W|
|System Requirements||500W or greater power supply.
PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
|Dual-Link DVI Supported||Yes|
NVIDIA SLI w/ HB Bridge Support
NVIDIA GPU Boost 3.0
Microsoft DirectX 12
OpenGL 4.5 Support
HDMI 2.0b, DisplayPort 1.4 and Dual-Link DVI
Built for EVGA Precision XOC
9 additional temp sensors to monitor Memory and VRM
GPU / Memory / PWM Thermal Status Indicator LEDs
New vented heatsink fin design and pin fins for optimized airflow
Safety fuse to protect components from damage due to improper installation or other component failures
Redesigned cooling with Lshaped contact fins to improve contact surface area for better heat dissipation
EVGA iCX Technology
|Max GPU Length||267 mm|
|Card Dimensions (L x H)||10.50" x 4.38"|
|Slot Width||Dual Slot|
By far the best gpu I've ever owned, was looking to spend less than $800, and also wanted a EVGA, they build great cards. plenty of ports for multiple monitors. I run mine on a 1080p, with g-sync at 144hz. Play BF1 and WoW, did COD beta too, running anywhere from 120fps up to 230fps.
It runs games flawlessly on my 1080p 144hz monitor.
The card stays below 74 degrees Celsius.
It can overclock pretty far.
It is very quiet.
-Solid build quality, THE reason to choose this one over others.
-Hardware video encoder makes streaming or recording possible without any extra hardware to keep the performance.
It seems to be built extremely well. It worked on first power up. Nice colors.
