SKU:
7GC0555
Availability:
In Stock
Free shipping
$499.00
Secure checkout with:
Brand:
Dell
  • 12GB
  • GDDR5
  • PCIe 3.0 x16
  • Brand Dell
    Model VCQM6000-24GB-PB
    Interface
    Interface  PCI Express 3.0 x16
    Chipset
    Chipset Manufacturer NVIDIA
    GPU  Quadro M6000
    CUDA Cores  3072
    Memory
    Memory Size 24GB
    Memory Interface  384-bit
    Memory Type  GDDR5
    3D API
    DirectX  DirectX 12
    OpenGL  OpenGL 4.5

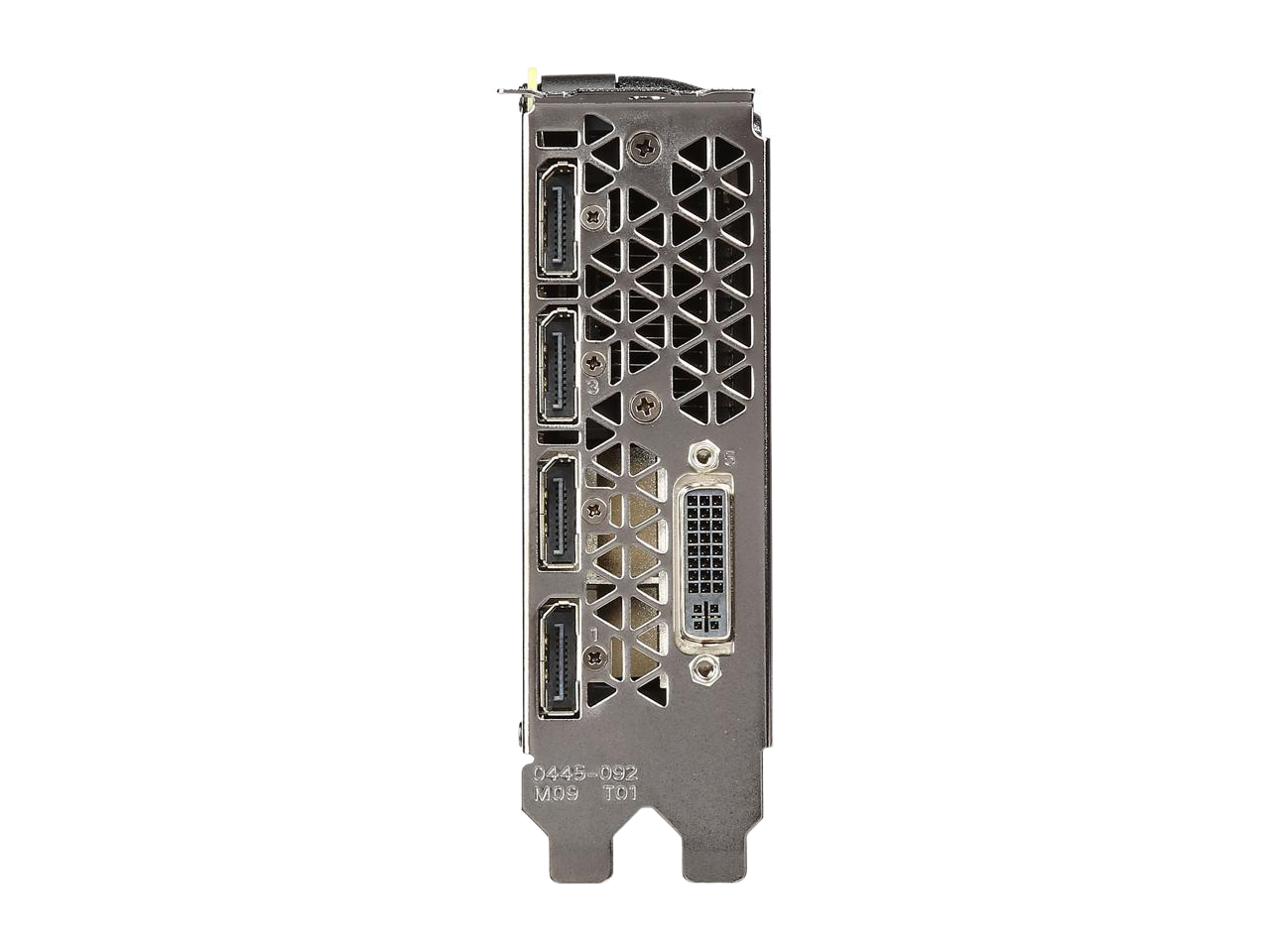

    Ports
    DisplayPort  4 x DP 1.2
    DVI  1 x DL DVI-D
    Details
    Digital Resolution 4096 x 2160
    Analog Resolution 2048 x 1536@85Hz
    Max Displays Per Board 4
    3D Vision Pro  For Windows & Linux
    Cooler Ultra-quiet active fansink
    Dual-Link DVI Supported Yes
    HDCP Ready  Yes
    Operating Systems Supported Microsoft Windows 10, 8.1, 8, 7, Linux, or Solaris
    System Requirements Maximum Power Consumption: 250W

    PCIe x16 Gen 3 (preferred) expansion slot

    2GB or more of system memory, 8GB recommended

    200MB of available disk space for full driver installation

    Blu-ray or DVD-ROM drive

    Internet connection (if preferred for driver installation)

    DisplayPort, DVI, or VGA compatible display(s)
    Features
    Features 3D Graphics Architecture

    - Scalable geometry architecture
    - Hardware tessellation engine
    - NVIDIA GigaThread engine with dual copy engines
    - Shader Model 5.0 (OpenGL 4.5 and DirectX 12)
    - Up to 16K x 16K texture and render processing
    - Transparent multisampling and super sampling
    - 16x angle independent anisotropic filtering

    Parallel Computing Capabilities

    - SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
    - HyperQ (allows multiple CPU cores to simultaneously utilize a single M6000 GPU to execute independent compute kernels)
    - Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)
    - API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
    - NVIDIA Parallel Data Cache hierarchy (per SM L1 and unified L2 caches)
    - Error-Correction Code (ECC) memory on graphics memory
    - 96KB of RAM (dedicated shard memory per SM)

    Advanced Display Features

    - 30-bit color (10-bit per each red, green and blue channel)
    - Support for any combination of four connected displays
    - DisplayPort 1.2 (supporting resolutions such as 4096 x 2160 at 60Hz)
    - DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
    - DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
    - Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
    - DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI cables optionally available (resolution support based on dongle specifications)

    DisplayPort and HDMI Digital Audio

    - Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
    - Data rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz
    - Word sizes of 16-bit, 20-bit, and 24-bit
    Form Factor & Dimensions
    Dimensions (L x H) 10.50" x 4.40"
