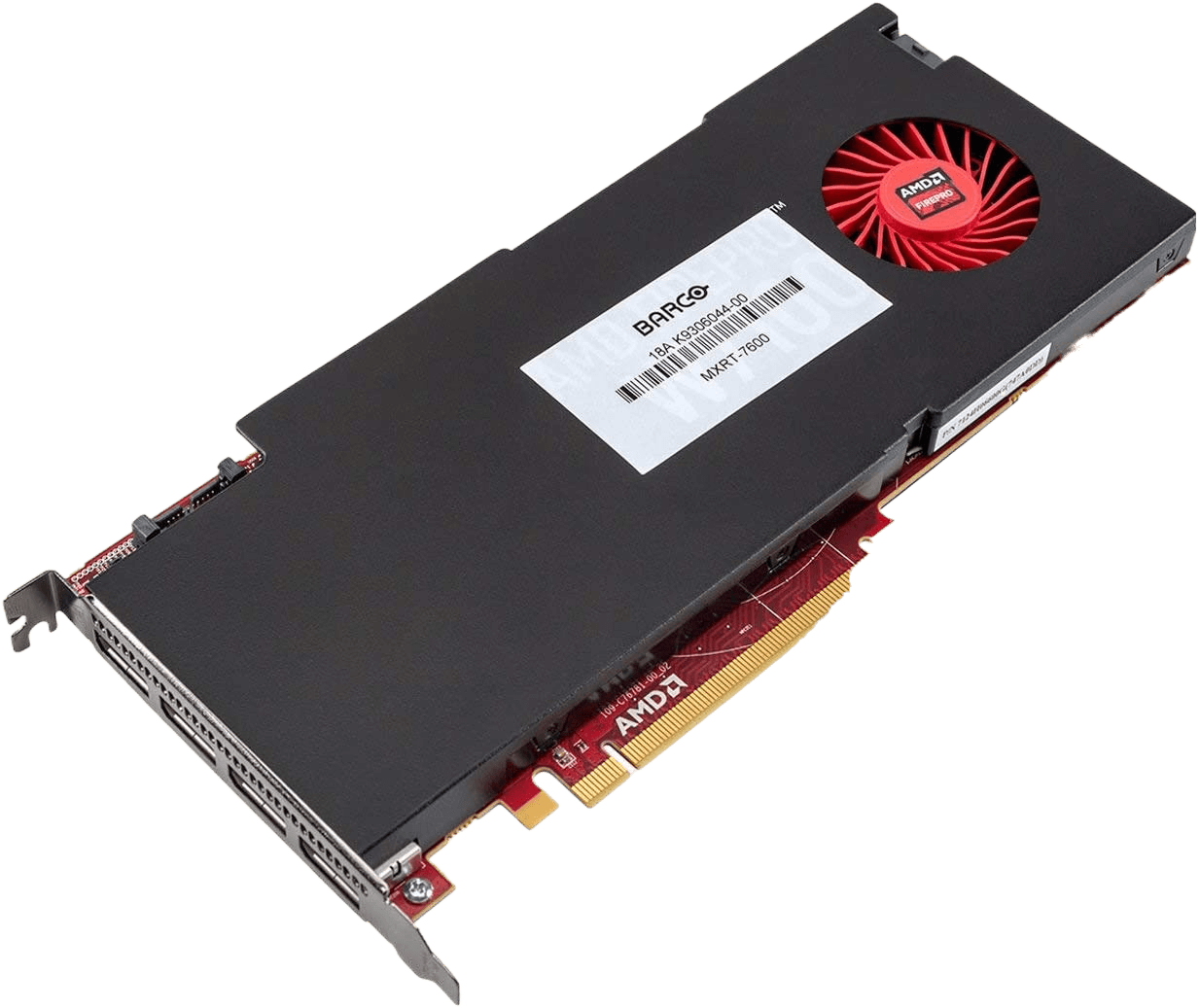

The MXRT-7600 is a high-end 3D PCIe display controller featuring the latest AMD FireProTM 3D technology for leading-edge performance, flexibility and reliability.
Fitted with 8GB of memory and an ultra-fast GPU, the top-of-the-line MXRT-7600 presents you with unmatched processing power for large medical datasets.
The MXRT-7600 supports DirectX, OpenGL, and OpenCL and is compatible with Microsoft Windows 7, Windows 8.1, and Windows 10.
Bus compatibility PCIe Gen3 x16
Power consumption 150 W
Form factor 248mm (L) x 110mm (H)
single PCIe slot wide Operating system Windows 7 (32/64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit)
Platforms Intel and AMD architectures
Power Connector One 2x3 power connector
Graphics accelerator ATI FirePro TM
Display memory 8 GB GDDR5
Memory interface 256-bit
Memory bandwidth 160 GB/s
Pixel depth 32-bit pixels (supports 8-bit and 10-bit per color channel)
Electrical standard DisplayPort (DP) complying to v 1.2 Direct 3D hardware support Microsoft DirectX v 11.2, Vertex Shader 5.0, Pixel Shader 5.0
OpenGL hardware support OpenGL 4.4 OpenCL hardware support OpenCL 2.0
Connectors 4-DisplayPort (DP)
