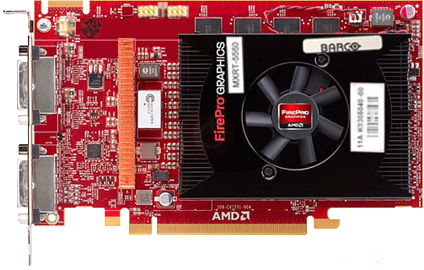

PRODUCT SPECIFICATIONS: MXRT-5550
Bus compatibility PCIe Gen3 x16
Power consumption 75 W
Form factor 184.15 mm (7.2")(L) x 111 mm (4.4") (H) single PCIe slot wide
Operating system Windows 7 -32/64-bit
Windows 8.1 -32/64-bit
Platforms Intel and AMD architectures
Graphics accelerator ATI FirePro TM
Display memory 2 GB GDDR5
Memory interface 256-bit
Memory bandwidth 102.3 GB/s
Pixel depth 32-bit pixels (supports 8-bit and 10-bit per color channel)
Electrical standard Dual-Link DVI
Direct3D hardware support Microsoft® DirectX v11.1, Vertex Shader 5.0, Pixel Shader 5.0
OpenGL hardware support OpenGL 4.2
OpenCL hardware support OpenCL 1.2
Connectors 2-DVI-I
Supported resolutions Up to 5.8MP grayscale at full refresh rate (VGA at boot-up)
Approvals and compliance FCC Part 15 Class B, EN 55022 Limit B, EN 55024, UL-60950-1, BMSI CNS, CISPR-22/24, IEC60950-1,
VCCI, CSA C22.2,EU RoHS directive (2011/65/EC), Certificate of Information & Communication
Operational temperature 0° to 60°C (32° to 140° F)
