|Interface||PCI Express 4.0|
|GPU Series||NVIDIA GeForce RTX 30 Series|
|GPU||GeForce RTX 3090|
|Core Clock||1770 MHz|
|Boost Clock||OC Mode: 1770 MHz
Gaming Mode: 1740 MHz
|Effective Memory Clock||19.5 Gbps|

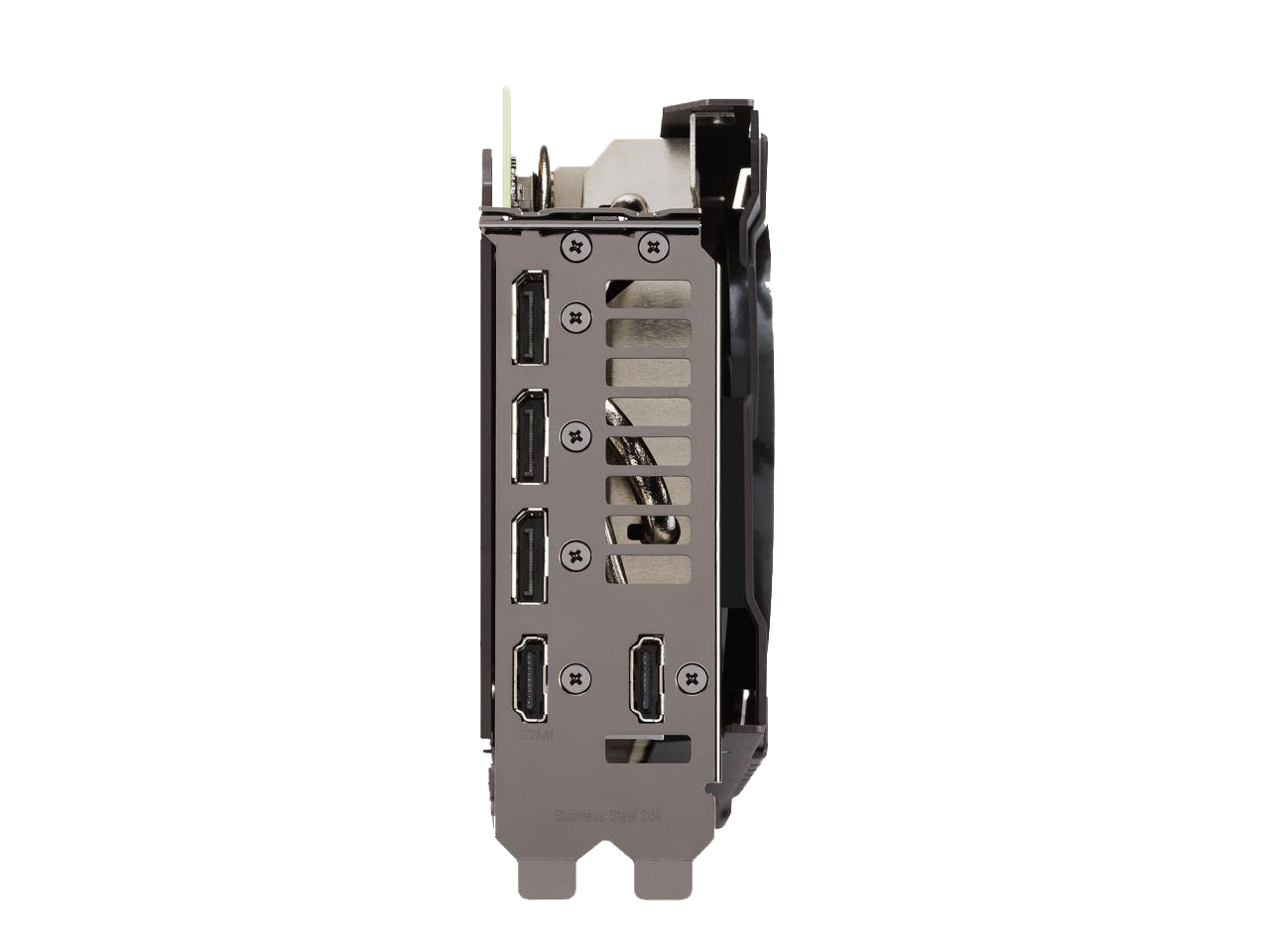

|HDMI||2 x HDMI 2.1|
|DisplayPort||3 x DisplayPort 1.4a|
|Max Resolution||7680 x 4320|
|SLI Support||SLI Ready|
|Virtual Reality Ready||Yes|
|Thermal Design Power||750W|
|System Requirements||Recommended PSU: 850W|
|Recommended PSU Wattage||850W|
|Power Connector||2 x 8-Pin|
|Features||NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
Military-grade Capacitors and other TUF components enhance durability and performance.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
|Max GPU Length||300 mm|
|Card Dimensions (L x H)||11.81" x 5.00"|
|Slot Width||2.7 slot|
RTX 30 Series
PCI Express 4.0
OC Mode: 1770 MHz Gaming Mode: 1740 MHz
2 x HDMI 2.1
3 x DisplayPort 1.4a
