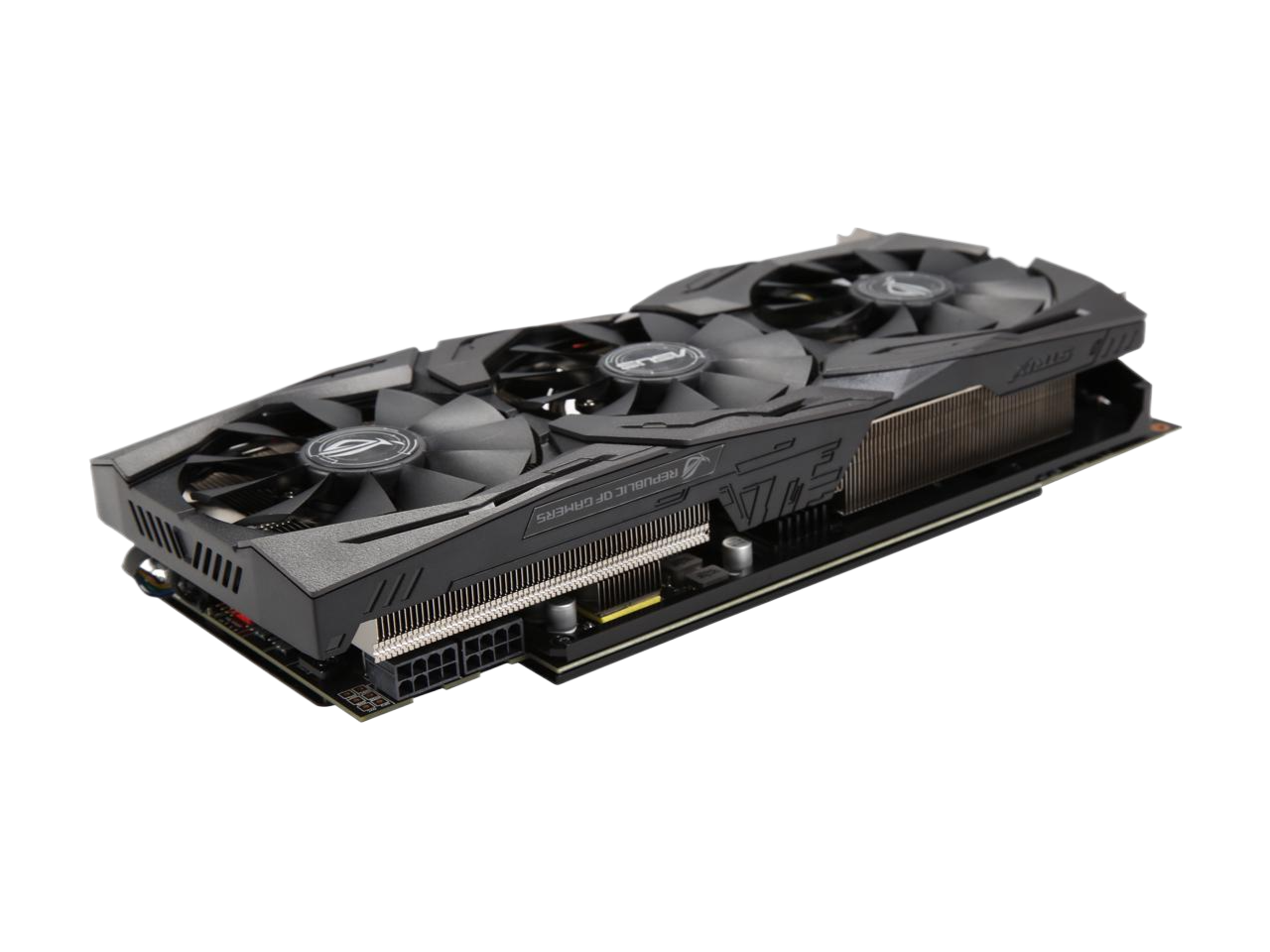

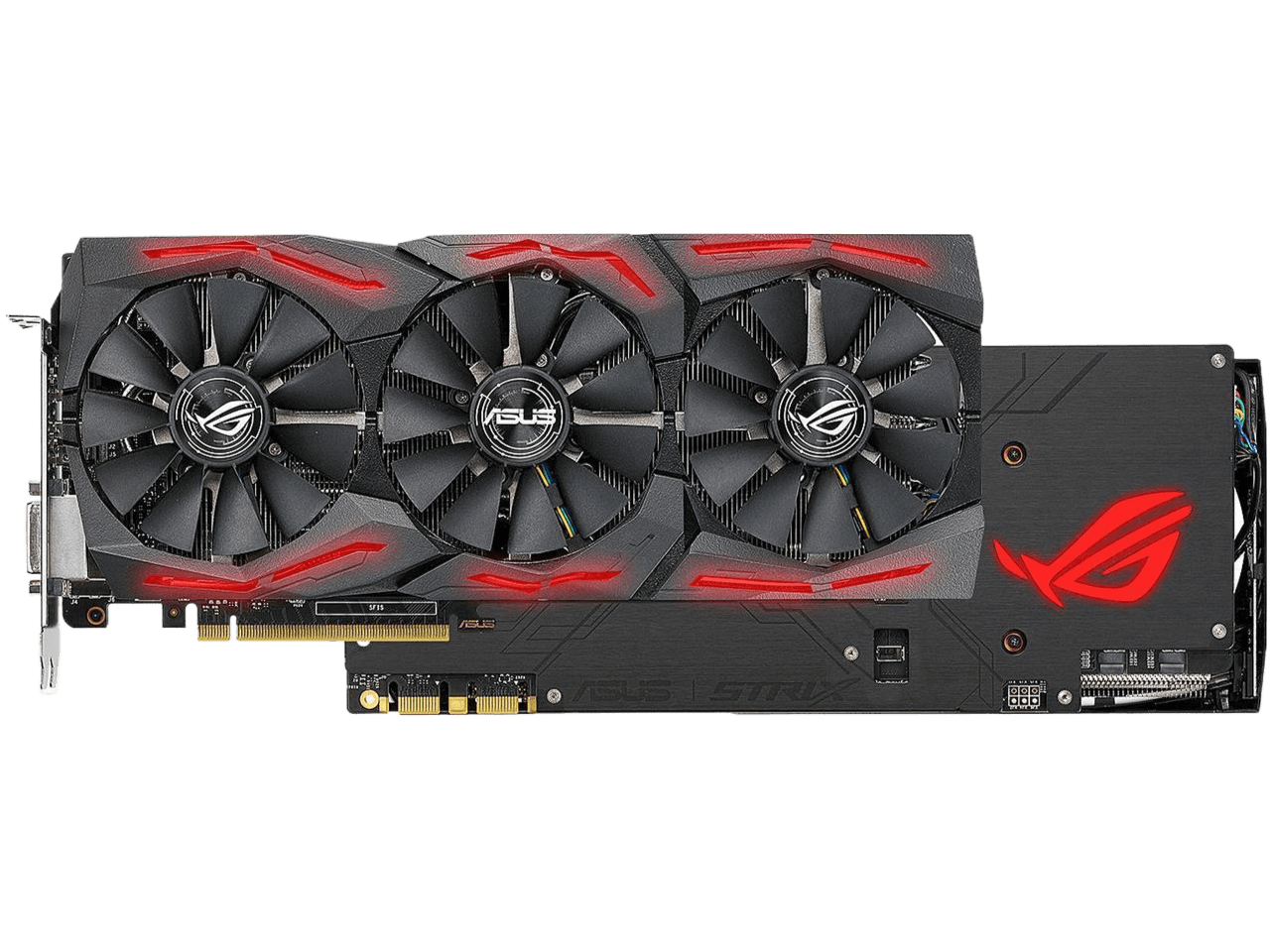

ASUS ROG STRIX AMD Radeon RX 5600 XT OC Edition Gaming Graphics Card Full HD Gaming Axial-tech Fan Design Metal Backplate ROG-STRIX-RX5600XT-O6G-GAMING
SKU:
7GC0704
Availability:
In Stock
Free shipping
$495.00
Secure checkout with:
Brand:
ASUS
Overview
REVIEWS
| Brand | ASUS |
|---|---|
| Series | ROG STRIX |
| Model | ROG-STRIX-RX5600XT-O6G-GAMING |
| Interface | PCI Express 4.0 |
|---|
| Chipset Manufacturer | AMD |
|---|---|
| GPU Series | AMD Radeon RX 5600 Series |
| GPU | Radeon RX 5600 XT |
| Boost Clock | OC mode: 1770 MHz Gaming mode: 1750 MHz |
| Stream Processors | 2304 Stream Processors |
| Effective Memory Clock | 14 Gbps * Please find the guideline for VRAM OC Tool: https://www.asus.com/support/FAQ/1042818 |
|---|---|
| Memory Size | 6GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| OpenGL | OpenGL 4.6 |
|---|
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| Max Resolution | 7680 x 4320 |
|---|---|
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Thermal Design Power | 160W |
| System Requirements | Recommended PSU: 450W |
| Recommended PSU Wattage | 450W |
| Power Connector | 1 x 6-Pin, 1 x 8-Pin |
| HDCP Ready | 2.3 |
| Features | OC Edition: GPU Boost Clock up to 1770 MHz (OC Mode) / up to 1750 MHz (Gaming Mode). Memory Clock up to 14 Gbps. Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. 0dB technology lets you enjoy light gaming in relative silence. 2.7-slot design expands cooling surface area to make the most of the three powerful Axial-tech fans. Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles sans software. Auto-Extreme Technology uses automation to enhance reliability. Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages. MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer. ASUS FanConnect II equips two hybrid-controlled fan 2 headers for optimal system cooling. |
|---|
| Max GPU Length | 304 mm |
|---|---|
| Card Dimensions (L x H) | 11.96" x 5.12" |
| Slot Width | 2.7-slot |
