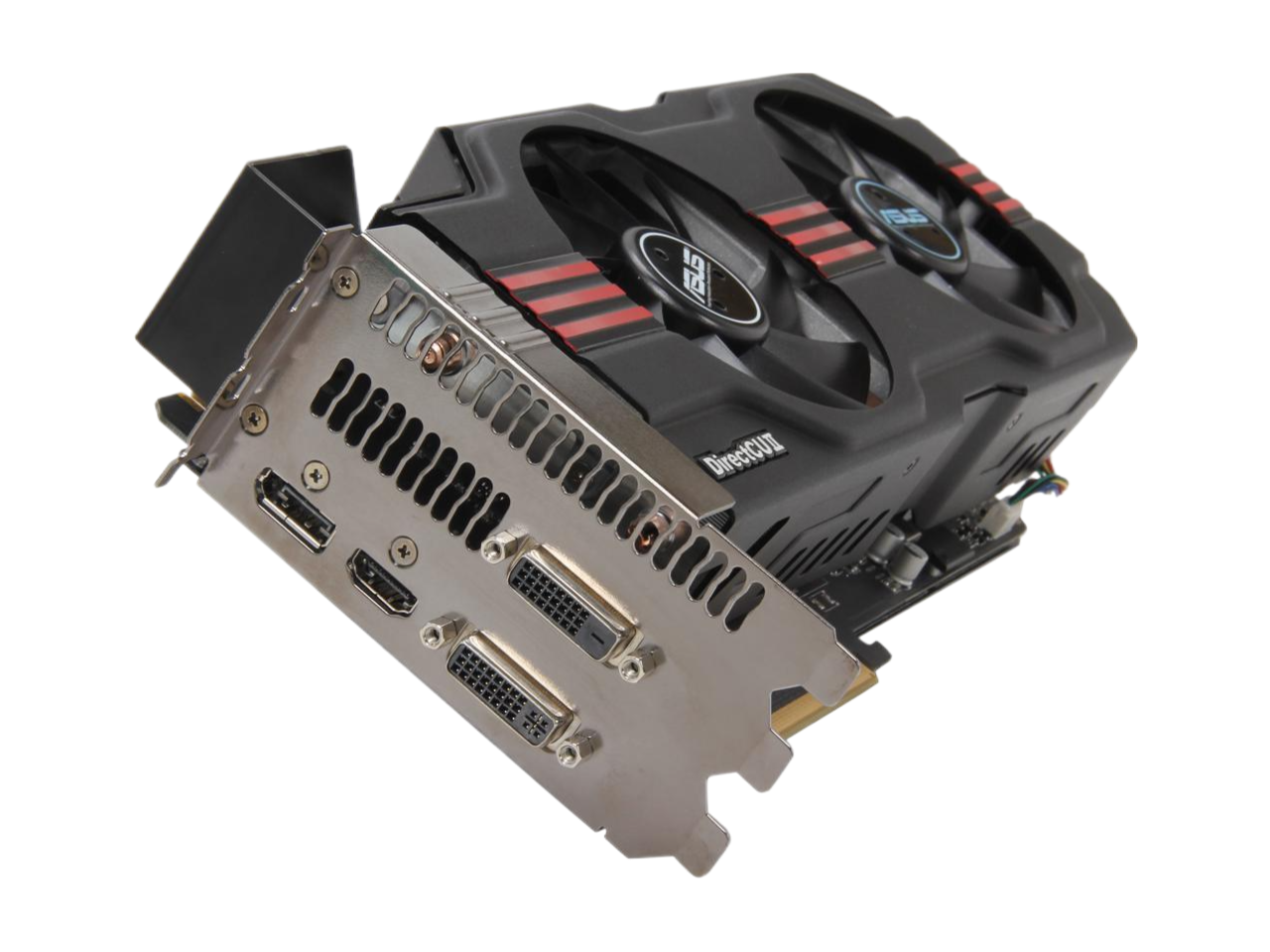

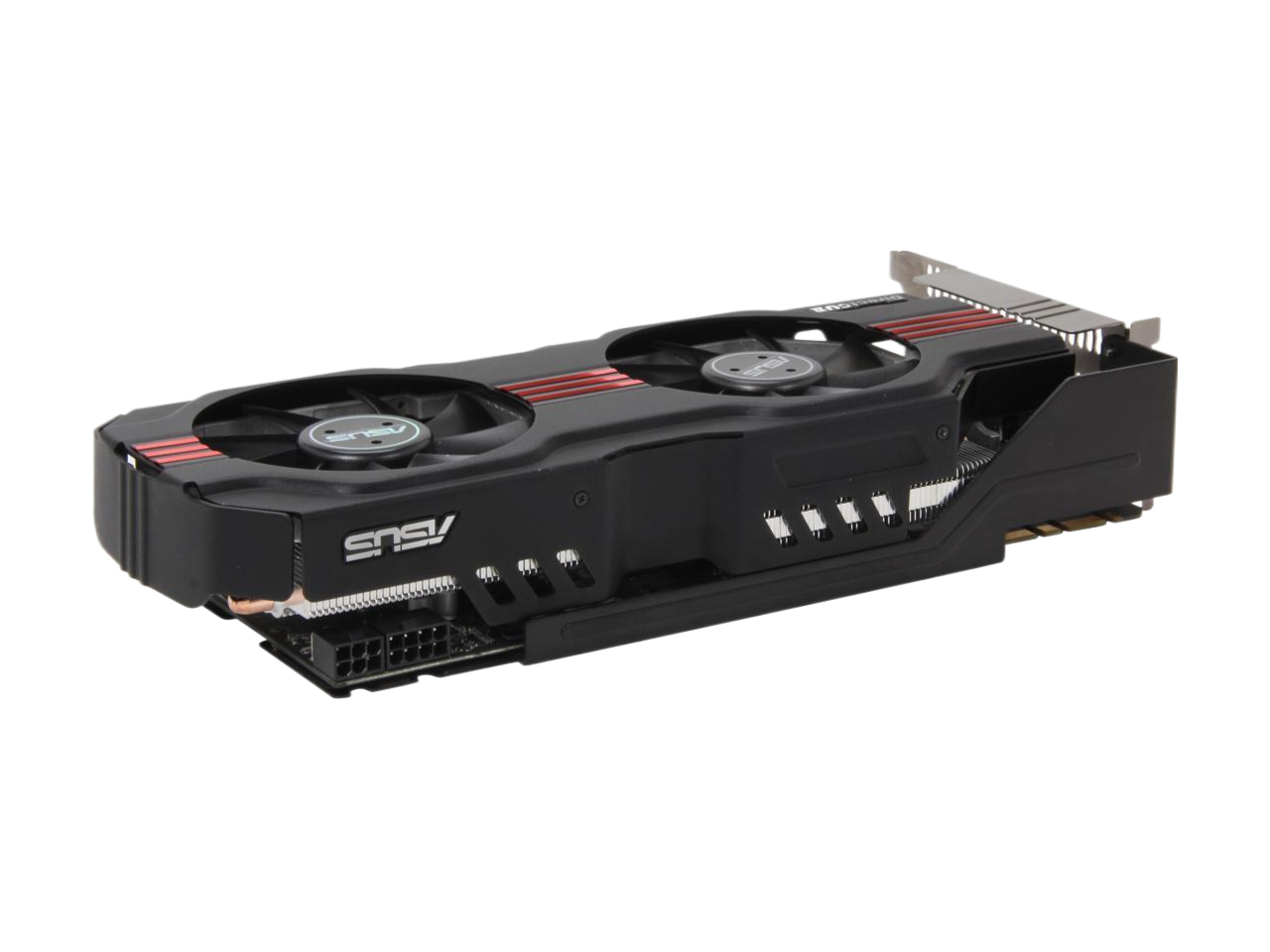

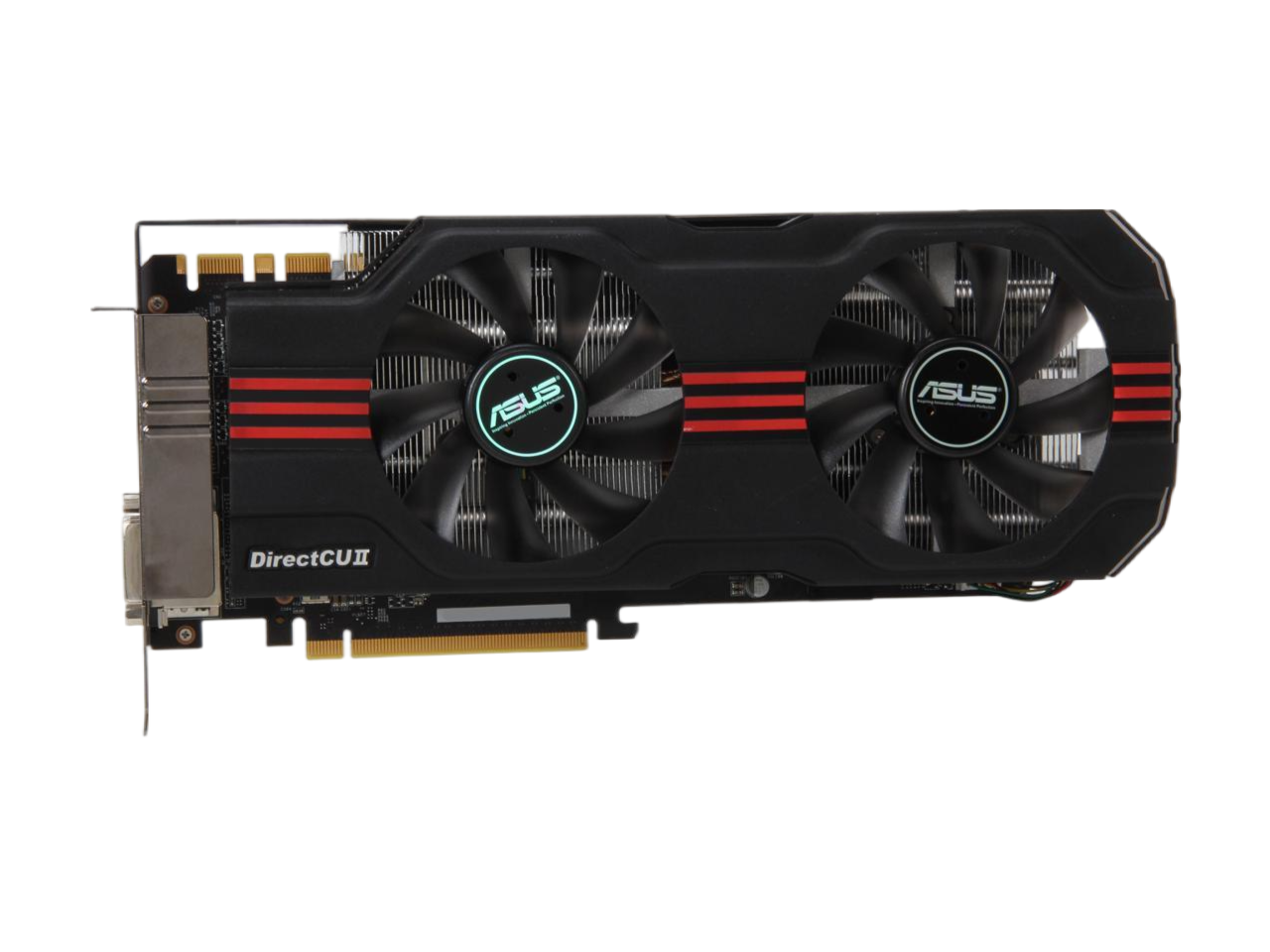

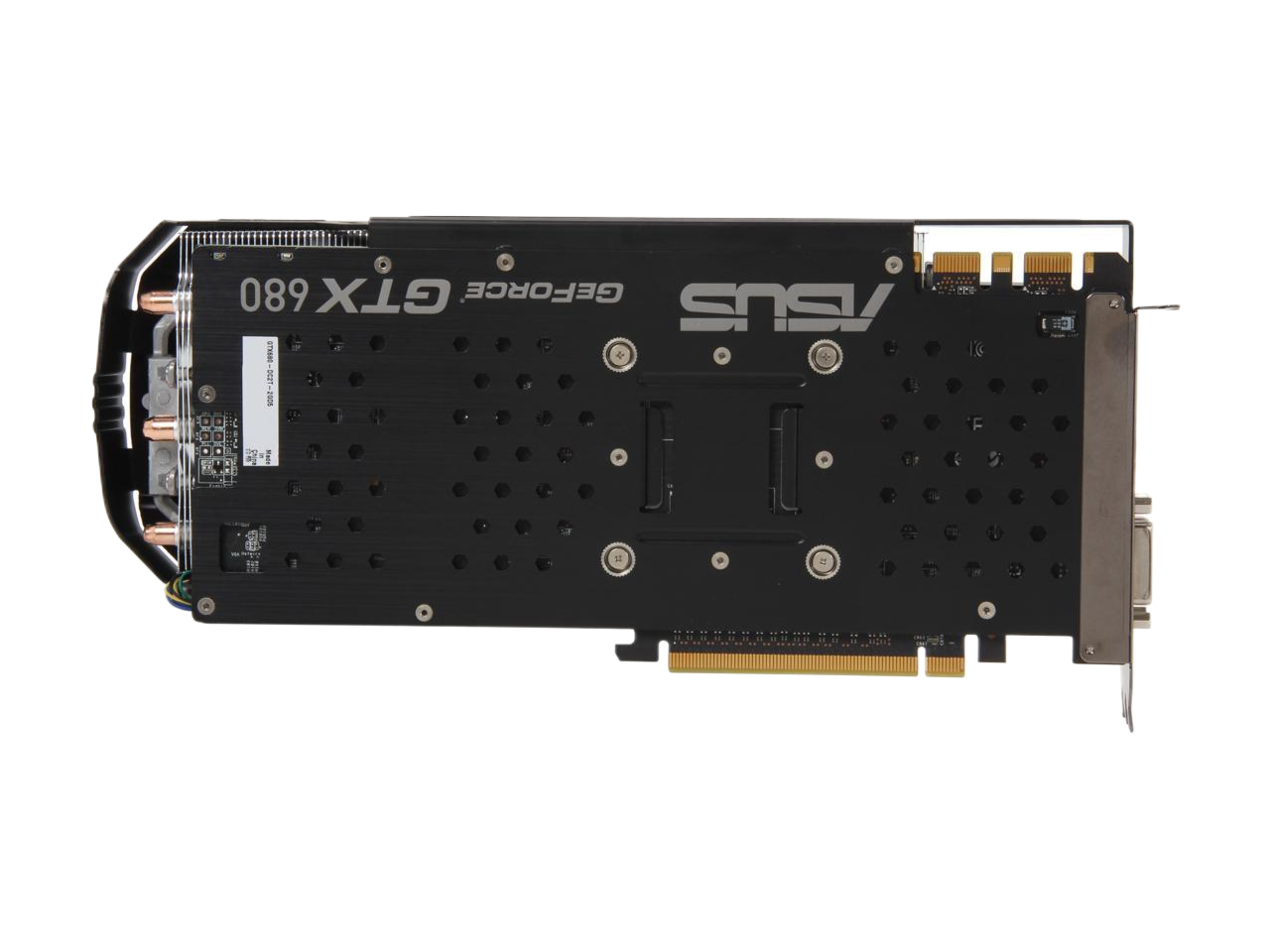

ASUS GeForce GTX 680 2GB GDDR5 PCI Express 3.0 x16 SLI Support Video Card GTX680-DC2T-2GD5
SKU:
7GC0592
Availability:
In Stock
Free shipping
$398.00
Secure checkout with:
Brand:
ASUS
Overview
REVIEWS
| Brand | ASUS |
|---|---|
| Model | GTX680-DC2T-2GD5 |
| Interface | PCI Express 3.0 x16 |
|---|
| Chipset Manufacturer | NVIDIA |
|---|---|
| GPU Series | NVIDIA GeForce GTX 600 Series |
| GPU | GeForce GTX 680 |
| Core Clock | 1137MHz |
| Boost Clock | 1201MHz |
| CUDA Cores | 1536 |
| Effective Memory Clock | 6008 MHz |
|---|---|
| Memory Size | 2GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR5 |
| DirectX | DirectX 11 |
|---|---|
| OpenGL | OpenGL 4.2 |

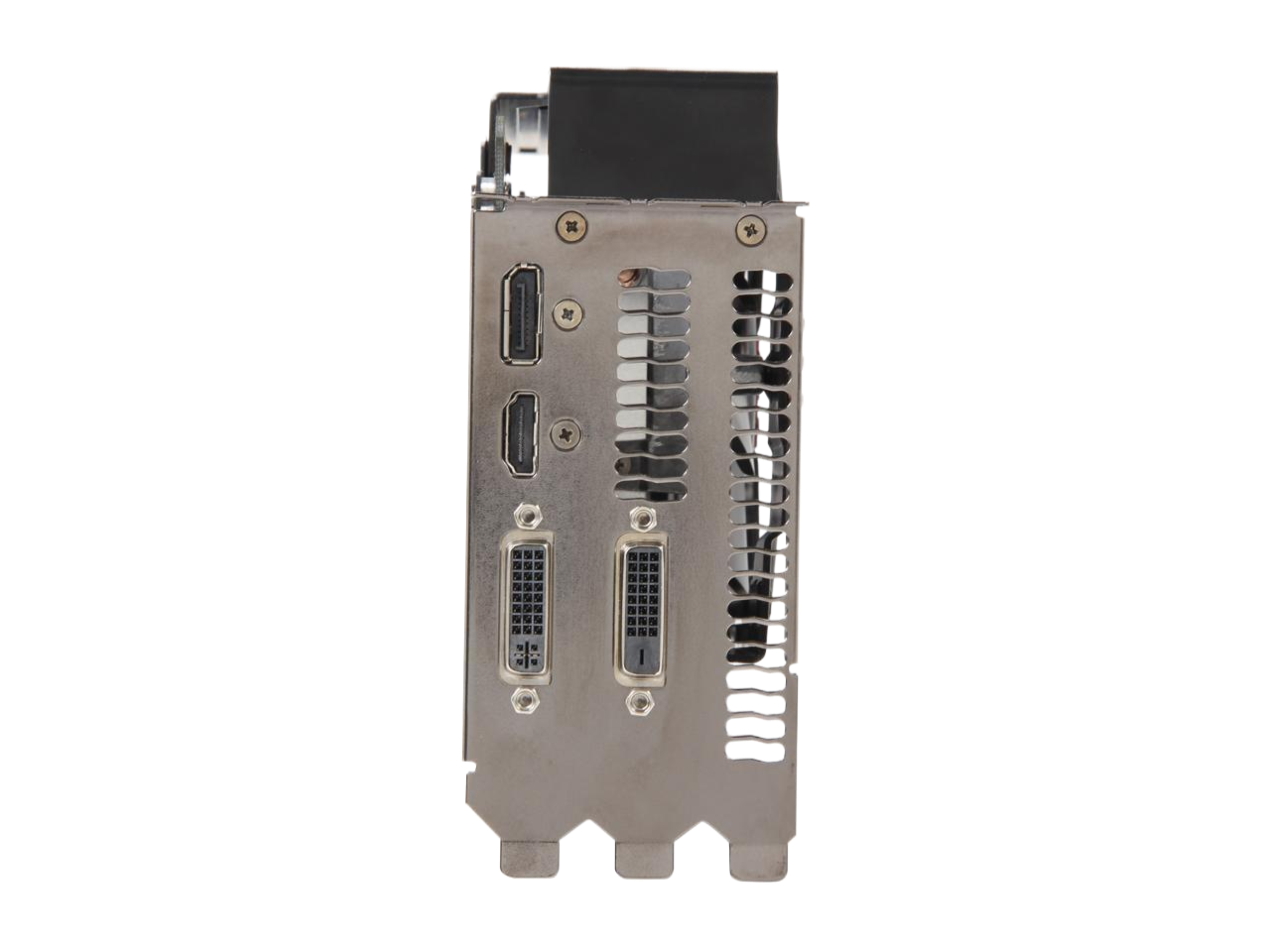

| HDMI | 1 x HDMI |
|---|---|
| DisplayPort | 1 x DisplayPort |
| DVI | 2 x DVI |
| RAMDAC | 400MHz |
|---|---|
| Max Resolution | 2560 x 1600 (DL-DVI) |
| 3D VISION Game Ready | Yes |
| SLI Support | SLI Ready |
| Cooler | Double Fans |
| Thermal Design Power | 195W |
| System Requirements | Up to 300W Power Requirement |
| Power Connector | 1 x 6-Pin + 1 x 8-Pin |
| Dual-Link DVI Supported | Yes |
| HDCP Ready | Yes |
| Features | Cranked 143MHz over reference for an ultimate boost clock of 1201MHz All new DirectCU thermal design utilizes five all-copper heatpipes and 20% bigger dissipation area, achieving 20% cooler and 14dB quieter performance than reference Acclaimed DIGI+ VRM with 10-phase Super Alloy Power technology delivers precise digital power and enhanced overclocking headroom. VGA Hotwire allows you to plug and solder wires on the card's voltage regulators and accurately read and control Vcore, Vmem, and PLL voltages on a hardware level GPU Tweak utility helps you modify and tune boost clock, power target , and fan performance via an intuitive interface |
|---|
| Card Dimensions (L x H) | 11.8" x 5.1" x 2.3" |
|---|
