GPU Specifications:

GPU Architecture: Vega20

Lithography: TSMC 7nm FinFET

Stream Processors: 3840

Compute Units: 60

Peak Single Precision (FP32) Performance: 13.1 TFLOPs

Peak Double Precision (FP64) Performance 6.5 TFLOPs

OS Support: Windows 11 - 64-Bit Edition

Requirements:

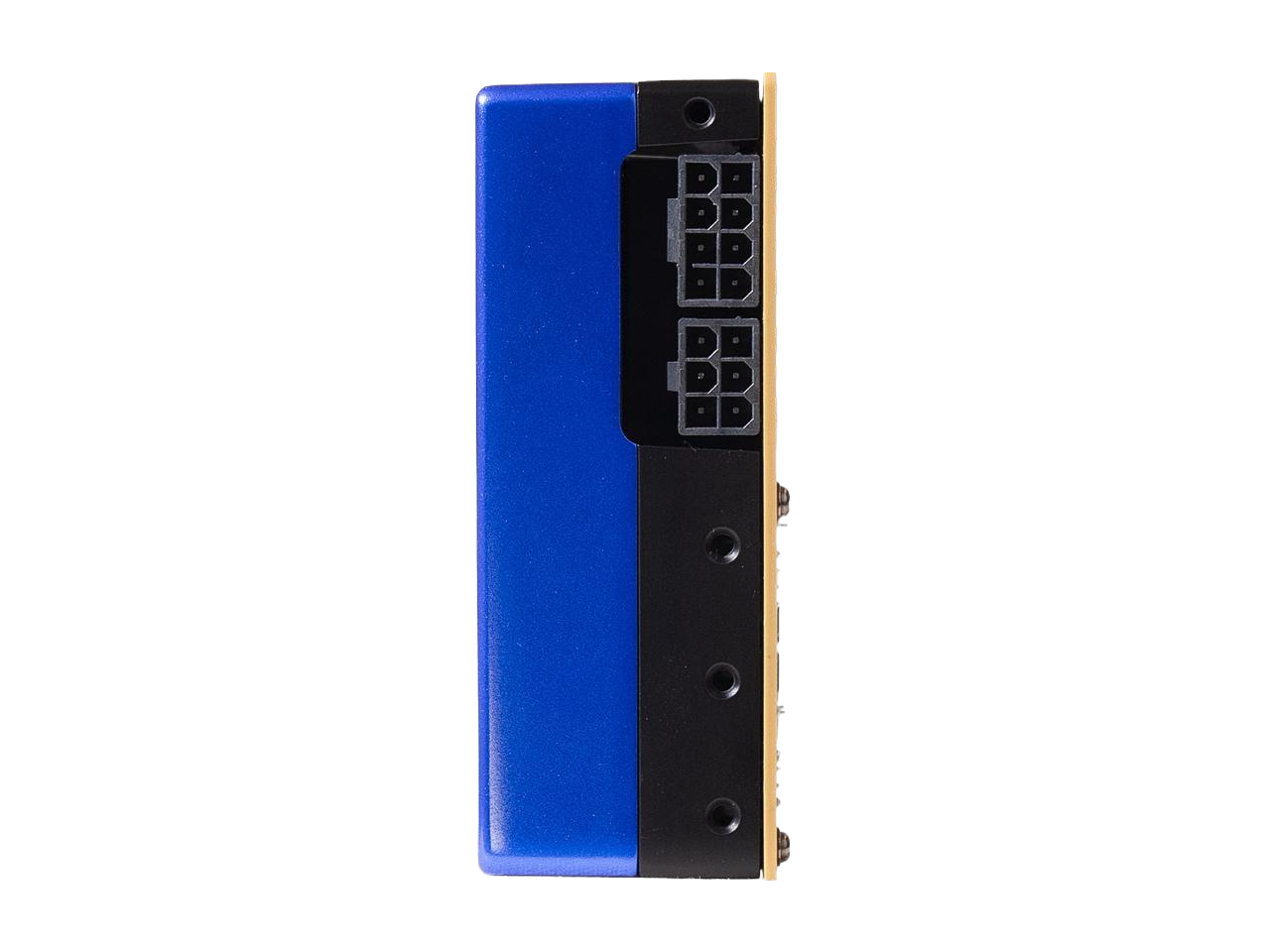

External Power Connectors:1x PCIe 6-pin, 1x PCIe 8-pin

Total Board Power (TBP): 250W Peak

GPU Memory:

Dedicated Memory Size: 16 GB

Dedicated Memory Type: HBM2

Memory Interface: 4096-bit

Peak Memory Bandwidth: Up to 1024 GB/s

Memory ECC Support: Yes

Board Specifications:

Form Factor: PCIe® Add-in Card

Bus Type: PCIe® 4.0 x16

Cooling: Active

Display Outputs:

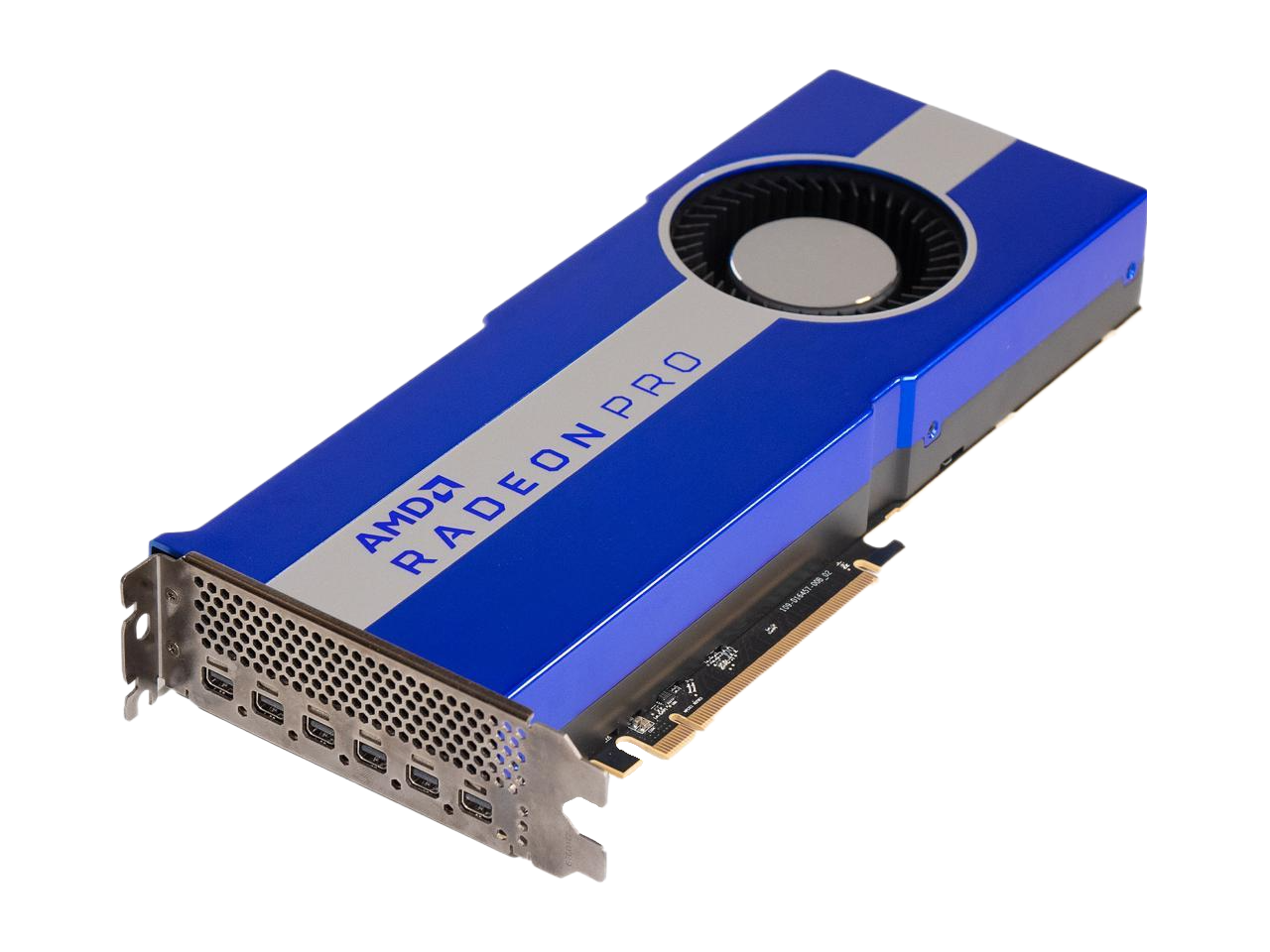

DisplayPort™: 6x DisplayPort 1.4

HDMI™: None

DVI: None

Dimensions:

Board Height: Full Height

Board Length:10.5" (267 mm)

Board Width: Double Slot

Additional Features:

Supported Technologies

AMD Remote Workstation

AMD Radeon™ Media Engine

AMD Software: PRO Edition

AMD Radeon™ VR Ready Creator

AMD Eyefinity Technology (Professionals)

AMD Radeon™ ProRender

3D Stereo Support: Yes

Software API Support:

DirectX®: 12.0 (feature level 12_1)

OpenGL®: 4.6

OpenCL™: 2.0

Vulkan®: 1.1
