In Stock
Free shipping
Secure checkout with:

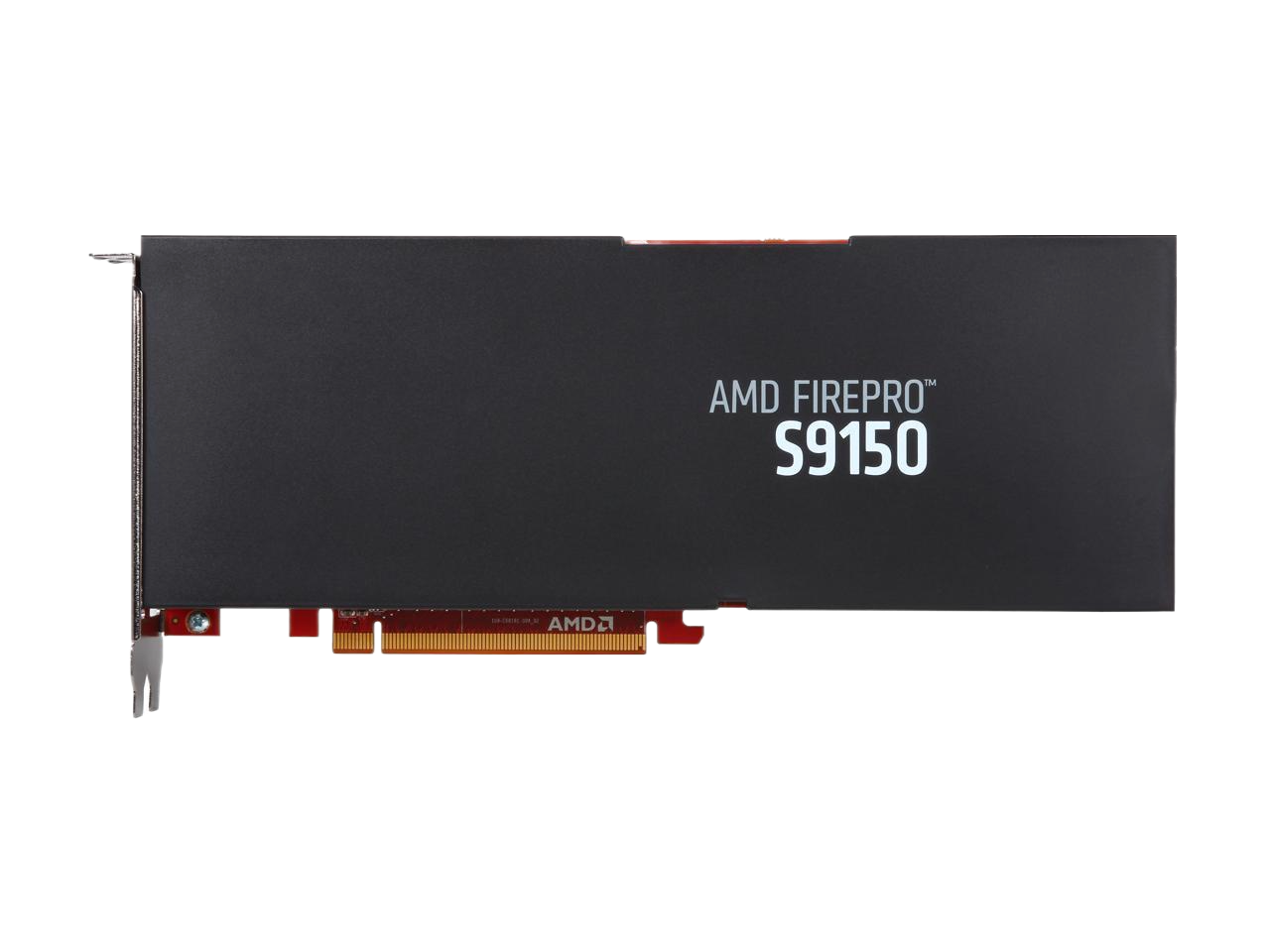

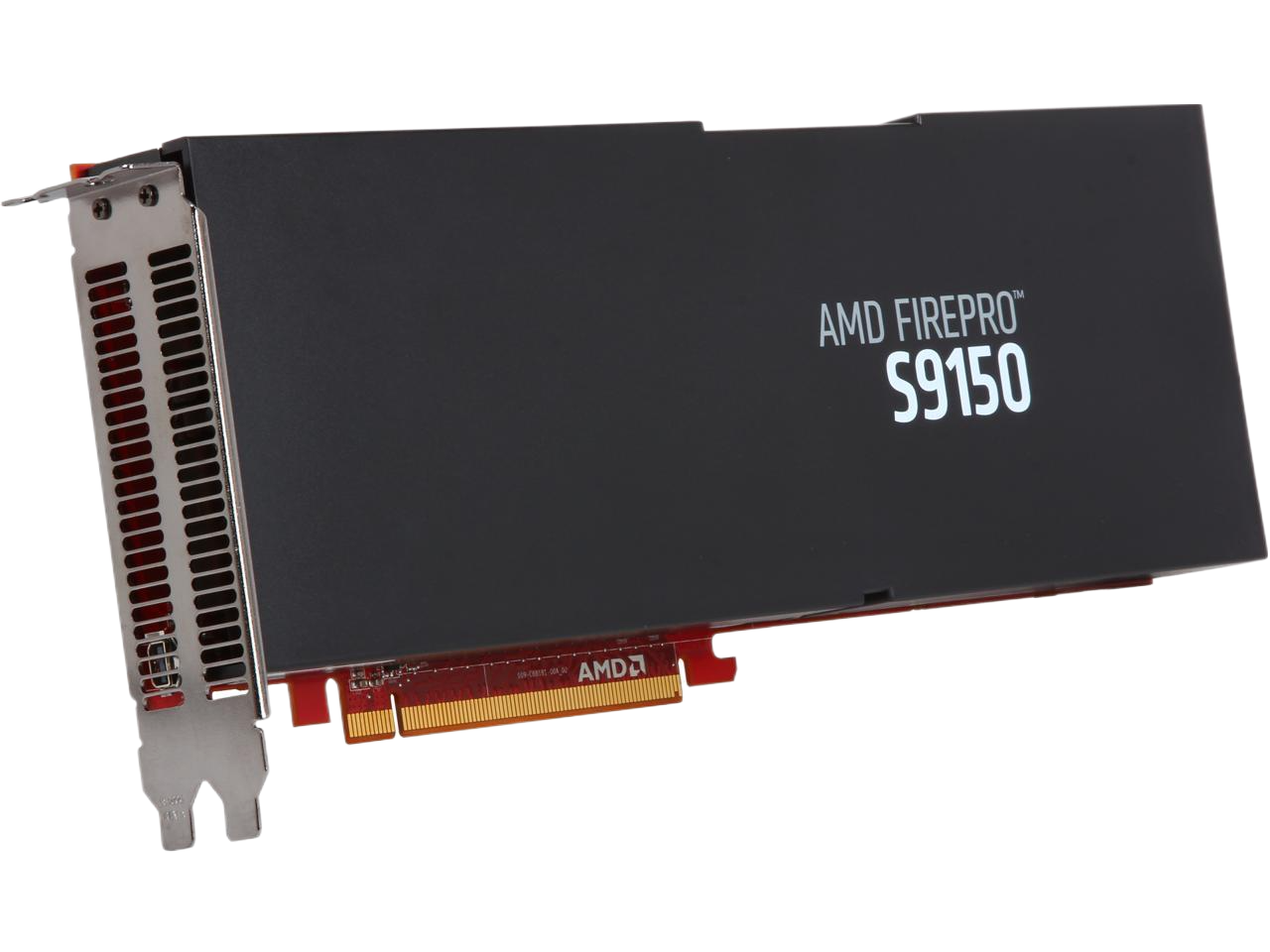

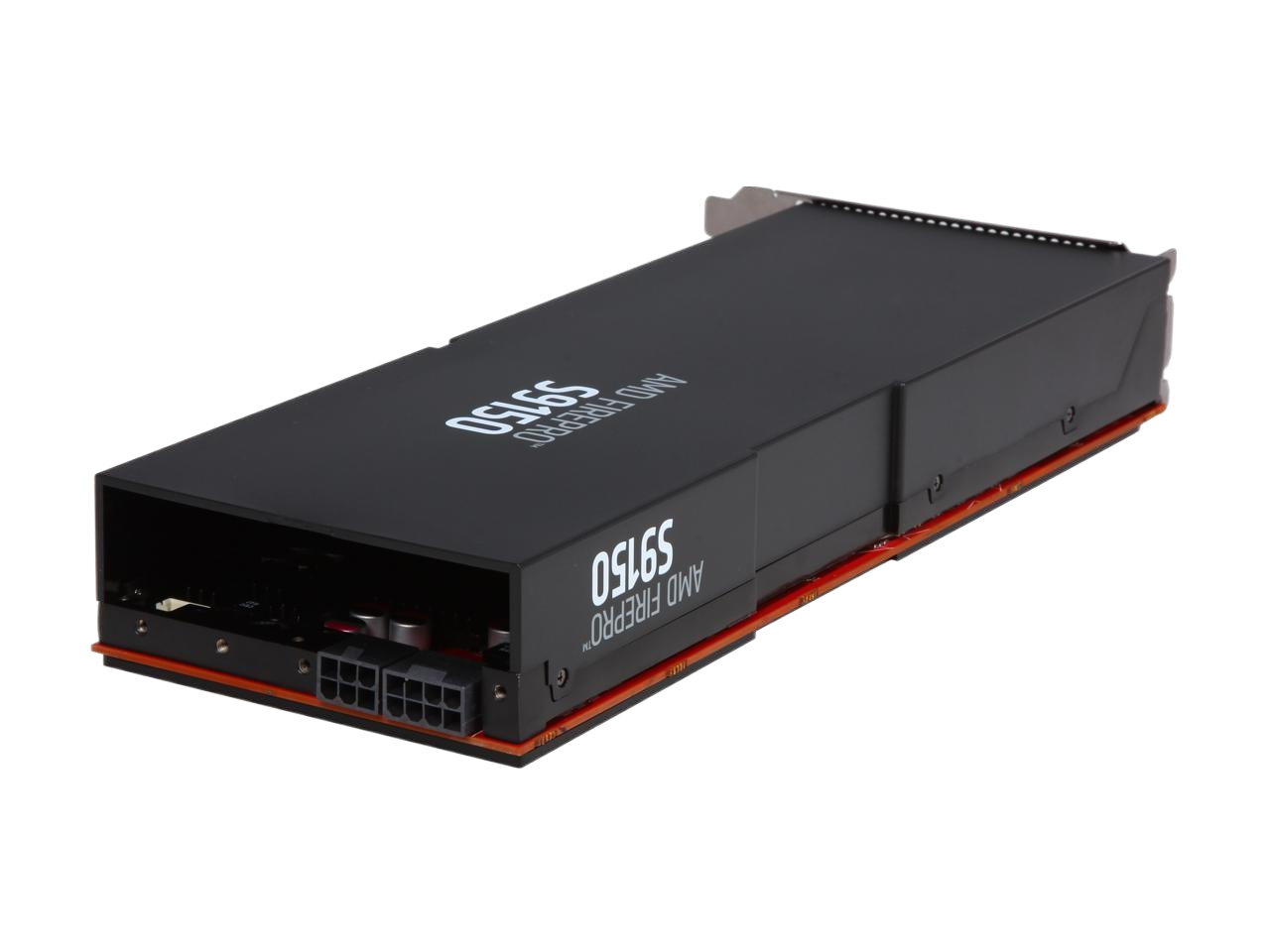

  • FirePro S9150
  • 16GB GDDR5
  • PCI Express 3.0 x16
  • Brand AMD
    Model 100-505884
    Interface PCI Express 3.0 x16
    Chipset Manufacturer AMD
    GPU FirePro S9150
    Core Clock 900MHz
    Stream Processors 2816 Stream Processing Units
    Memory Size 16GB
    Memory Interface 512-bit
    Memory Type GDDR5
    3D API
    DirectX DirectX 12
    OpenGL OpenGL 4.4
    Digital Resolution 4096 x 2160
    Cooler Passive Heatsink
    Operating Systems Supported Windows, Linux
    System Requirements 750 W Power Supply (Suggestion)
    1 x Available PCI-Express X16 Slot
    2048 MB System Memory
    1 x 8-pin AUX Power Connector
    Microsoft Windows 8.1, 7 (32/64-bit), Server 2008 R2 SP1, 2012 R2 or Linux (32/64-bit)
    20 CFM Airflow for Cooling
    Features 28nm GCN (Graphic Core Next) Architecture
    The 28nm GCN Architecture with more efficient process technology puts more transistors in less space, enabling an increase in processing power and graphics performance.
    Each compute unit can execute instructions from multiple kernels at once
    Designed for high-utilization, high-throughput, and multi-tasking
    Dual geometry Engines for faster triangle ("primitive") processing

    AMD Stream Technology
    Powers the ecosystem that enables AMD FirePro S-series server cards to be used for compute-intensive workflows leveraging the parallel processing power of AMD GPUs, and accelerate many applications beyond just graphics.

    Full 30-Bit Display Pipeline
    With a full 30-bit display pipeline producing more than one billion colors (10-bit per RGB component). The AMD FirePro is suited for applications that benefit from accurate color reproduction.

    Power management technology that provides direct control over GPU power usage. Applications enjoy ultimate performance with dynamic clock optimization, while minimizing workstation energy usage.

    AMD Zerocore Power Technology
    Up to 95% idle power reduction by shutting down GPU.

    Error Correcting Code (ECC) Memory
    Correct single bit memory errors in hardware. ECC memory maintains a memory system effectively free from single-bit errors: the data read from each word is always the same as the data that had been written to it, even if a single bit actually stored, or more in some cases, has been flipped to the wrong state. Some non-ECC memory with parity support allows errors to be detected, but not corrected; otherwise errors that may occur are not detected.

    Passive Cooling
    Server-friendly, low-profile design enables maximum device density and carefree maintenance. Cooled solely by internal server airflow, FirePro GPUs using this approach can effectively reduce complexity and maximize reliability for IT organizations requiring server-based visual computing.
    Form Factor & Dimensions
    Form Factor  Full-height, full-length, dual-slot width
    DVI Ports 1
